Home > Products > Latching 250V ON OFF 12MM Push Button Switch Black

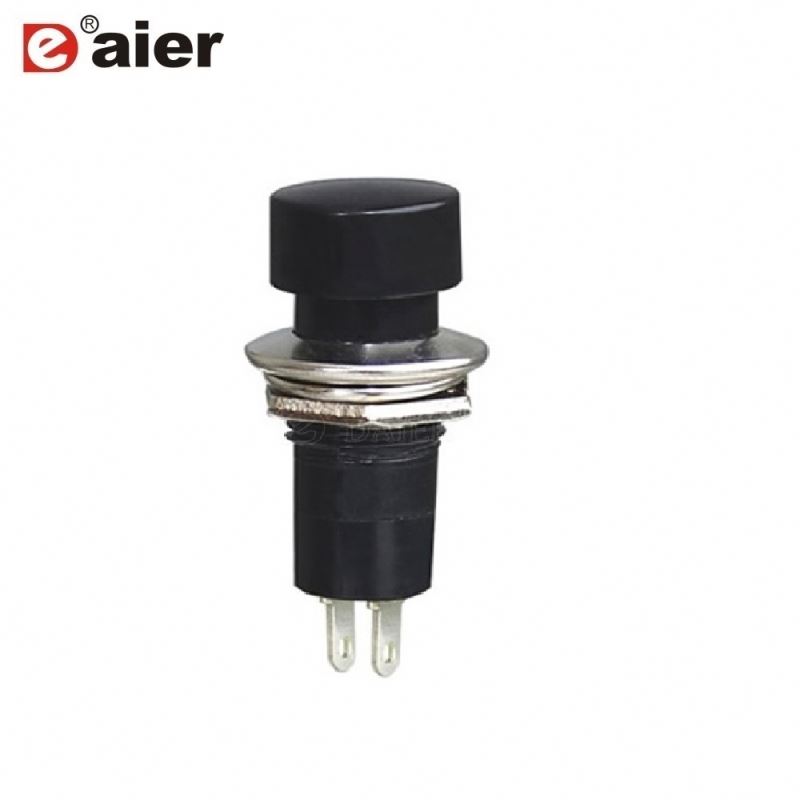

Latching 250V ON OFF 12MM Push Button Switch Black

Click on the image to view the original image

Product：	views：3Latching 250V ON OFF 12MM Push Button Switch Black
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-16A

Protection Level:: IP40

Max. Current:: 1A

Max. Voltage:: 250VAC

Item number:: 12MM Push Button Switch Black

Function:: Latching

Shell Color:: Black

Button Color:: Red, Green, Black

Insulation Resistance:: DC 500V100MΩ Min

Contact Resistance:: 50mΩ Max

Dielectric Strength:: 1500VAC for 1 Min

Electric life:: 10,000 cycles Min

Operation Temperature:: -20°C~+85°C

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 0.7 kg

Package Type:: Latching 250V ON OFF 12MM Push Button Switch Black is 100pcs/bag.

Lead Time:

Quantity(Piece)	1 - 1000	>1000
Est. Time(days)	7	To be negotiated

Product Description

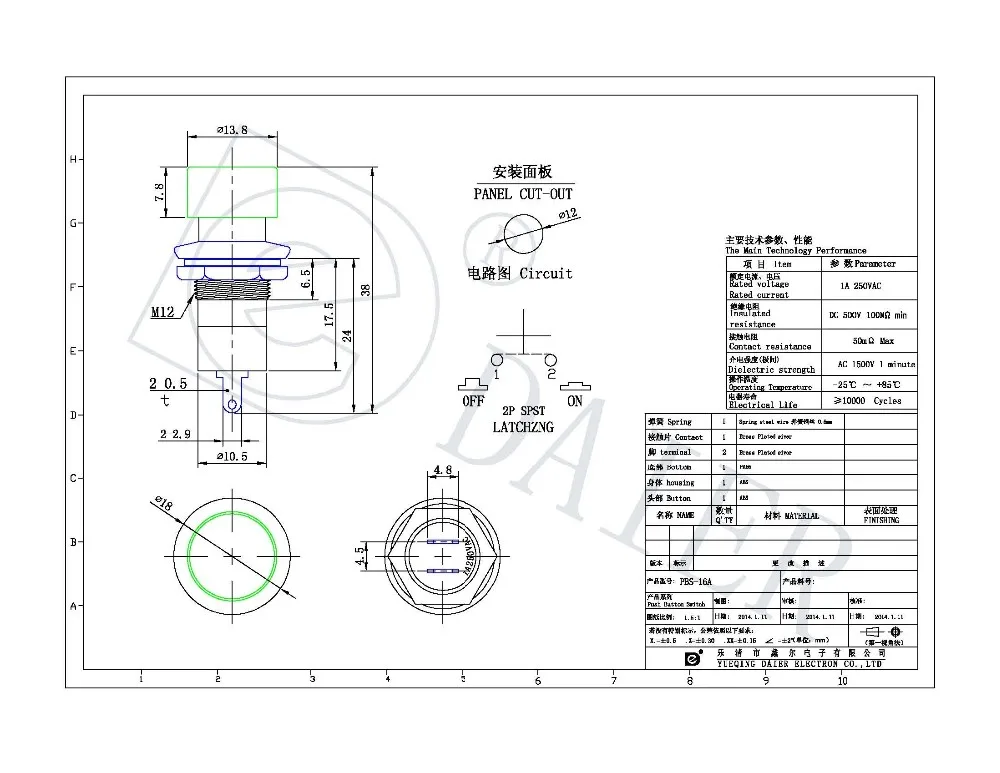

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	Latching 250V ON OFF 12MM Push Button Switch Black
Rating	1A 250VAC
Mounting Size	12mm
IP Class	IP40
Function	Latching
Button Color	Red, Green, Black
Contact Resistance	50 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	1500V AC for 1 min

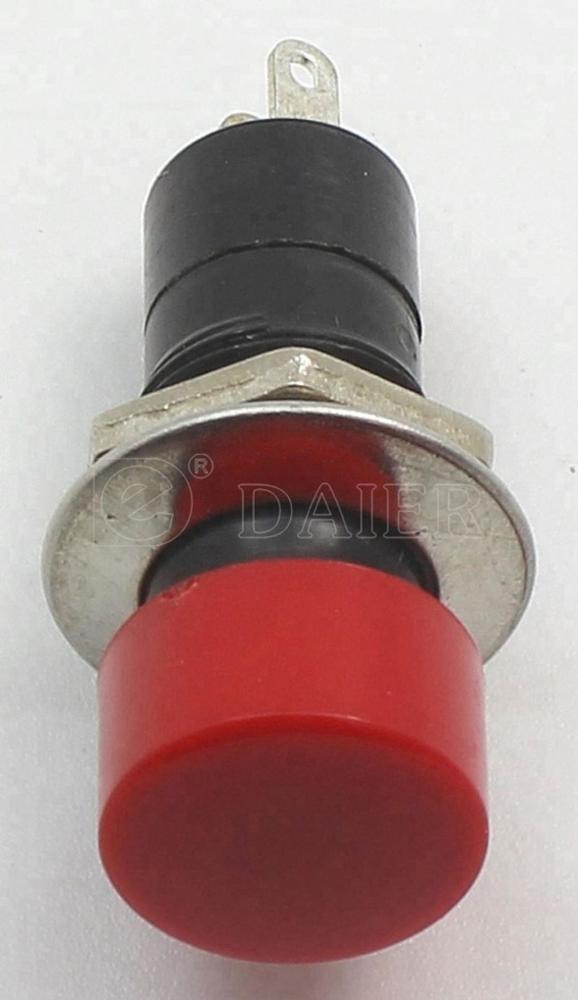

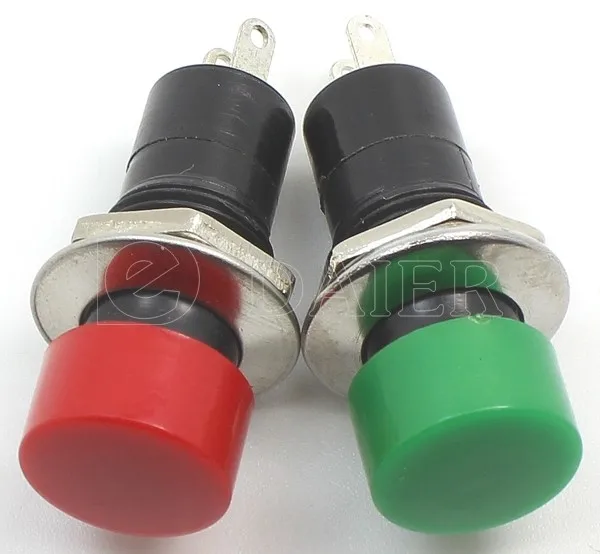

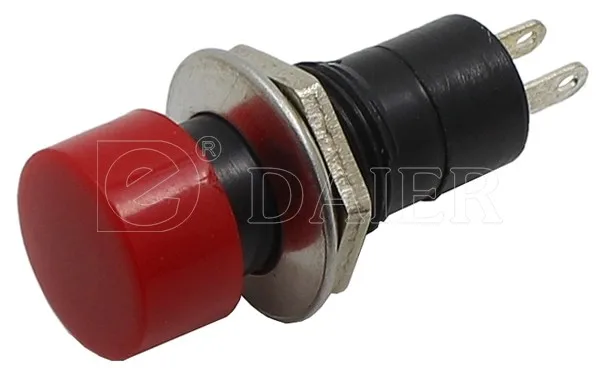

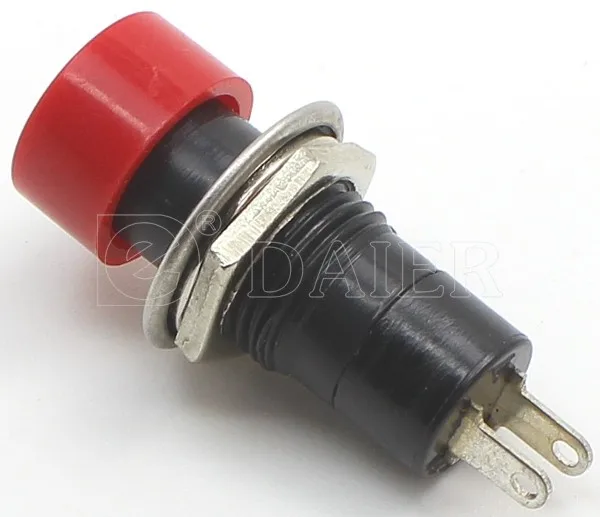

Product Show
