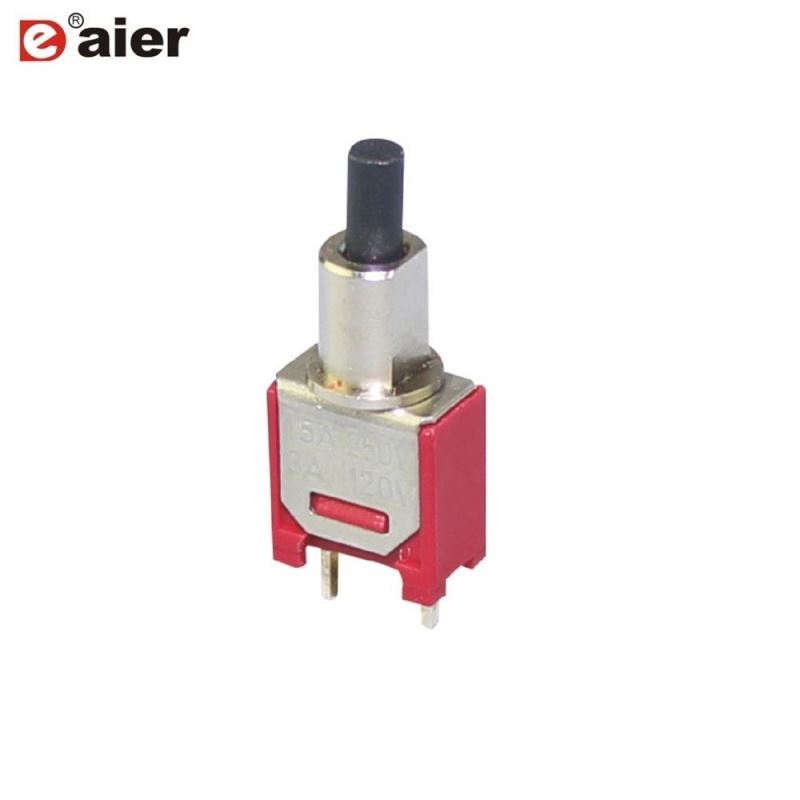

6MM Momentary PCB Mini 2 Pin Push Button Switch

Click on the image to view the original image

Product：	views：106MM Momentary PCB Mini 2 Pin Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: STS-101

Protection Level:: IP40

Max. Current:: 1.5A

Max. Voltage:: 250VAC

Item number:: Mini 2 Pin Push Button Switch

Function:: Momentary

Button color:: Red

Contact Resistance:: 100mΩ max

Insulation Resistance:: 100MΩ min

Operating Force:: 90±15gf

Withstand Voltage:: 500VAC for 1 min

Electric life:: 20,000 cycles

Material:: Plastic

IP Class:: IP40

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.0 kg

Package Type:: 6MM MomentaryPCB Mini 2 Pin Push Button Switch is 100pcs/bag.

Lead Time:

Quantity(Piece)	1 - 500000	>500000
Est. Time(days)	7	To be negotiated

Product Description

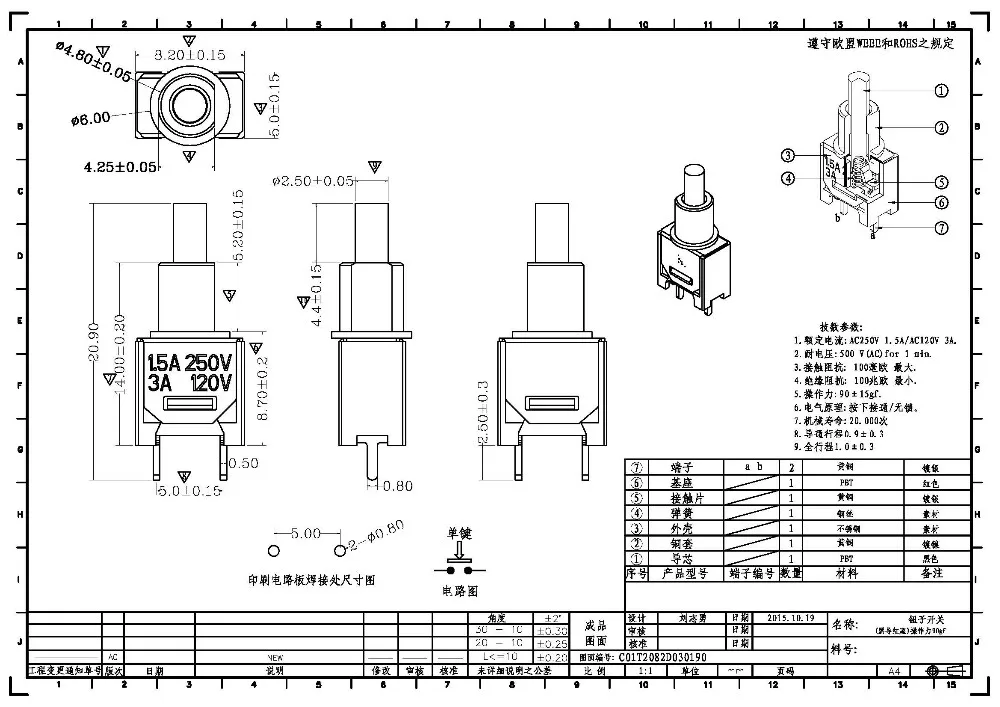

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	6MM MomentaryPCB Mini 2 Pin Push Button Switch
Rating	3A 120VAC/ 1.5A 250VAC
Mounting Size	6mm
IP Class	IP40
Function	Momentary
Button Color	Black color
Contact Resistance	100 mΩ max
Insulation Resistance	≥100MΩ
Dielectric Strength	500V AC for 1 min

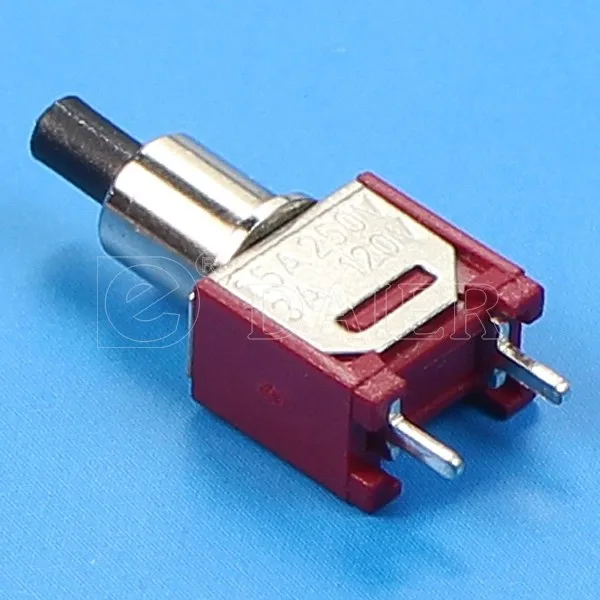

Product Show
