Home > Products > 7MM Soldering Terminal NO Momentary Pushbutton Switch

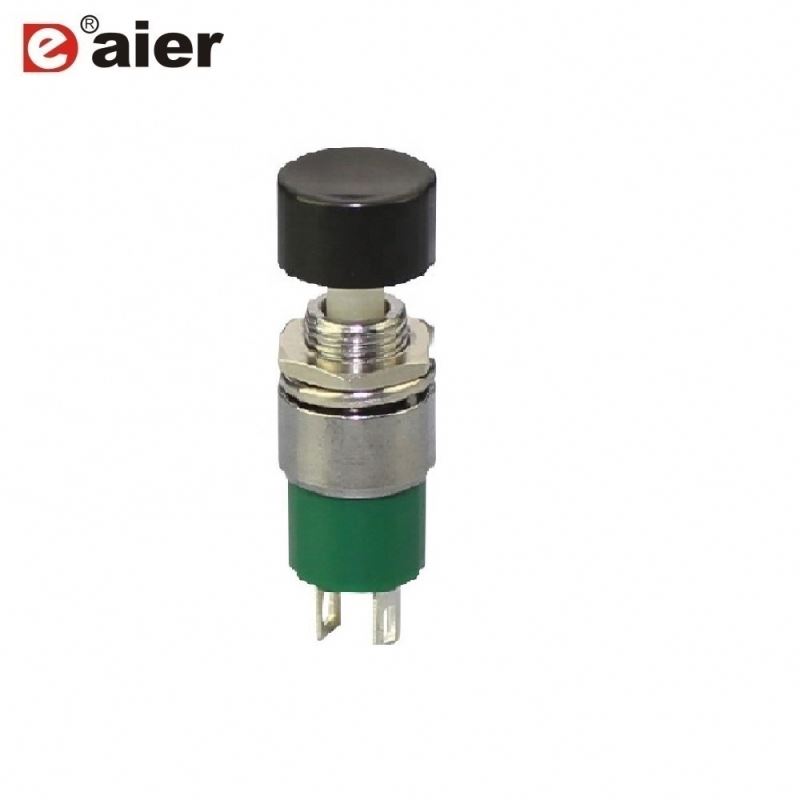

7MM Soldering Terminal NO Momentary Pushbutton Switch
Click on the image to view the original image
Product： views：57MM Soldering Terminal NO Momentary Pushbutton Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
DS-323
Protection Level:
IP40
Max. Current:
1A
Max. Voltage:
250VAC
Item number:
NO momentary pushbutton switch
Function:
Momentary
Button color:
Red, Green,Black
Insulation Resistance:
DC 500V100MΩ Min
Contact Resistance:
50mΩ Max
Dielectric Strength:
1500VAC for 1 Min
Electric life:
10,000 cycles Min
Operation Temperature:
-25°C~+85°C
IP Class:
IP40
Terminal Type:
Soldering Type

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
1.0 kg
Package Type:
7MM Soldering TerminalNO Momentary Pushbutton Switch is 100pcs/bag.
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description

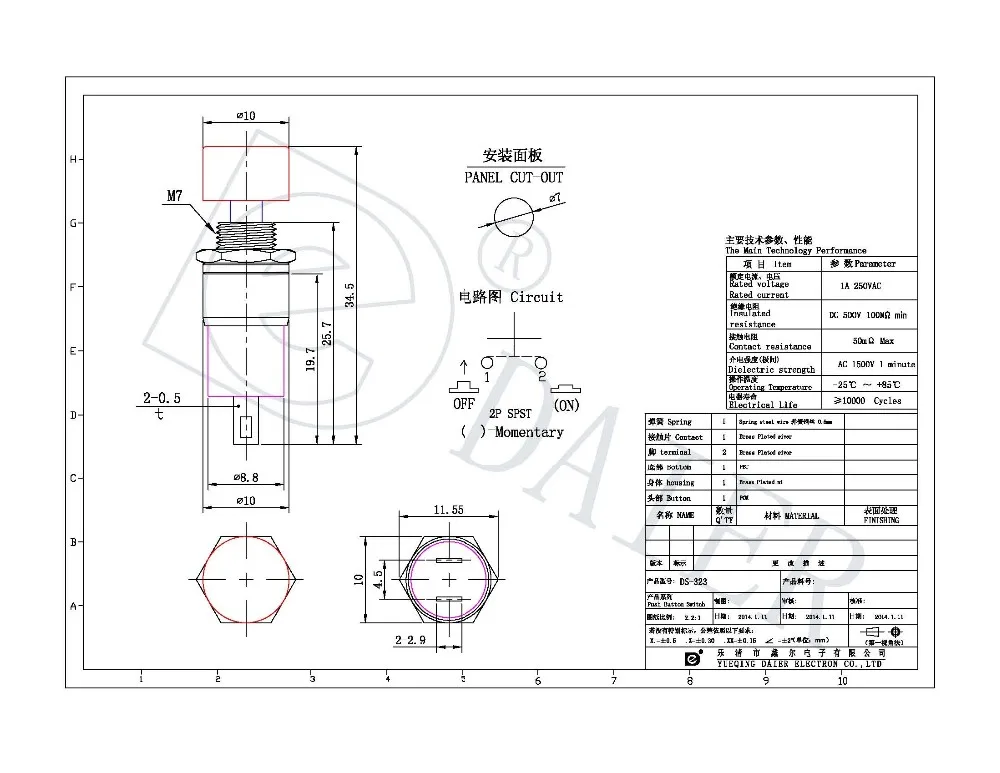

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name
7MM Soldering TerminalNO Momentary Pushbutton Switch
Rating
1A 250VAC
Mounting Size
7mm
IP Class
IP40
Function
Momentary
Button Color
Red, Green, Black
Contact Resistance
50 mΩ max
Insulation Resistance
≥100MΩ
Dielectric Strength
1500V AC for 1 min

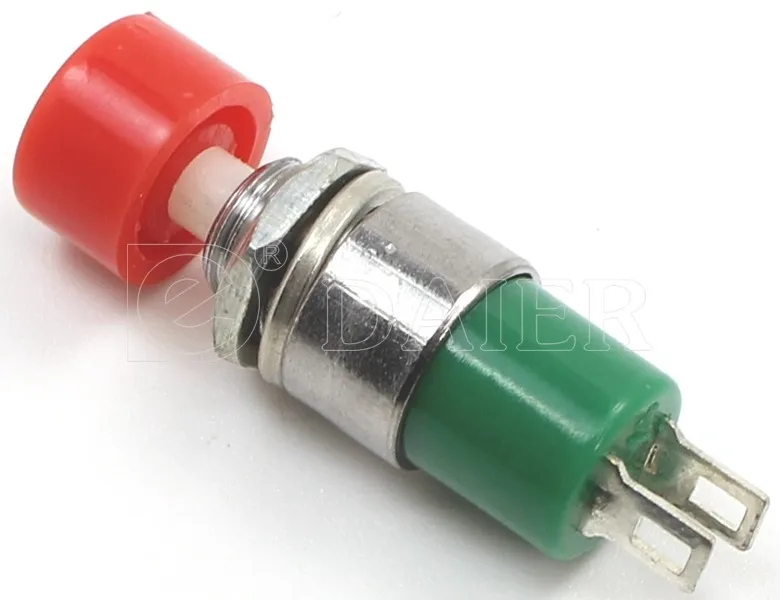

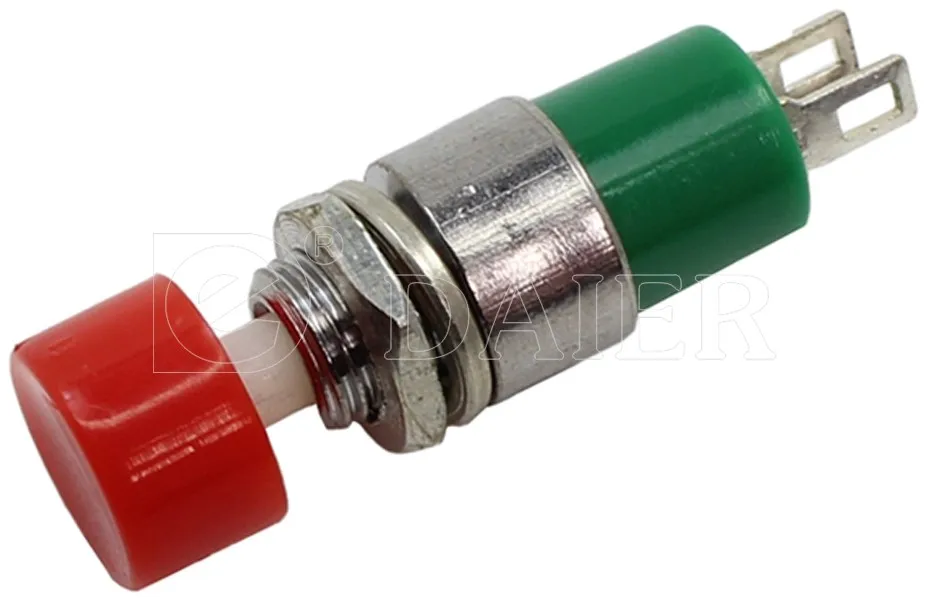

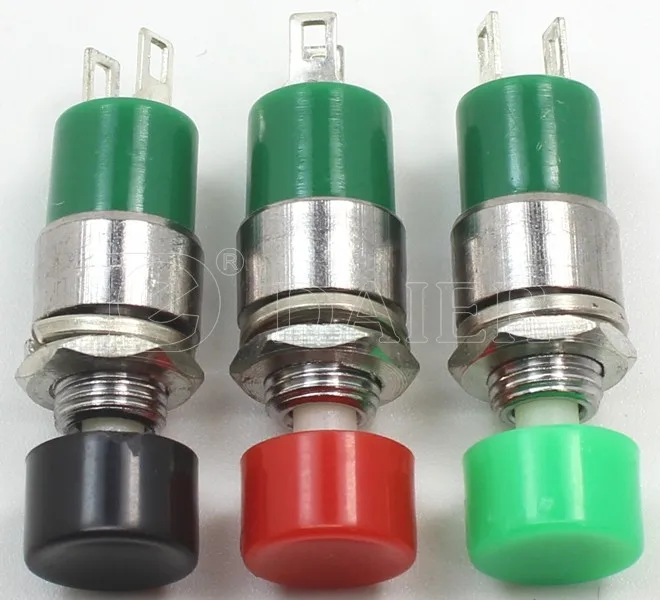

Product Show
