High Quality 16mm Square Led Air Switch Push Button
Click on the image to view the original image
Product： views：5High Quality 16mm Square Led Air Switch Push Button
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
A16-22SF-N
Protection Level:
IP40
Max. Current:
3A
Max. Voltage:
250VAC
Item number:
16mm Push Button Switch
Function:
Momentary
Led color:
Red Yellow White Blue Green
Contact Resistance:
50 mΩ max
Operating Force:
2.5-4N
Dielectric Strength:
2000VAC
Electric life:
50,000 cycles
Operating Temperature:
-20°C ~+55°C
Material:
Plastic
IP Class:
IP40

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X13X6 cm
Gross weight per batch:
1.1 kg
Package Type:
A16-22SF-N is 100PCS/BAG
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Our adventage
Product Description
Product Name
High Quality 16mm Square Led Push Button Light Switch
Rating
3A  250VAC
Mounting Size
16mm
IP Class
IP40
Function
Momentary(Latching Available)
Led Type
Single Color / Dual Color

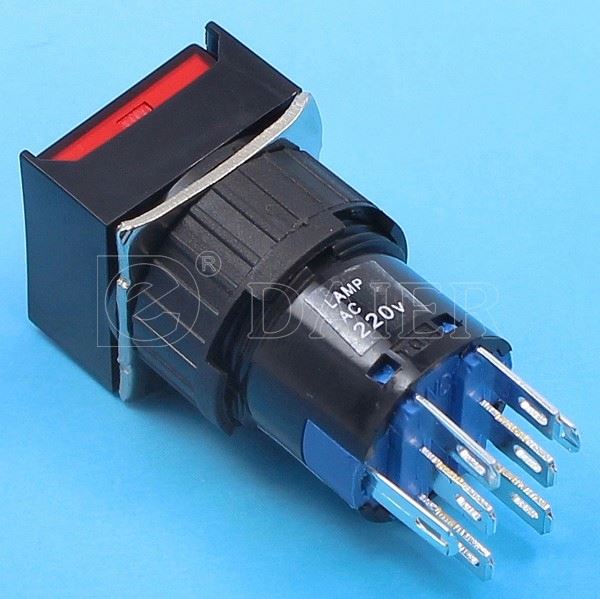

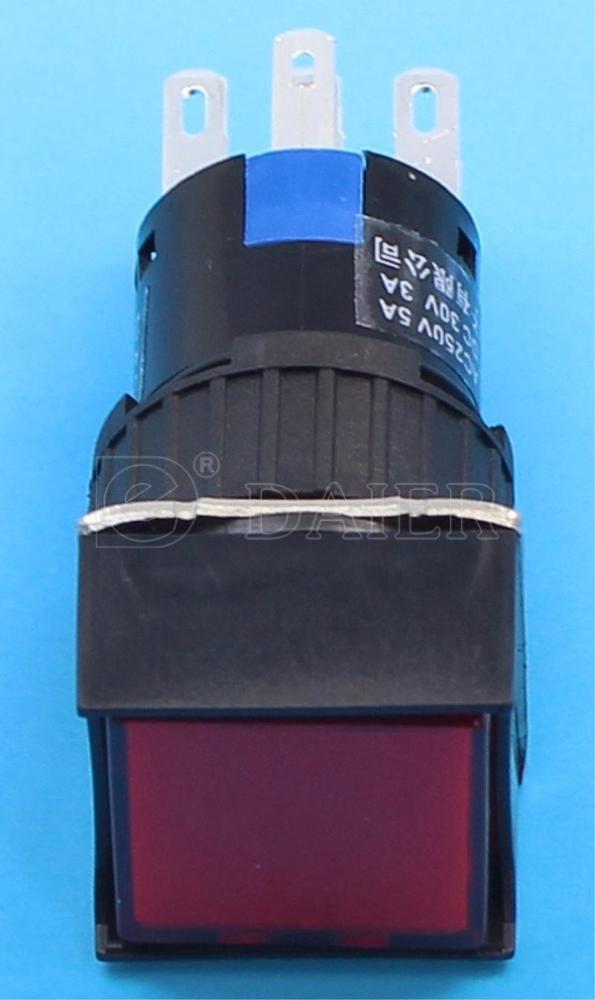

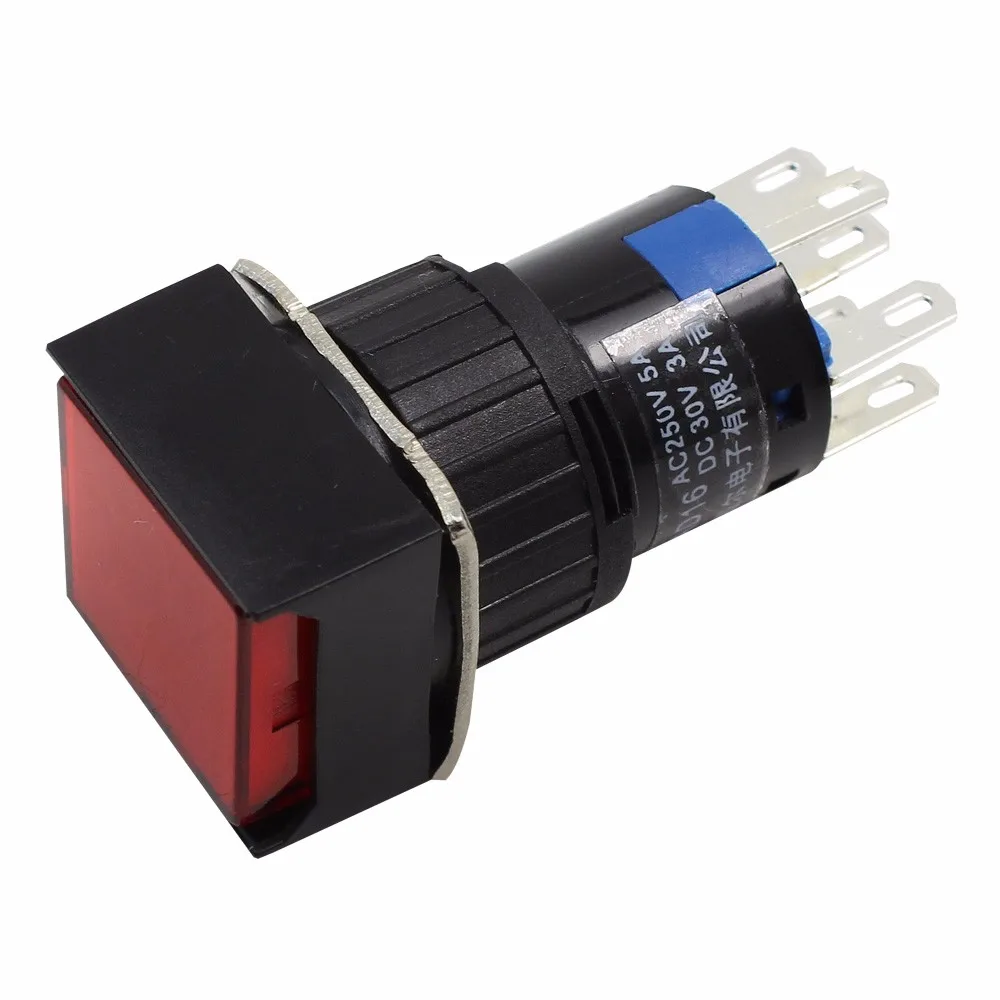

Products Show

A16-22SF-N

Specifications:
1. Rating: 3A 250VaC
2. Function: Momentary(Latching available)
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles

8. Operating Force: 2.5-4N


Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
