- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-422AD
- Protection Level:
- IP40
- Max. Current:
- 10A
- Max. Voltage:
- 250VAC
- Item number:
- LatchingIlluminated Power LogoPush Button Switches
- Body Color:
- Black
- Function:
- Latching IlluminatedPush Button Switches
- Material:
- Plastic
- Operational Temperature:
- -25°C ~ +85°C
- Contact Resistance:
- 50MΩ max
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- AC 1500V 1Minute
- Electric life:
- ≥10,000 cycles
- Approved:
- CQC. Rohs. CE
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:
- PBS-422AD 22.2mmPlastic Round Button 3Pin LatchingIlluminated Power Logo On Off Push Button Switchesis 100pcs/bag
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated

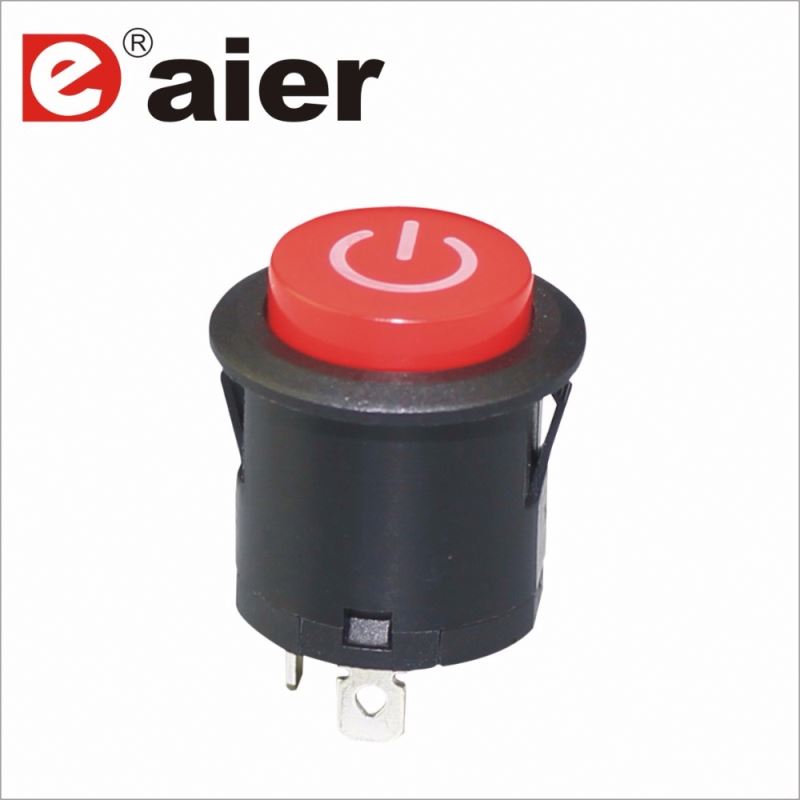

PBS-422AD
Specifications:
1. Rating: 10A 250VAC
2. Function: Latching On Off Push Button Switches
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: AC 1500V 1 Minute
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles Min
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
