- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-37
- Protection Level:
- IP67
- Max. Current:
- 0.5A
- Max. Voltage:
- 250VAC
- Item number:
- High Quality 12mm Mini Round Yellow Switch Pushbutton
- Body Color:
- Black/White
- Function:
- Door Switch
- Material:
- Plastic
- Operational Temperature:
- -40°C ~ +85°C
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- ≥1000Ω
- Dielectric Strength:
- 2000V RMS 50~60Hz
- Electric life:
- 50,000 cycles
- approved:
- CQC. Rohs. CE
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 0.4 kg
- Package Type:
- High Quality Push OFF 3A 125VAC Micro Refrigerator Door Switch is 100pcs/box.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500000 >500000 Est. Time(days) 7 To be negotiated

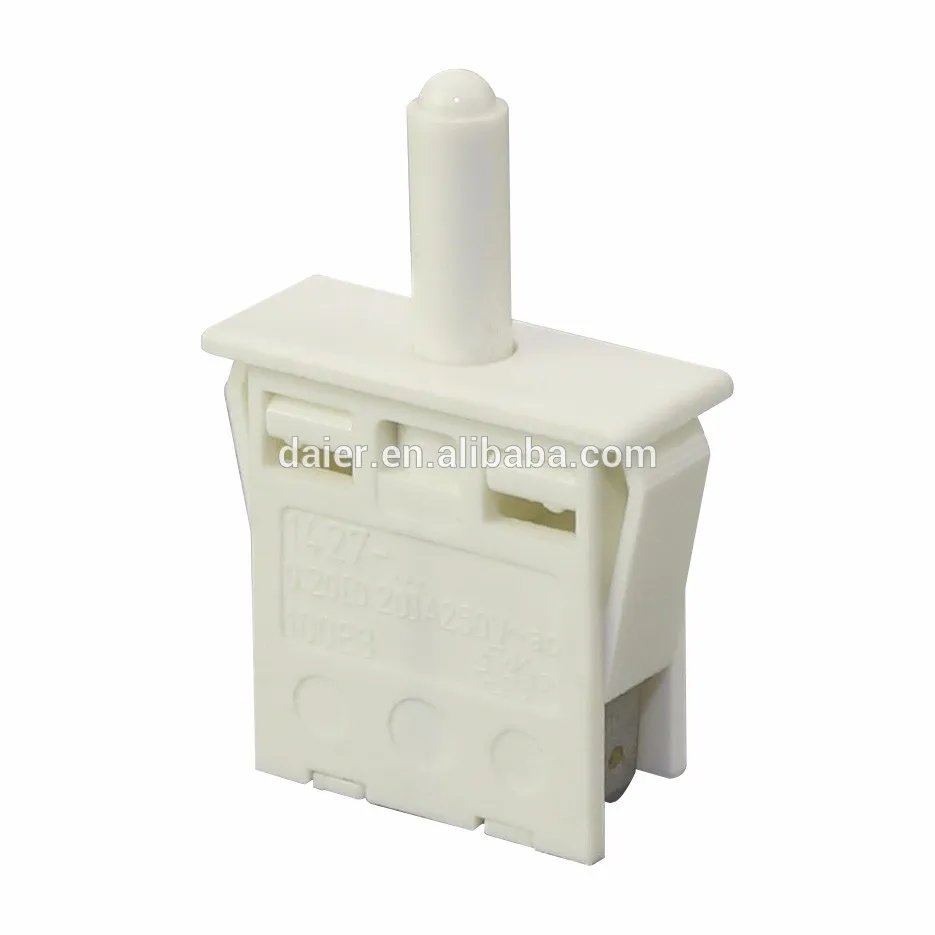

PBS-37
Specifications:
1. Rating: 3A 125VAC
2. Function: Door Switch
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:1000Ω min
5. Dielectric Strength:2000V AC RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Electrical Life: 50,000 Cycles
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
KW1-103-5
Micro door switch with bent lever,solder terminals

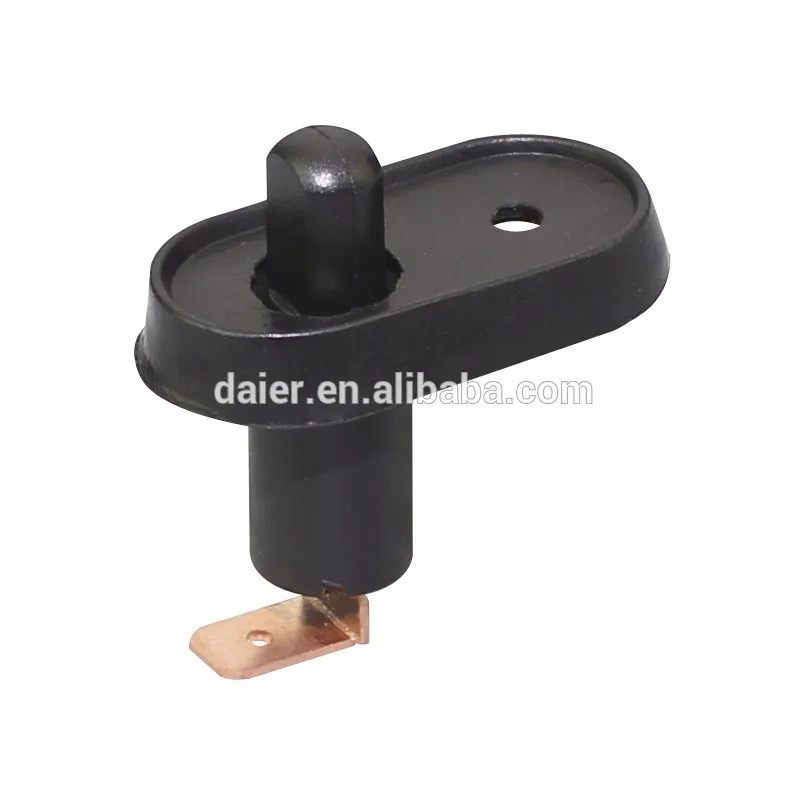

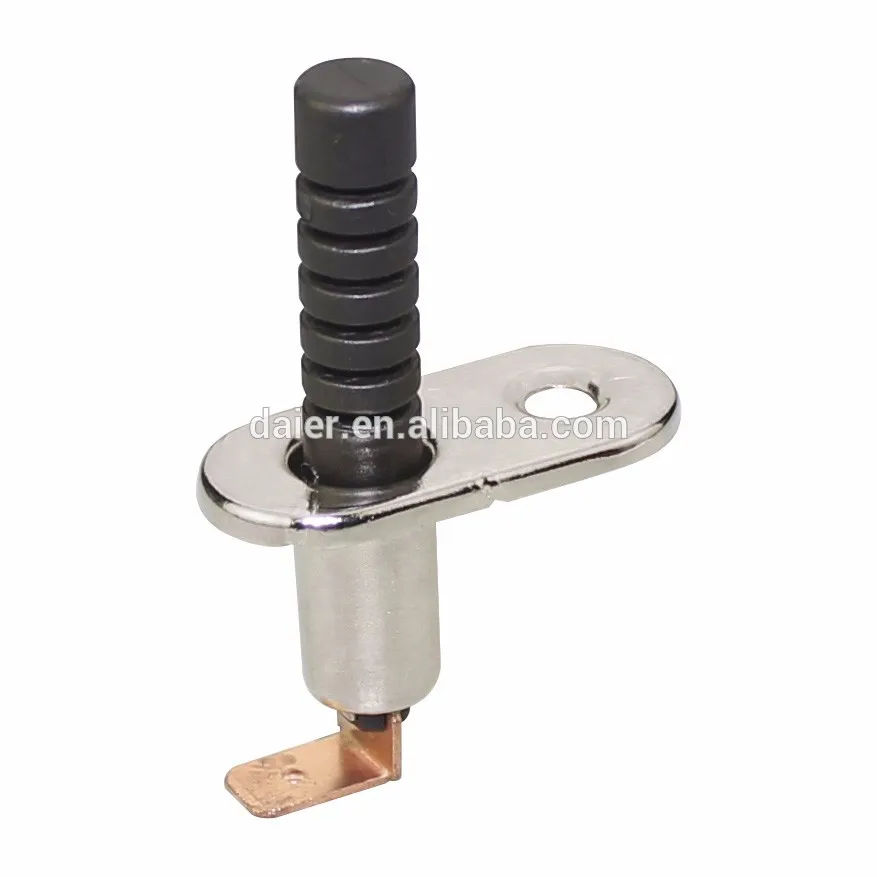

ASW-18-3
Bonnet door switch

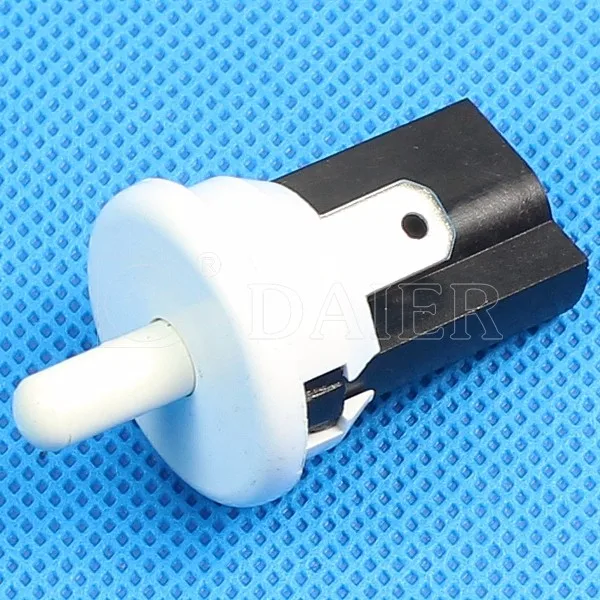

PBS-35C
PBS-35C Refrigerator door switch/cabinet door switch
