Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS8.5X8.5-A
- Protection Level:
- IP40
- Max. Current:
- 0.1A
- Max. Voltage:
- 30VDC
- Item number:

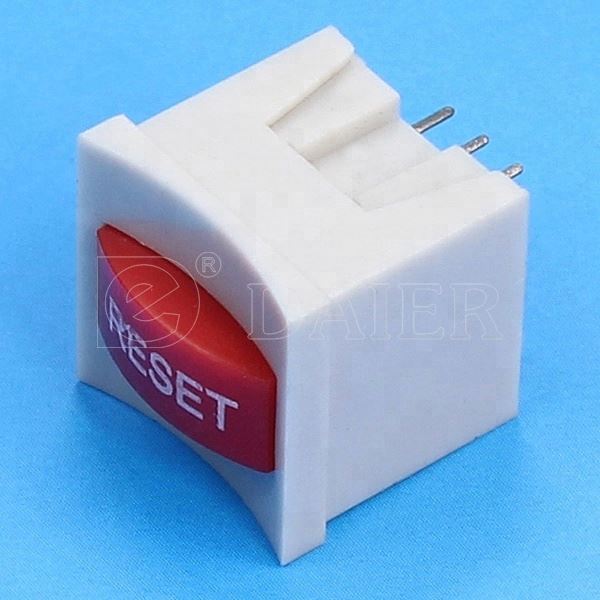

- Double Push Button Switch Push
- Function:
- Latching
- Body Color:
- Grey
- Button Color:
- Red
- Insulation Resistance:
- 100MΩ Min
- Contact Resistance:
- 30mΩ Max
- Dielectric Strength:
- 250VAC for 1 Min
- Electric Life:
- 10,000 cycles Min
- Operation Temperature:
- -25°C~+70°C
- Operating Force:
- 200±50gf
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X10 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:

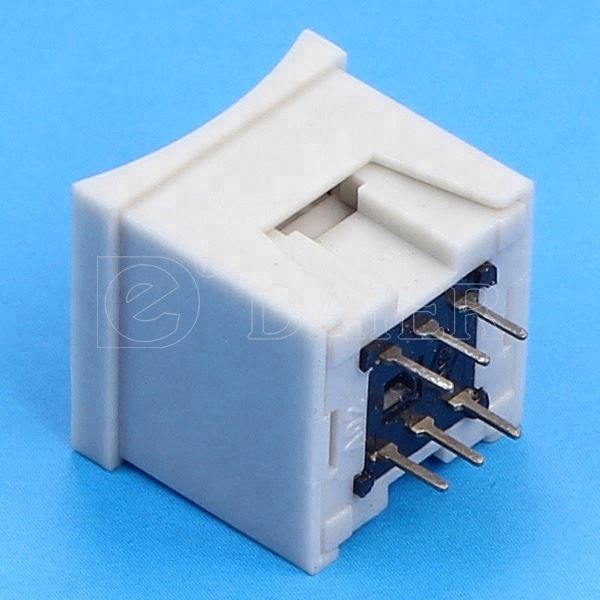

- 6PIN Latching ON ON Double Push Button Switch Push is 100pcs/bag.
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
