Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L16H-11NM-SB
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:

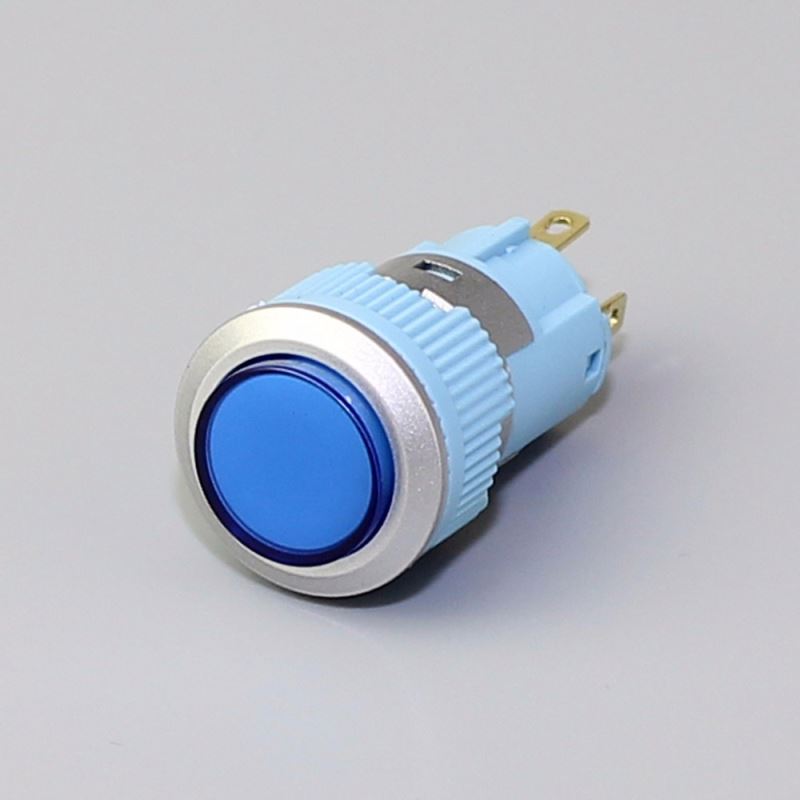

- 16mm High Button Lens Illuminated Push Button on/of
- Function:
- Momentary
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 2.5-4N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- L16H-11NM-SB power on-off switchis 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 400 >400 Est. Time(days) 7 To be negotiated
