Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L12F-10NM-AR
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item number:

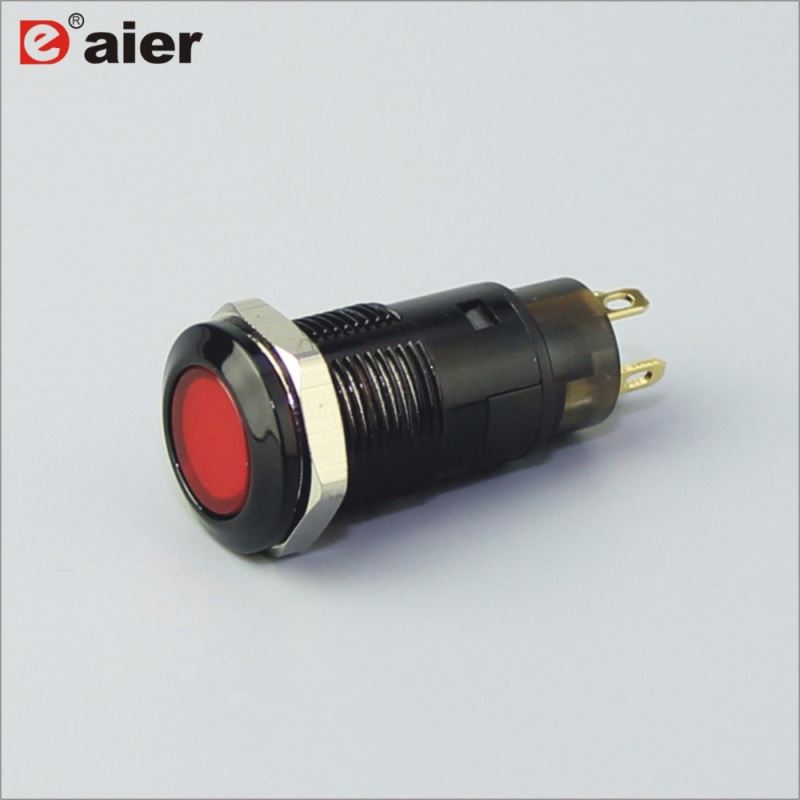

- 12mm Flat Red Button Black Body Momentary Plastic Pushbutton Switch
- Function:
- Momentary
- Led color:
- Red Yellow White Blue Green
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 200,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.1 kg
- Package Type:
- L12F-10NM-AG is 40pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 400 >400 Est. Time(days) 7 To be negotiated
