Home > Products > Mini Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch

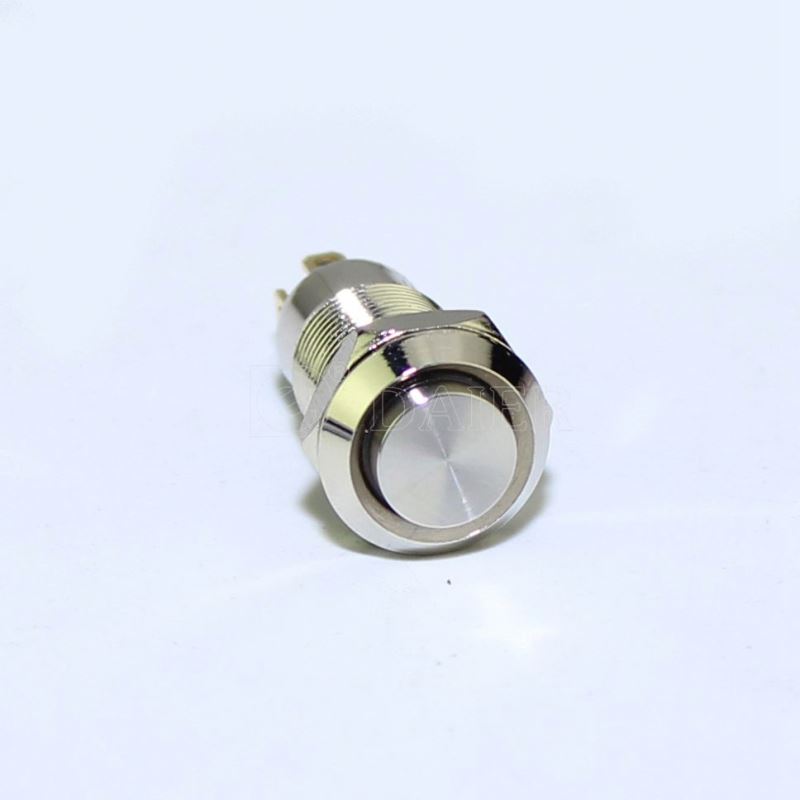

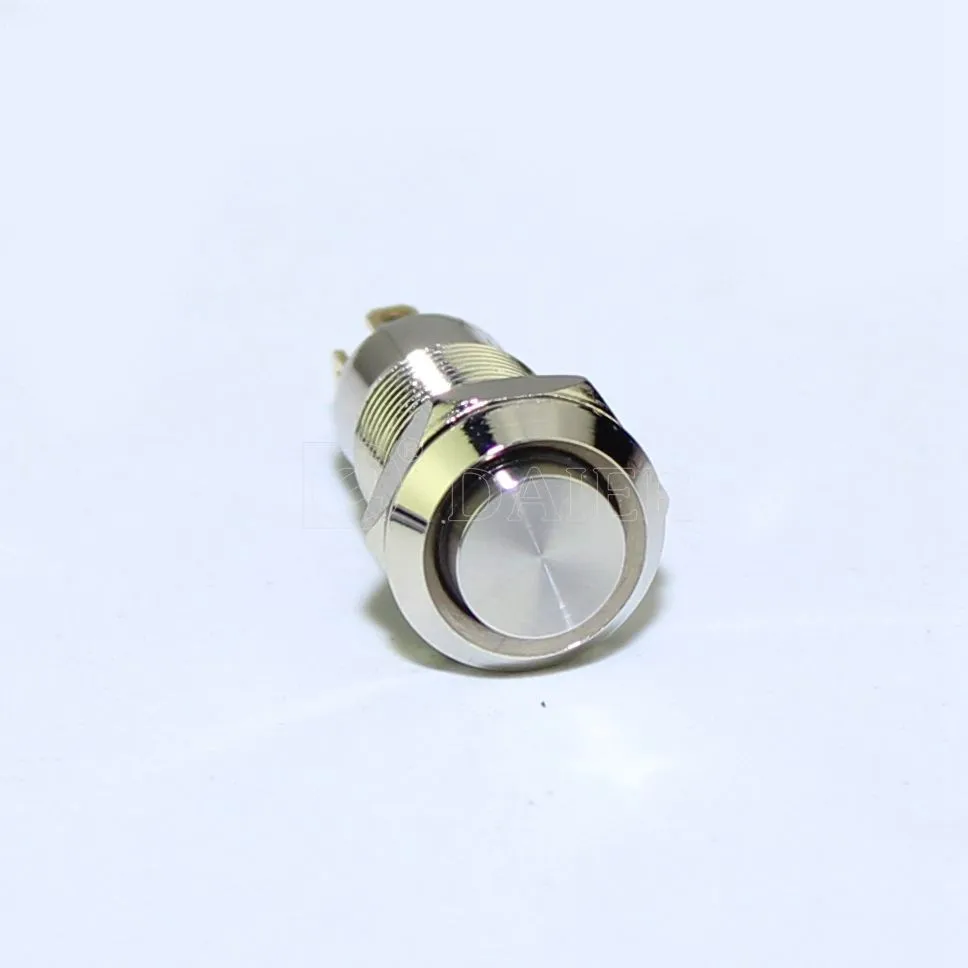

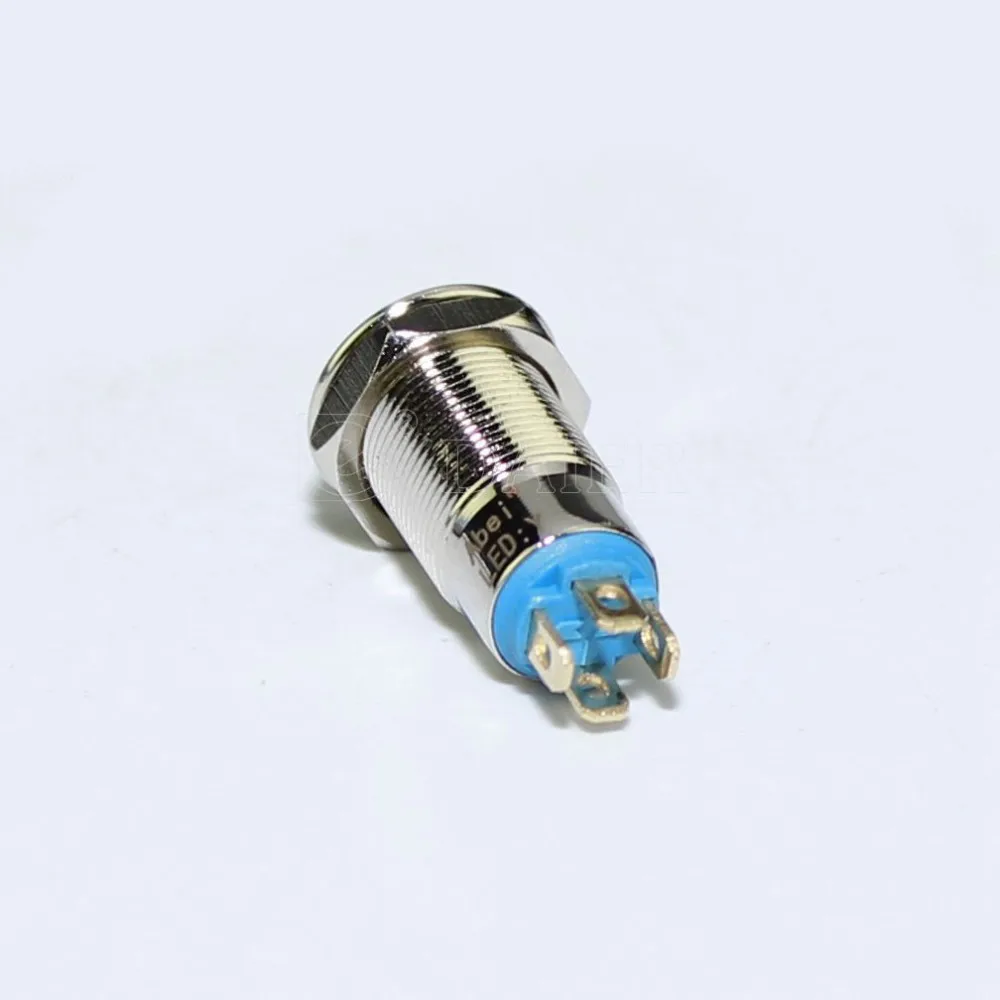

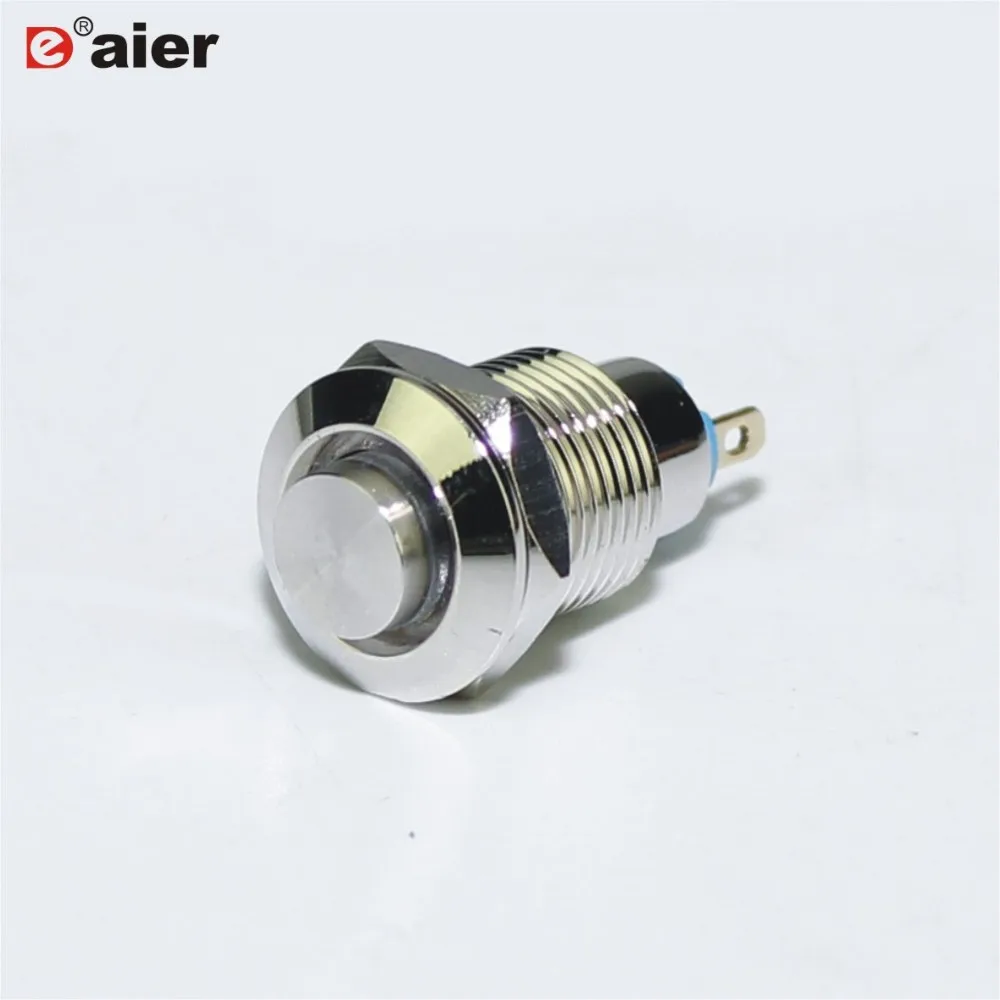

Mini Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch
Click on the image to view the original image
Product： views：2Mini Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
GQ-8H-10EL
Protection Level:
IP67
Max. Current:
2A
Max. Voltage:
36VDC
Item number:
Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch
Rating:
2A 36VDC
Material:
Stainless Steel
Function:
ON-OFF
Housing Color:
Silver
LED Color:
Red/Green/Yellow/Blue/White
LED Voltage:
2/6/12/24/220V
Terminal Option:
Solder Terminal
Mounting Hole Size:
8MM
Free Sample:
Available

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
22X15X10 cm
Gross weight per batch:
0.5 kg
Package Type:
100 Pcs A Box Of Mini Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)7To be negotiated
Product Description
Product Name
Mini Waterproof 8MM SPST 4 Pin Locking Anti-vandal LED Push Button Switch
Rating
2A  36VDC
Function
SPST ON-OFF
Button Size
8mm
Contact Resistance
50mΩ max
Dielectric strength
2,000VAC 1 minute
Operating Temperature
-25℃~+85℃
Insulation Resistance
1,000mΩ min
OEM or ODM
Available  led push button switch
Products Show

Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.


The waterproof push button switch are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).


It offers multiple color ring illumination options,and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.


It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.


For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.


These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.


We can"t talk out their advantage in a few words, but they are more and more popular in the world.
