GQ25F-11 25mm SPDT 1NO+1NC push button switch, waterproof push button switch 220V

Click on the image to view the original image

Product：	views：3GQ25F-11 25mm SPDT 1NO+1NC push button switch, waterproof push button switch 220V
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: GQ25F-11

Protection Level:: IP67 IK10

Max. Current:: 5A

Max. Voltage:: 250VAC

Standard:: IEC standard

Panel size:: 25mm

Voltage:: 250VAC

Certificate:: CE,Rohs,CQC

Button Color:: silver, black

Switch type:: Push button switch

Material:: Stainless Steel/Aluminum/Chrome-plated brass

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X10X10 cm

Gross weight per batch:: 0.9 kg

Package Type:: 20pcs/box.for GQ25F-11 25mm SPDT 1NO+1NC push button switch, waterproof push button switch 220V

Lead Time:

Quantity(Piece)	1 - 400	>400
Est. Time(days)	7	To be negotiated

Our adventage

Product Description

Product Name	GQ25F-11 25mm SPDT 1NO+1NC push button switch, waterproof push button switch 220V
Rating	5A 250VAC push button switch
Funtion	1NO+1NC push button switch push button switch
Button Color	Silver/ Black push button switch
Electonical Life	50,000 Cycles push button switch
The Front Shape	Flat Shape push button switch

Products Show

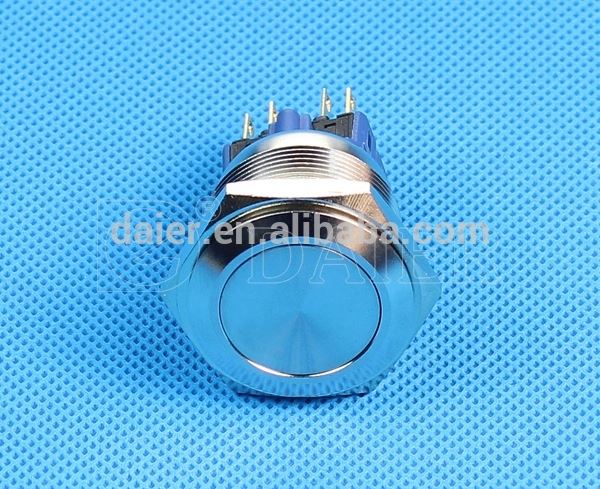

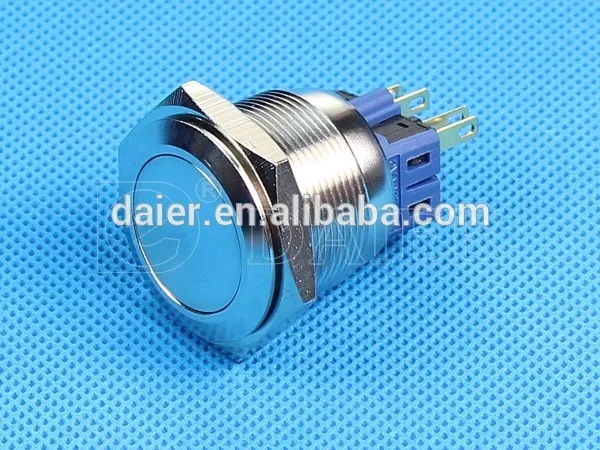

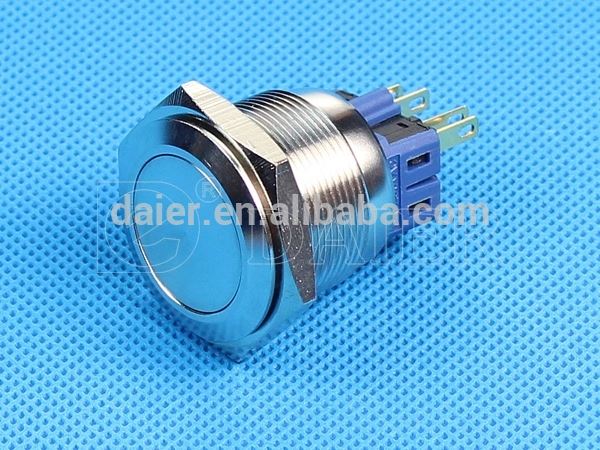

GQ25F-11 push button switch

Metal Push Button Switch Series:
1.nice appearence,free from rust,metal body with bright led lamp, Sliver contact, Gilded Solder terminal
2.5A 250VAC push button switch push button switch
3.Contact resistance:≤50mΩ
4. Insulation resistance: ≥1000MΩ
5. Dielectric Intensity: 2000VAC
6. IP Degress: IP67 ,IK10
7. Electrical life: 50,000 Cycles

GQ25F-11ush button switch

Metal Push Button Switch Series: Widely used in home application,electronic equipment,automatic machine,communication equipment,car electron,apparatus and instrument electric motion tool etc.
