Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- GQ22F-11E
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- Metal Push Button Switch
- Electric life:
- 50,000 cycles
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- 500V DC1000MΩ Min
- Dielectric Strength:
- 2000VAC
- Operating Temperature:
- -20°C ~+55°C
- Function:
- SPDT 1NO+1NC
- Operational Force:
- 5N Max
- Material:
- Stainless Steel
- Led Lamp Color:
- Red/Green/Blue/White/Yellow/Orange
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- GQ22F-11EAnti-Vandal Push Button Switch is 20pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200 >200 Est. Time(days) 7 To be negotiated

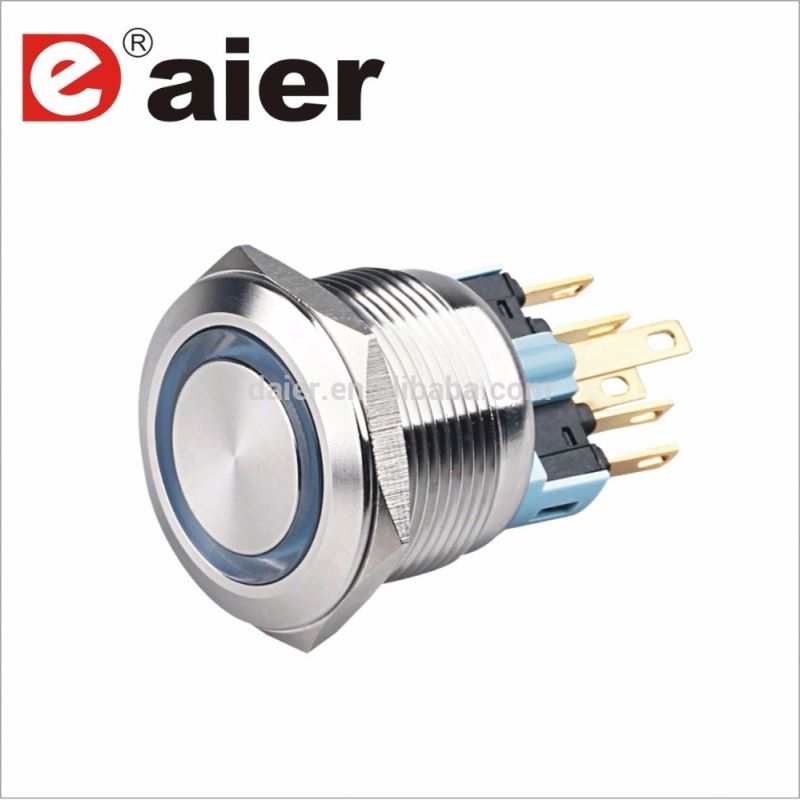

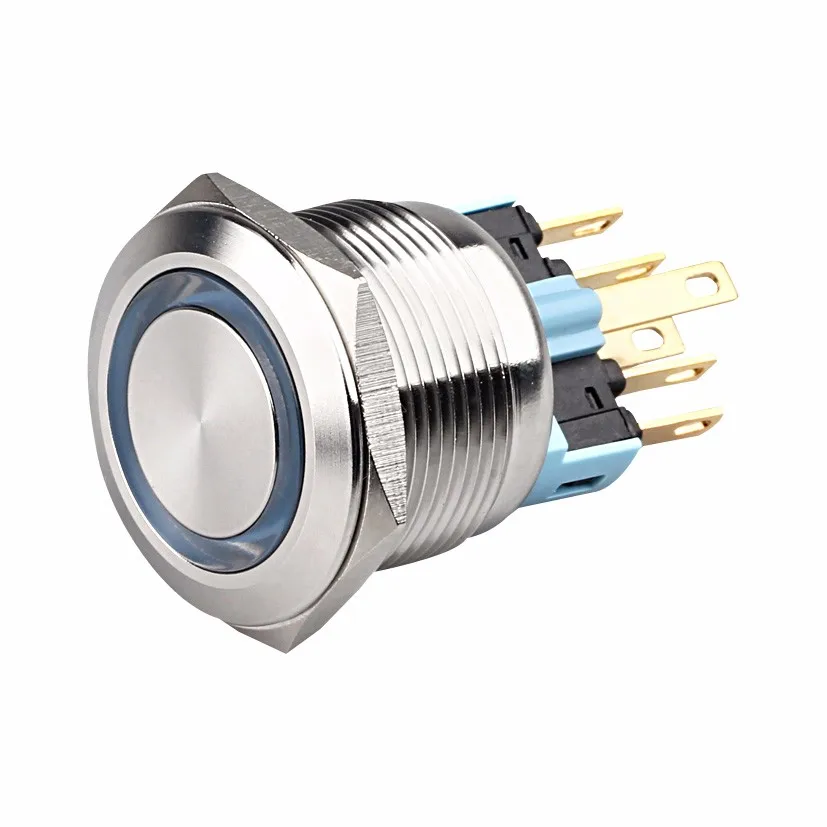

GQ22F-11E
Specifications:
1. Rating: 5A 250VaC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function:SPDT1NO+1NC
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
