Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-28B/N
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- acoustic pedestrian push button
- Function:
- 1NO Momentary Metal Push Switch
- Operational Force:
- 5N Max
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- 500V DC1000MΩ Min
- Dielectric Strength:
- 2000V RMS 50~60Hz
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Stainless Steel / Copper Plating
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 0.8 kg
- Package Type:
- PBS-28B acoustic pedestrian push button is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 400 >400 Est. Time(days) 7 To be negotiated
PBS-28B
Specifications:
1. Rating: 5A 250VaC
2. Function: 1NO Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000V RMS 50~60Hz
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
Stainless Steel Plate for 19mm metal push button switch
Stainless Steel Plate for 19mm metal push button switch
Connector wires for metal switches
19mm Metal push button switch plastic connector
19mm Ball Shape Button Ring Lamp IP67 SPST Momentary Screw Terminal Metal Push Button Switch

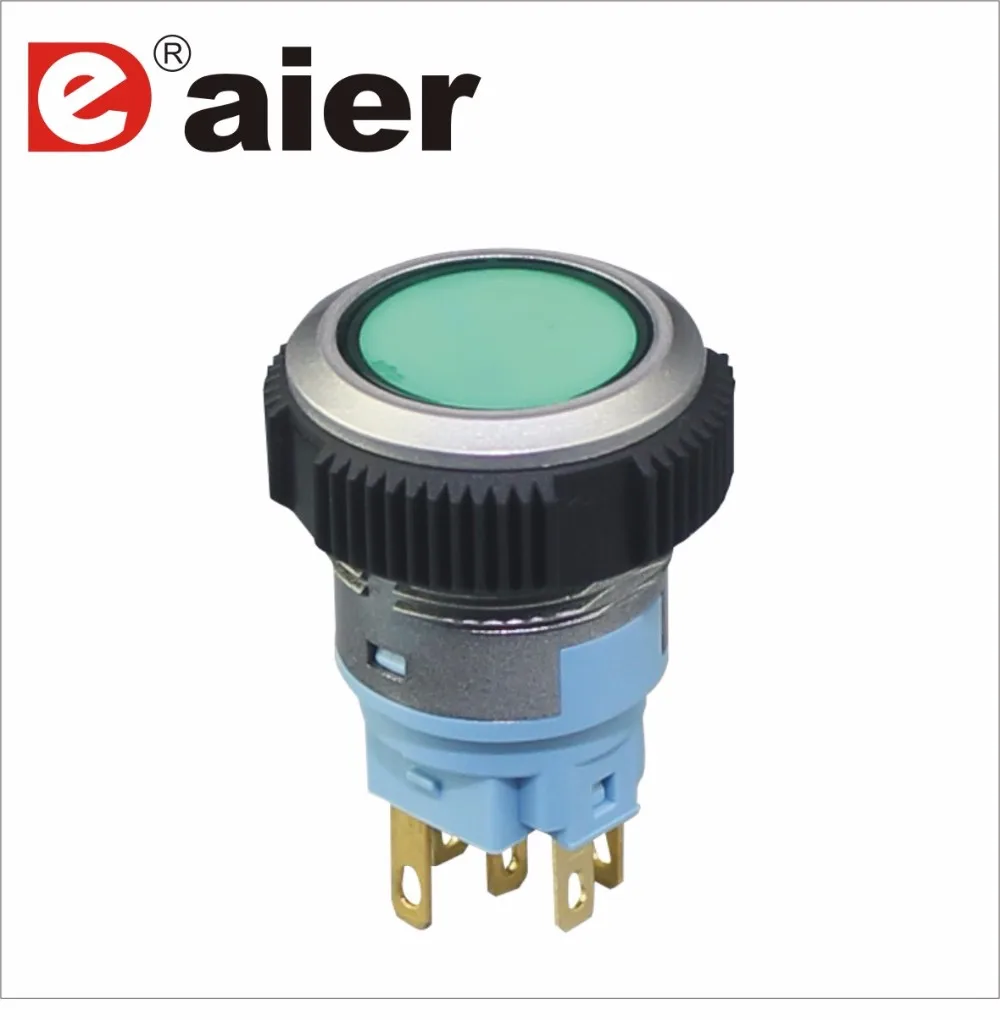

19mm Flast Shape Button IP67 SPDT Solder Terminal Illuminated Plastic Push Button Switch
