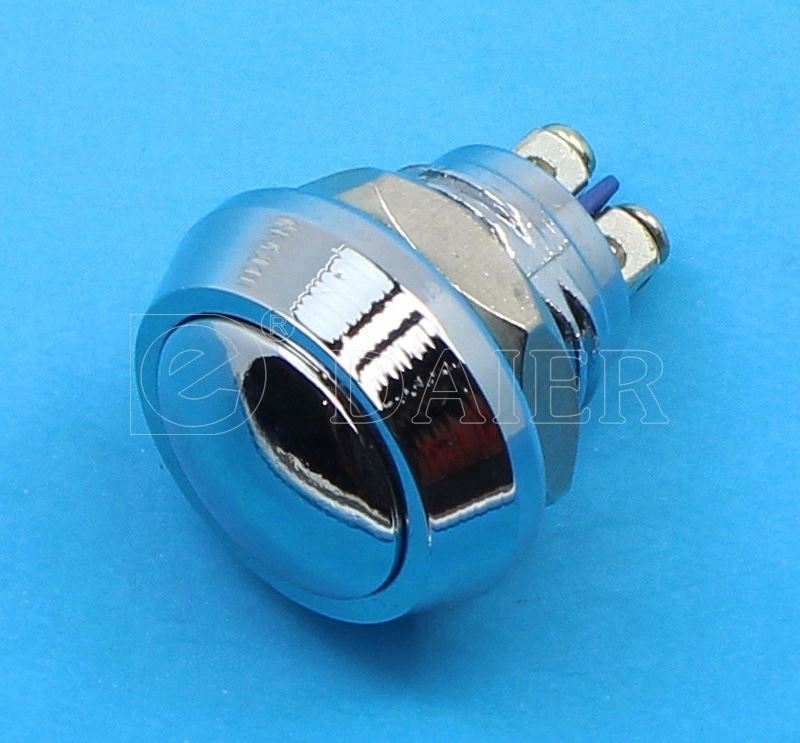

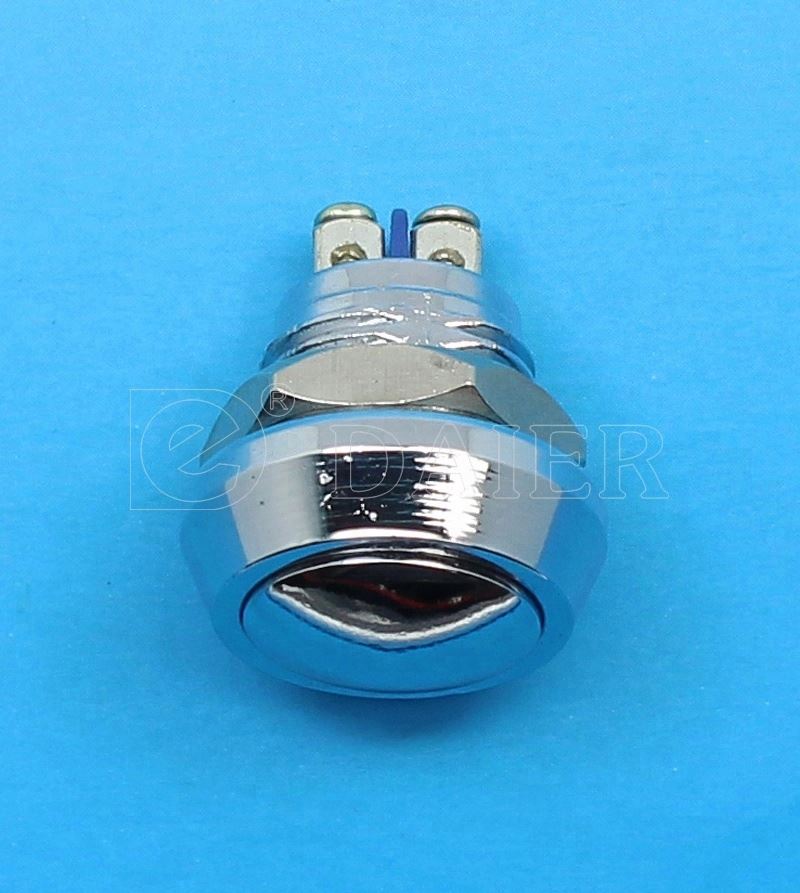

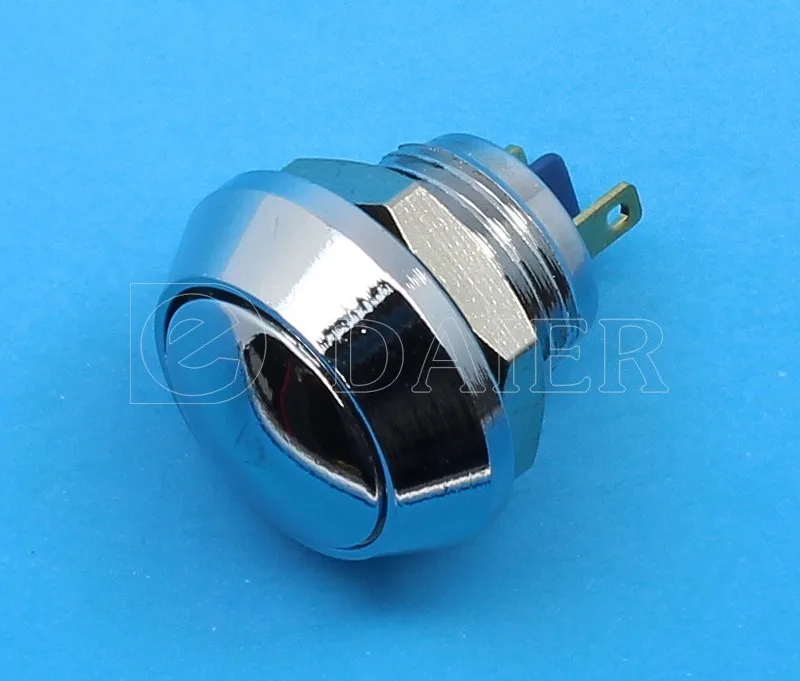

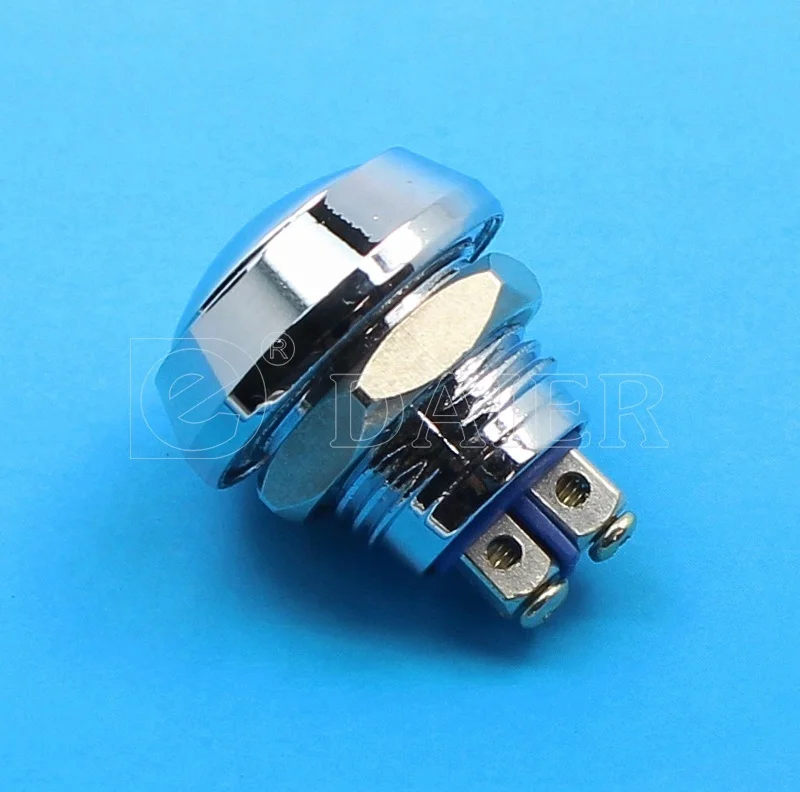

12mm Dome Button 2Pin SPST Momentary Metal Waterproof Explosion Proof Push Button Switch

Click on the image to view the original image

Product：	views：212mm Dome Button 2Pin SPST Momentary Metal Waterproof Explosion Proof Push Button Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ-12B

Protection Level:: IP65

Max. Current:: 2A

Max. Voltage:: 36VDC

Item number:: Explosion Proof Push Button Switch

Contact Rating:: 2A 36VDC

Electric life:: 50,000 cycles

Contact Resistance:: 50 mΩ max

Insulation Resistance:: ≥1000Ω

Dielectric Strength:: 2000V RMS 50~60Hz

Operational Temperature:: -40°C ~ +85°C

Function:: 1NO Momentary

IP Class:: IP65

Operating Force:: 5N Max

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.1 kg

Package Type:: 12mm Dome Button 2Pin SPST Momentary Metal Waterproof Explosion Proof Push Button Switch is 50pcs/box.

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	7	To be negotiated

Product Description

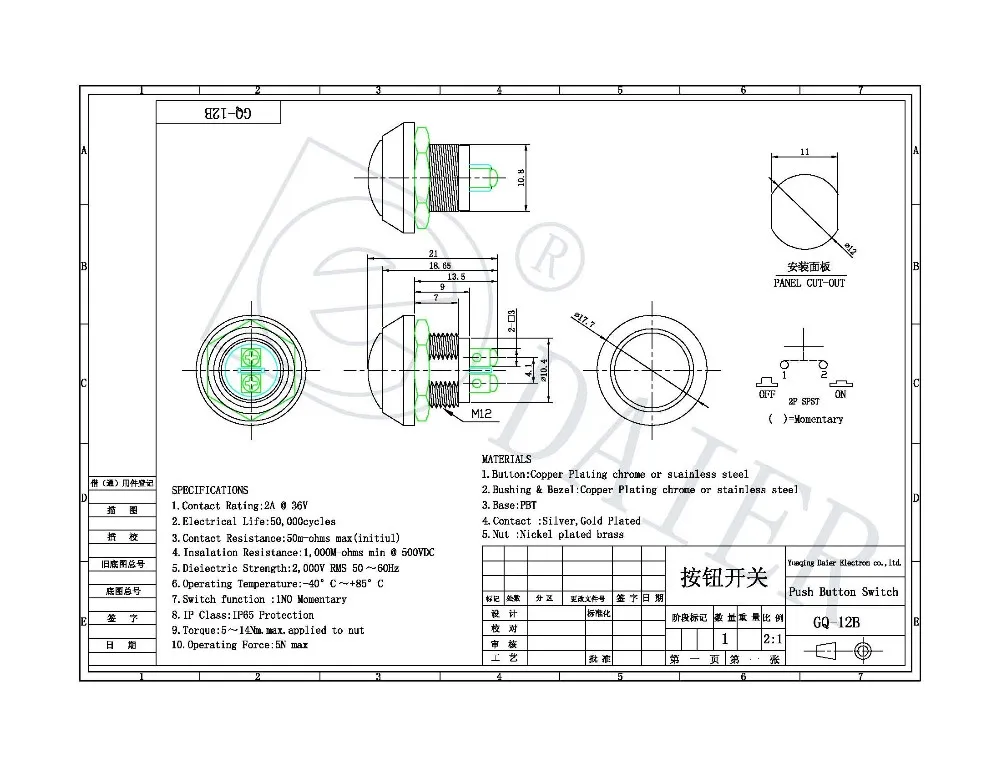

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	12mm Dome Button 2Pin SPST Momentary Metal Waterproof Explosion Proof Push Button Switch
Contact Rating	2A 36VDC
Electrical Life	50,000 cycles
Contact Resistance	50m-ohms max
Insulation Resistance	1,000M-ohms min @ 500VDC
Dieiectric Strength	2,000V RMS 50~60Hz
Operating Temperature	-20~+55°C
Function	1NO Momentary
Protection Level	IP65
Operating Force	5N max
