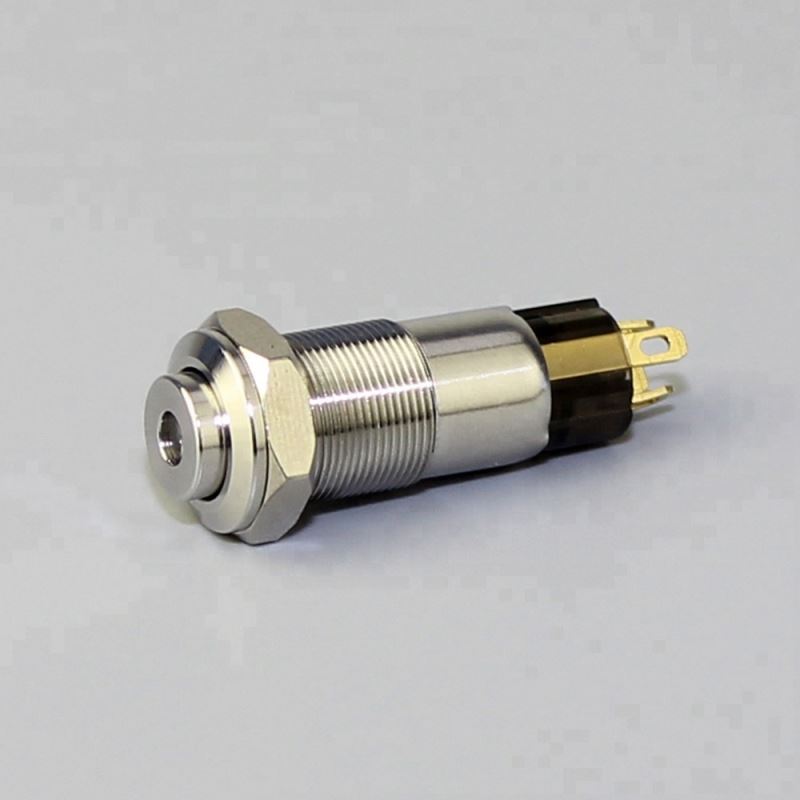

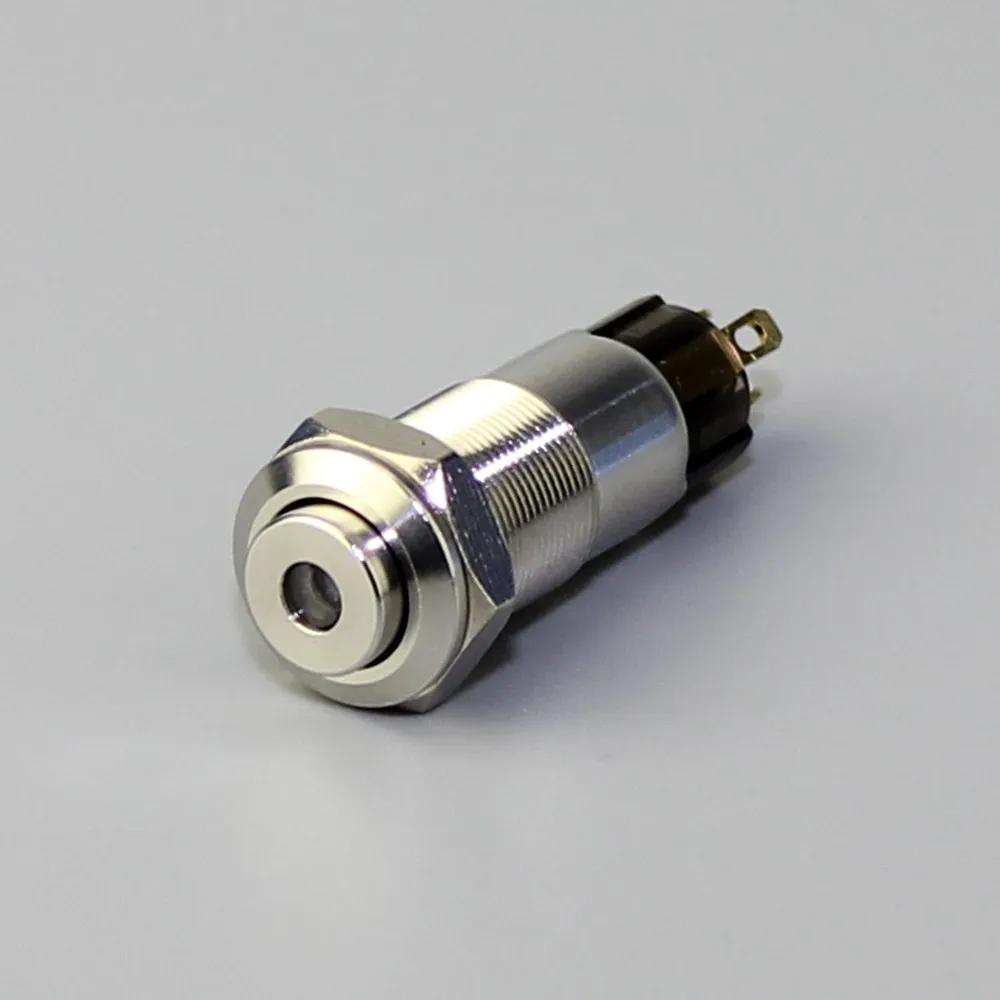

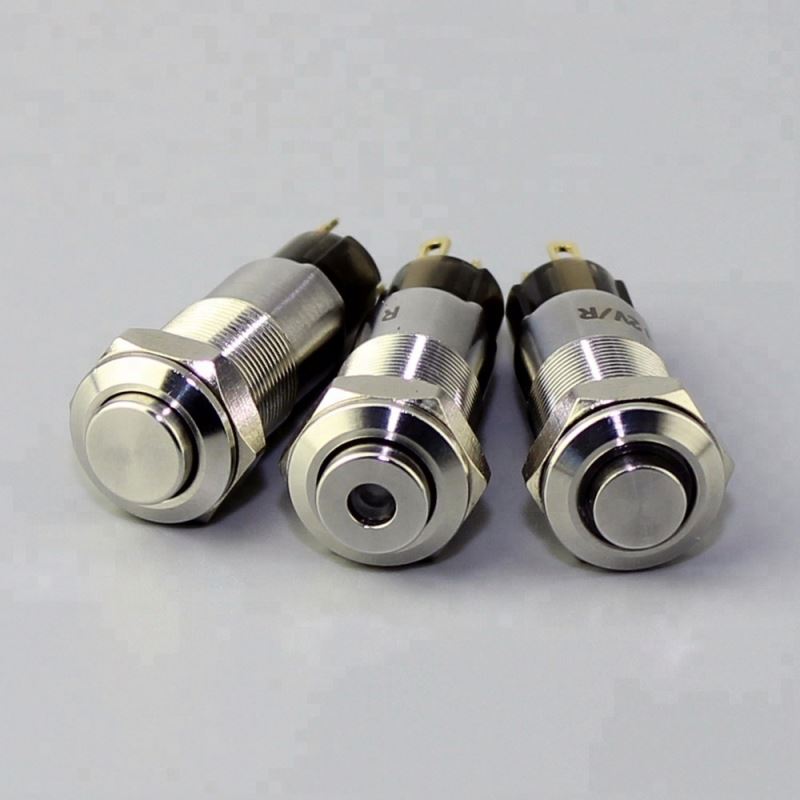

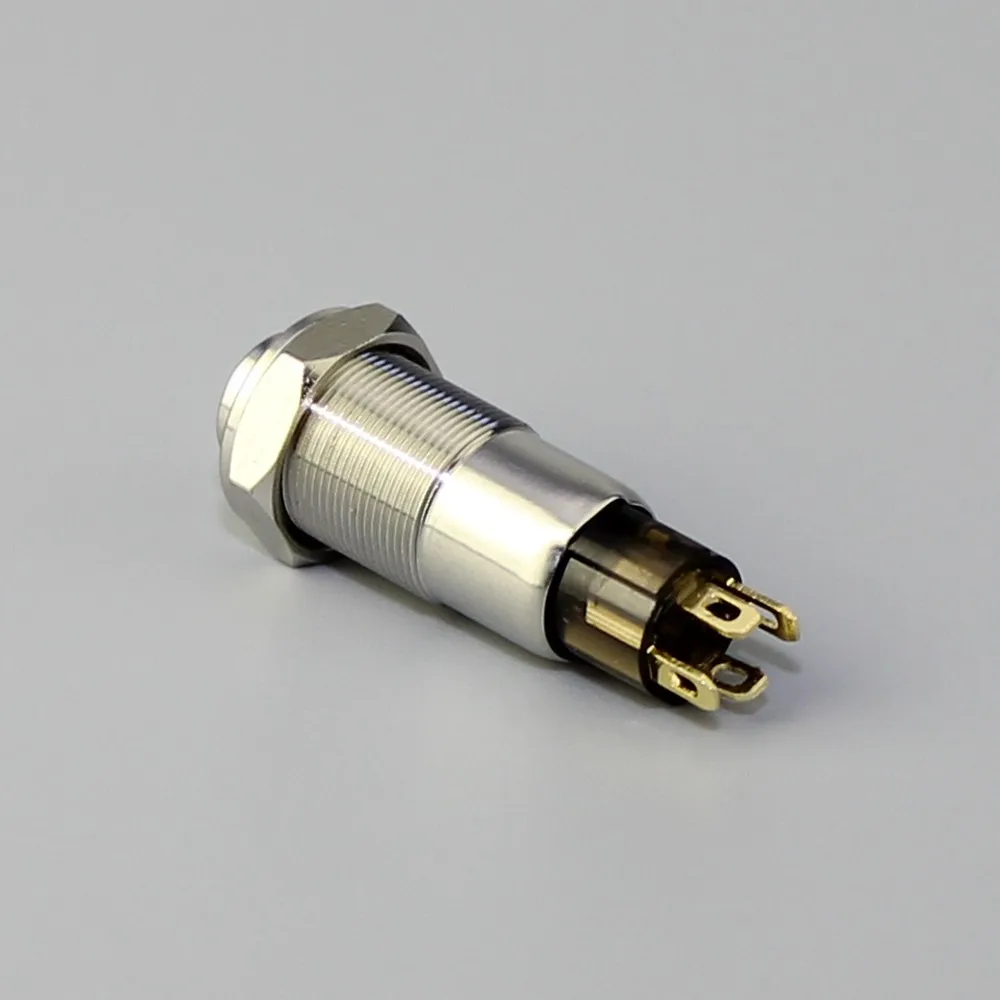

High Round Button Dot Illuminate Soldering terminal 4Pin SPST Metal 10MM Pushbutton Switch

Click on the image to view the original image

Product：	views：2High Round Button Dot Illuminate Soldering terminal 4Pin SPST Metal 10MM Pushbutton Switch
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ-10H-10DM

Protection Level:: IP67

Max. Current:: 2A

Max. Voltage:: 250VAC

Item number:: 10MM Pushbutton Switch

Contact Rating:: 2A 250VAC

Electric life:: 10,000 cycles

Contact Resistance:: 50 mΩ max

Insulation Resistance:: >100Ω 500VDC

Dielectric Strength:: >2000VAC 1Min

Operational Temperature:: -25°C ~ +55°C

Function:: SPST Momentary

IP Class:: IP67

Operating Force:: 3-6N Max

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 21X14X6 cm

Gross weight per batch:: 1.1 kg

Package Type:: High Round Button Dot Illuminate Soldering terminal 4Pin SPST Metal 10MM Pushbutton Switch is 50pcs/box.

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	7	To be negotiated

Product Description

Push button switch is one of the most easy and quick to operate.The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers. Pls check the datasheet below:

Product Name	High Round Button Dot Illuminate Soldering terminal 4Pin SPST Metal 10MM Pushbutton Switch
Contact Rating	2A 250VAC
Electrical Life	10,000 cycles
Contact Resistance	50m-ohms max
Insulation Resistance	1,00m-ohms min @ 500VDC
Dieiectric Strength	>2,000VAC 1Min
Operating Temperature	-20~+55°C
Function	SPST Momentary
Protection Level	IP67
Operating Force	3-6N
