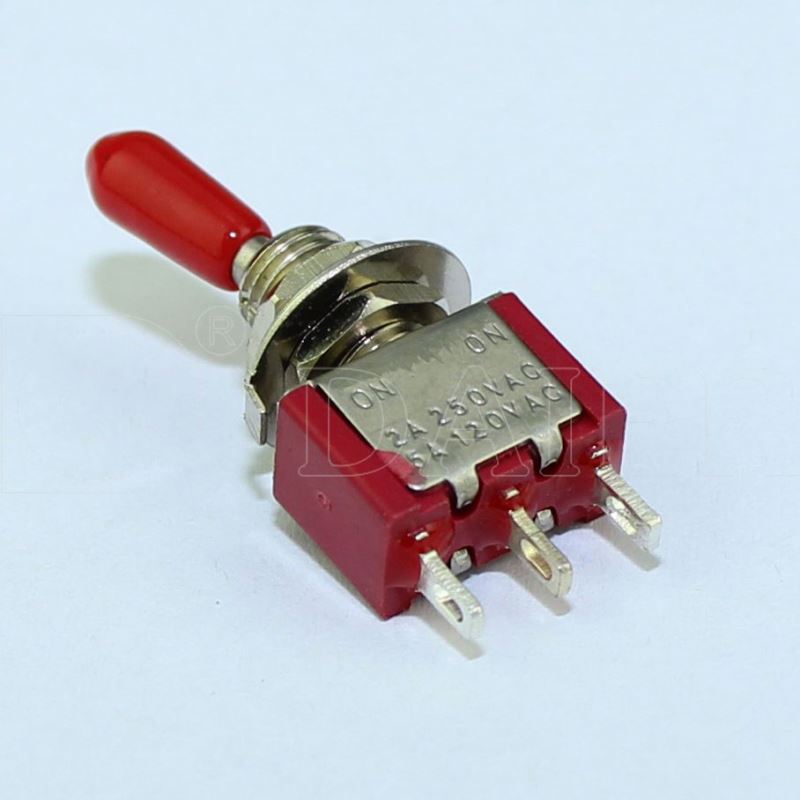

KNX-1-D1 6A 6MM Single Pole 3Pin ON ON Toggle KNX Switch 250V

Click on the image to view the original image

Product：	views：2KNX-1-D1 6A 6MM Single Pole 3Pin ON ON Toggle KNX Switch 250V
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: KNX-1-D1

Max. Current:: 6A

Max. Voltage:: 250VAC

Mechanical Life:: 10000 Cycles

Item number:: KNX-1-D1 6A 6MM Single Pole 3Pin ON ON Toggle KNX Switch 250V

Mounting size:: 6 MM

Function:: SPDTON-ON

Terminal:: Solder Terminals

Shell color:: Red

Contact Resistance:: 20mΩ max

Insulation Resistance:: 500VDC 1000MΩ min

Dielectric Strength:: 1 Minute 1500V AC

Operation Temperature:: -25°C~+85°C

Electric life:: 10,000 Cycles

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 31X17X2 cm

Gross weight per batch:: 0.9 kg

Package Type:: 100pcs a box of KNX-1-D1 6A 6MM Single Pole 3Pin ON ON Toggle KNX Switch 250V

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	5	To be negotiated

Product Description

Product Name	KNX-1-D1 6A 6MM Single Pole 3Pin ON ON Toggle KNX Switch 250V
Rating	6A 125V AC ; 3A 250V AC
Mounting Size	6 MM
Circuitry Trait	ON ON SPDT on on toggle knx switch 250v
Terminal Type	Solder Terminals
Handle options	With Handle Cap

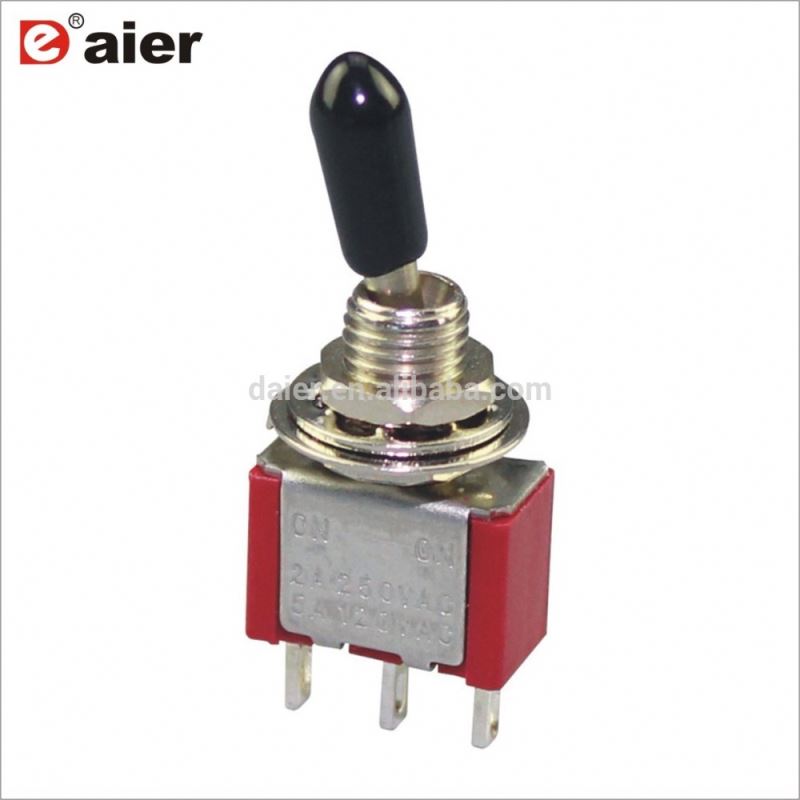

Products Show

KNX-1-D1

Specifications:
1. Rating: 6A 125V AC ;3A250V AC
2. Function: ON-ON
3.Contact Resistance: 20mΩ Max
4. Insulation Resistance:500V DC 1000MΩ min
5. Dielectric Strength: 1 Minute 1500V AC
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles
