Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- MTS-402-A2-R
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 Cycles
- Item number:

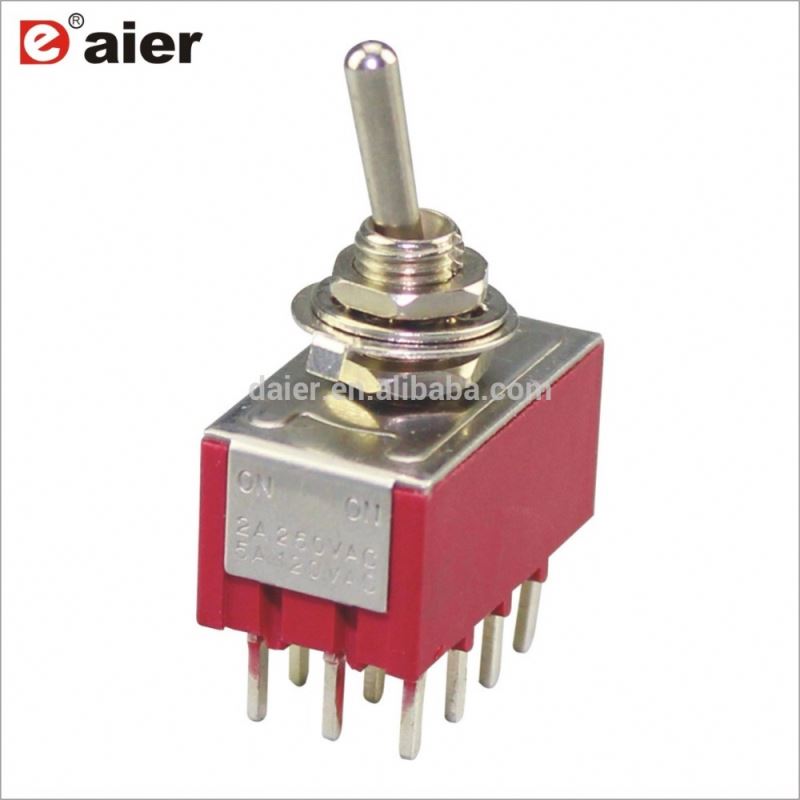

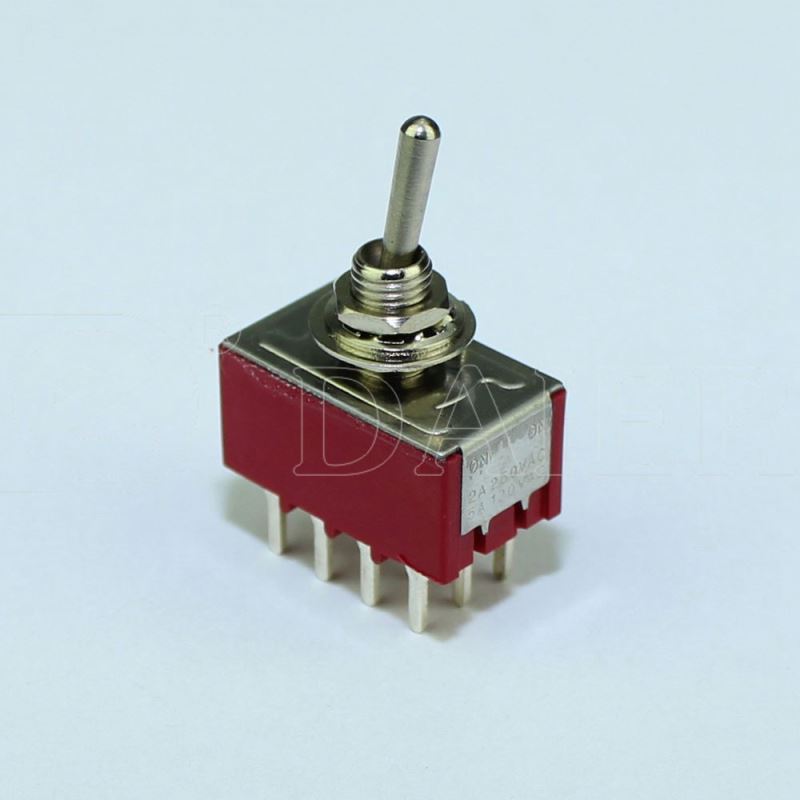

- 6A 125V 4PDT 12Pin Red 2 Position Toggle Switch ON ON
- Mounting size:
- 6 MM
- Function:
- 4PDTON-ON
- Terminal:
- PCB Terminals
- Shell color:
- Red
- Contact Resistance:
- 20mΩ max
- Insulation Resistance:
- 500VDC 1000MΩ min
- Dielectric Strength:
- 1 Minute 1500V AC
- Operation Temperature:
- -25°C~+85°C
- Electric life:
- 10,000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 31X17X2 cm
- Gross weight per batch:
- 0.7 kg
- Package Type:
- 50pcs a box of 6A 125V 4PDT 12Pin Red 2 Position 4 pole Toggle Switch ON ON
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 5 To be negotiated
