Home > Products > RLS Single Pole 3Pin ON OFF ON SPDT Momentary Toggle Switch

RLS Single Pole 3Pin ON OFF ON SPDT Momentary Toggle Switch

Click on the image to view the original image

Product：	views：3RLS Single Pole 3Pin ON OFF ON SPDT Momentary Toggle Switch
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: RLS-123-A3

Max. Current:: 3A

Max. Voltage:: 250VAC

Mechanical Life:: 10000 Cycles

Item number:: RLS Single Pole 3Pin ON OFF ON SPDTMomentary Toggle Switch

Function:: SPDT(ON)-OFF-(ON)

Terminal:: Solder Terminals

Shell color:: Blue

Pins:: 3 Pin

Contact Resistance:: 20mΩ max

Insulation Resistance:: 500VDC 1000MΩ min

Dielectric Strength:: 1 Minute 1500V AC

Operation Temperature:: -25°C~+85°C

Electric life:: 10,000 Cycles

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 31X17X2 cm

Gross weight per batch:: 1.0 kg

Package Type:: 100pcs a box of RLS Single Pole3Pin ON OFF ON SPDTMomentary Toggle Switch

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	5	To be negotiated

Product Description

Product Name	RLS Single Pole3Pin ON OFF ON SPDTMomentary Toggle Switch
Rating	6A 125V AC ; 3A 250V AC
Pin	3 Pin
Circuitry Trait	(ON) OFF (ON) SPDT spdt momentary toggle switch
Terminal Type	Solder Terminals

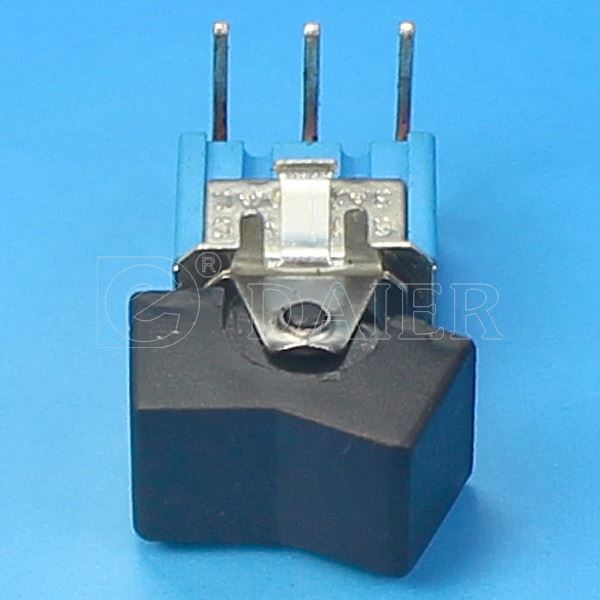

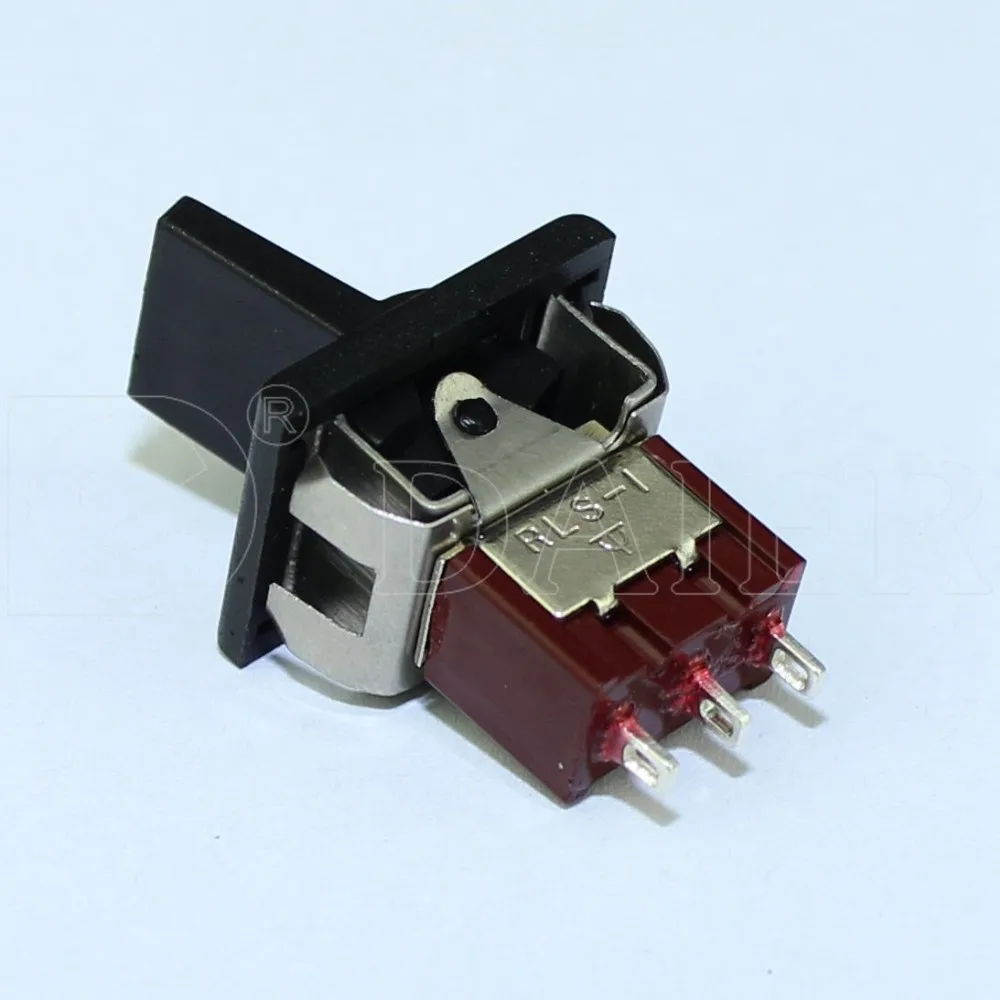

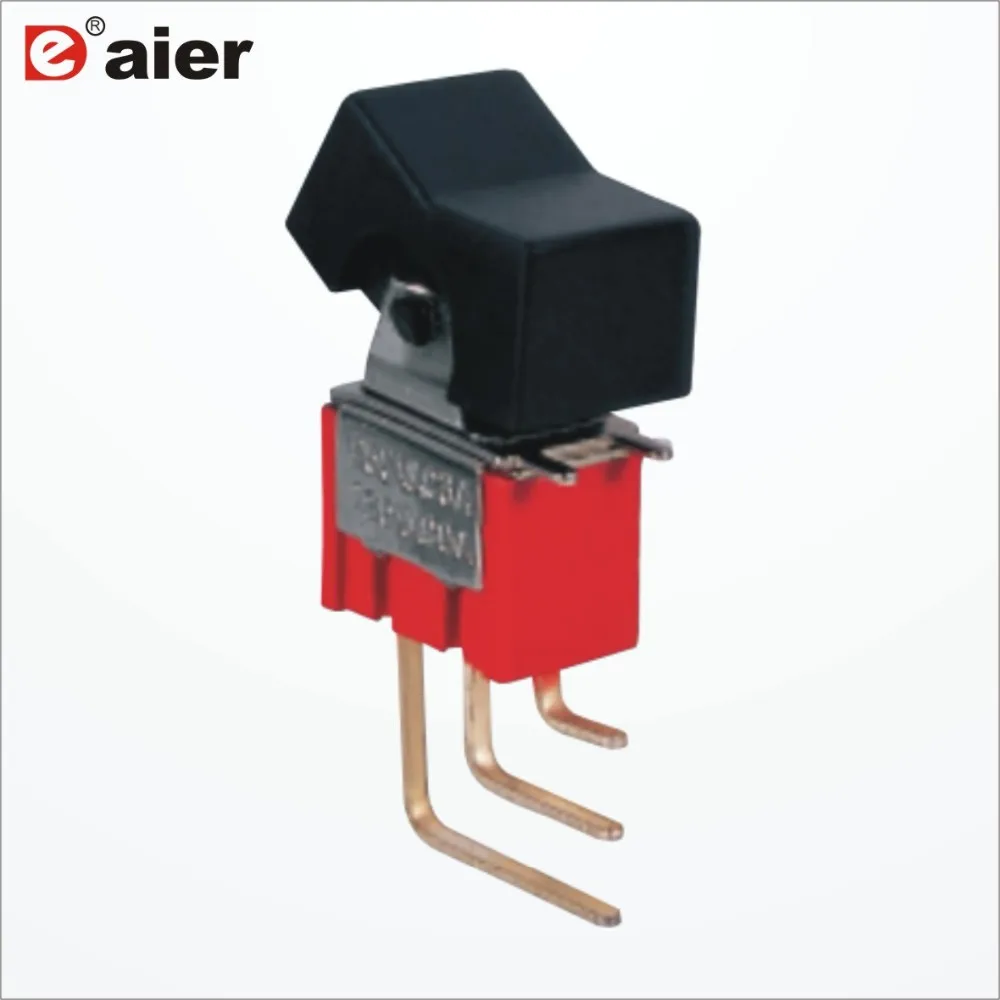

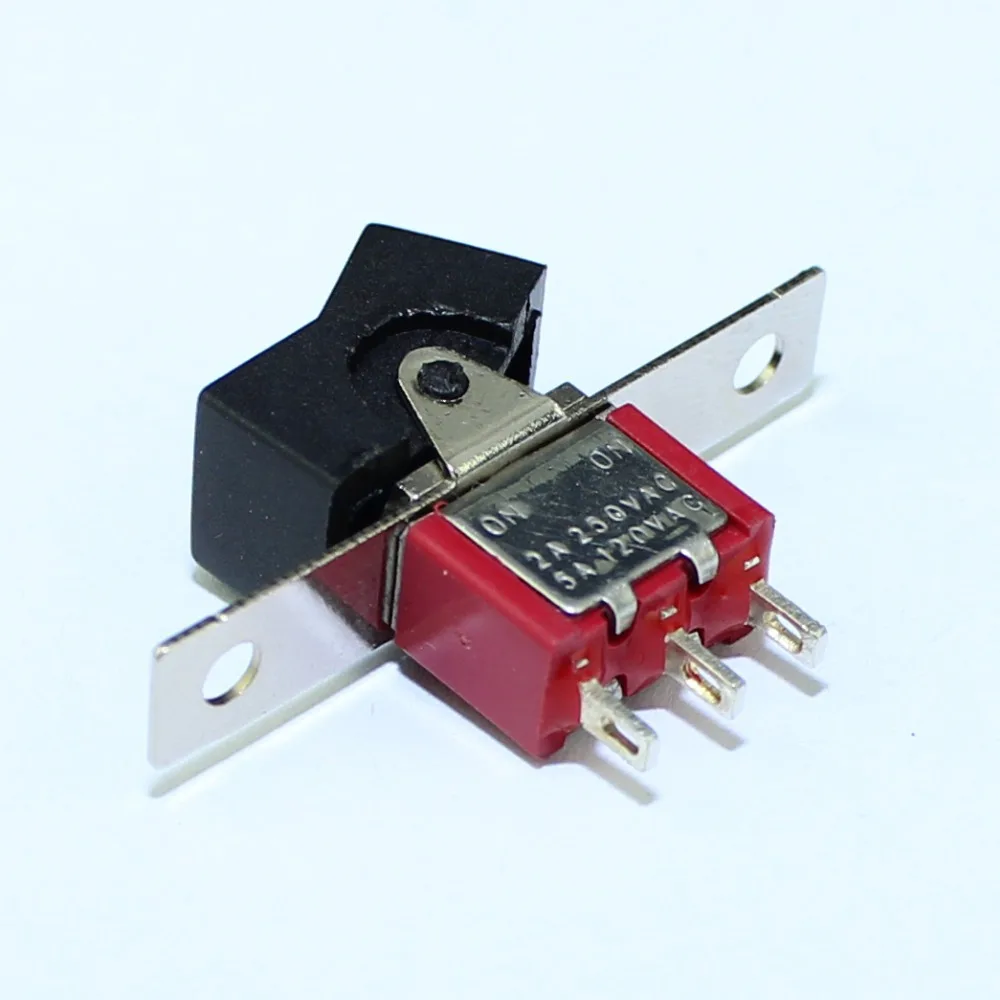

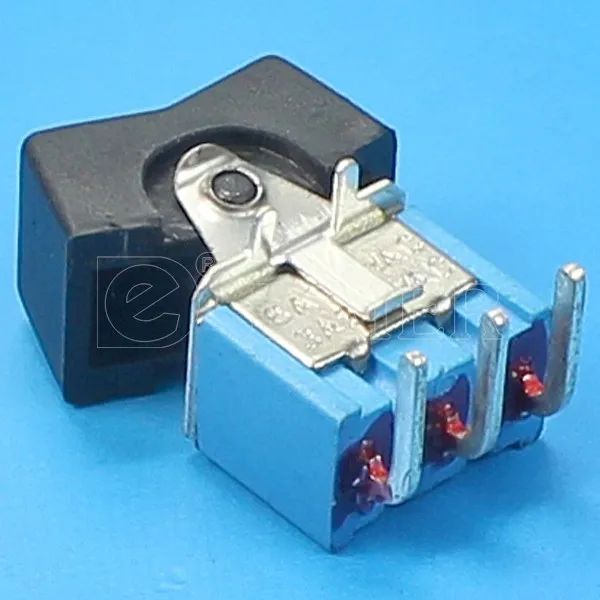

Products Show

RLS-123-A3

Specifications:
1. Rating: 6A 125V AC ;3A250V AC
2. Function: (ON)-OFF-(ON)
3.Contact Resistance: 20mΩ Max
4. Insulation Resistance:500V DC 1000MΩ min
5. Dielectric Strength: 1 Minute 1500V AC
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: 10,000 Cycles
