Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KN3C-202P
- Max. Current:
- 15A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 cycles
- Product name:

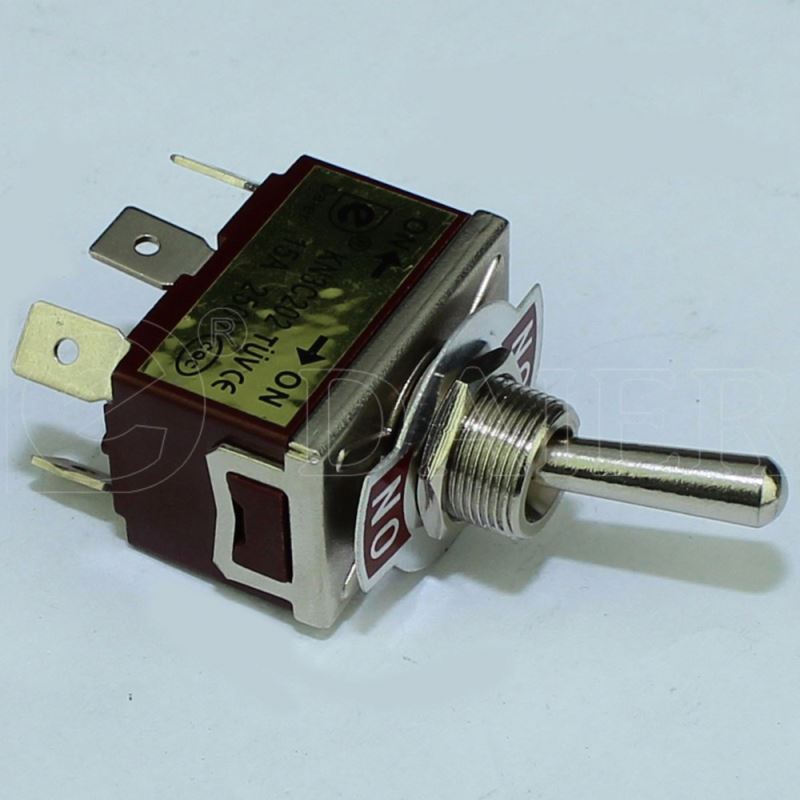

- KN3C 12MM 6A ON ON 2-Way Locking 250V DPDT 6P Toggle Switch
- Product type:
- Toggle switch
- Housing Color:
- Brown
- Switch Function:
- ON-ON
- Terminal:
- PC Terminals
- Handle option:
- Standard
- Contact Resistance:
- 50mΩ max
- Operating Temperature:
- -25℃~+85℃
- Standard:
- IEC standard
- Certificate:
- CE,CQC,TUV
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X5X5 cm
- Gross weight per batch:
- 1.02 kg

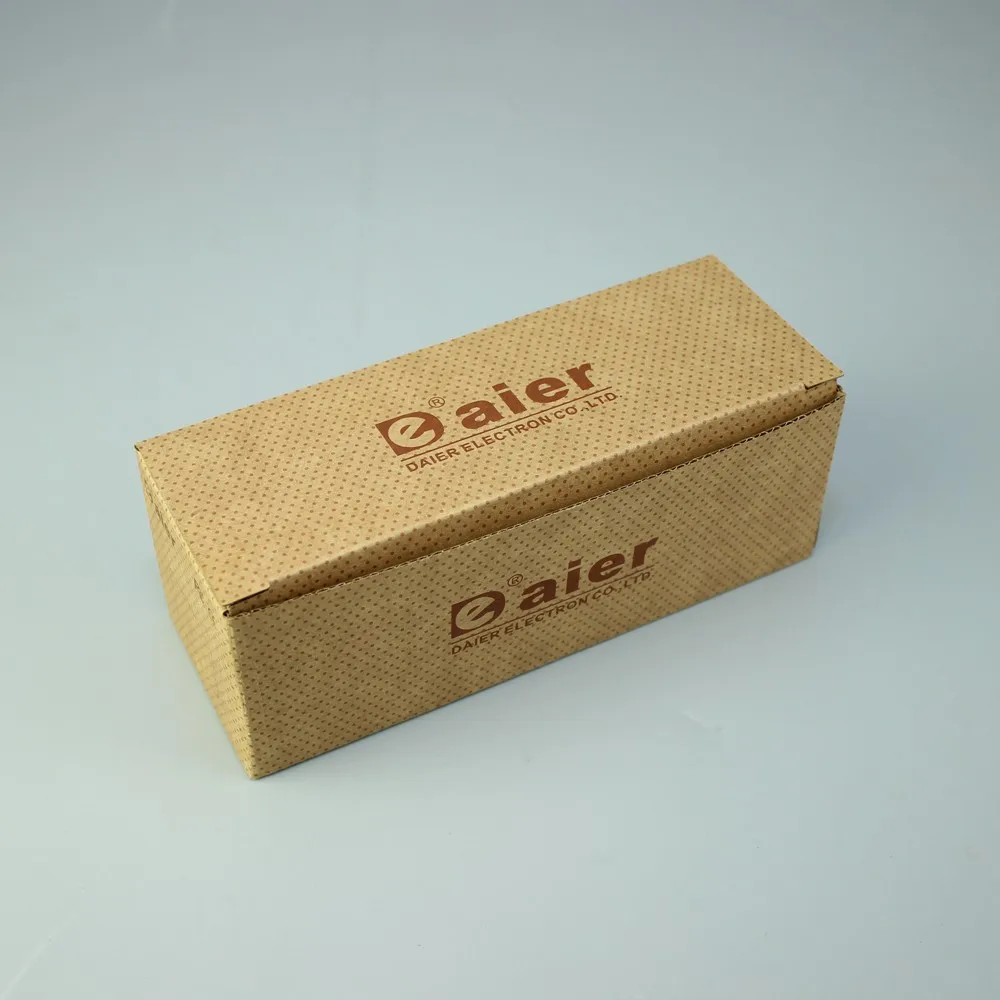

- Package Type:

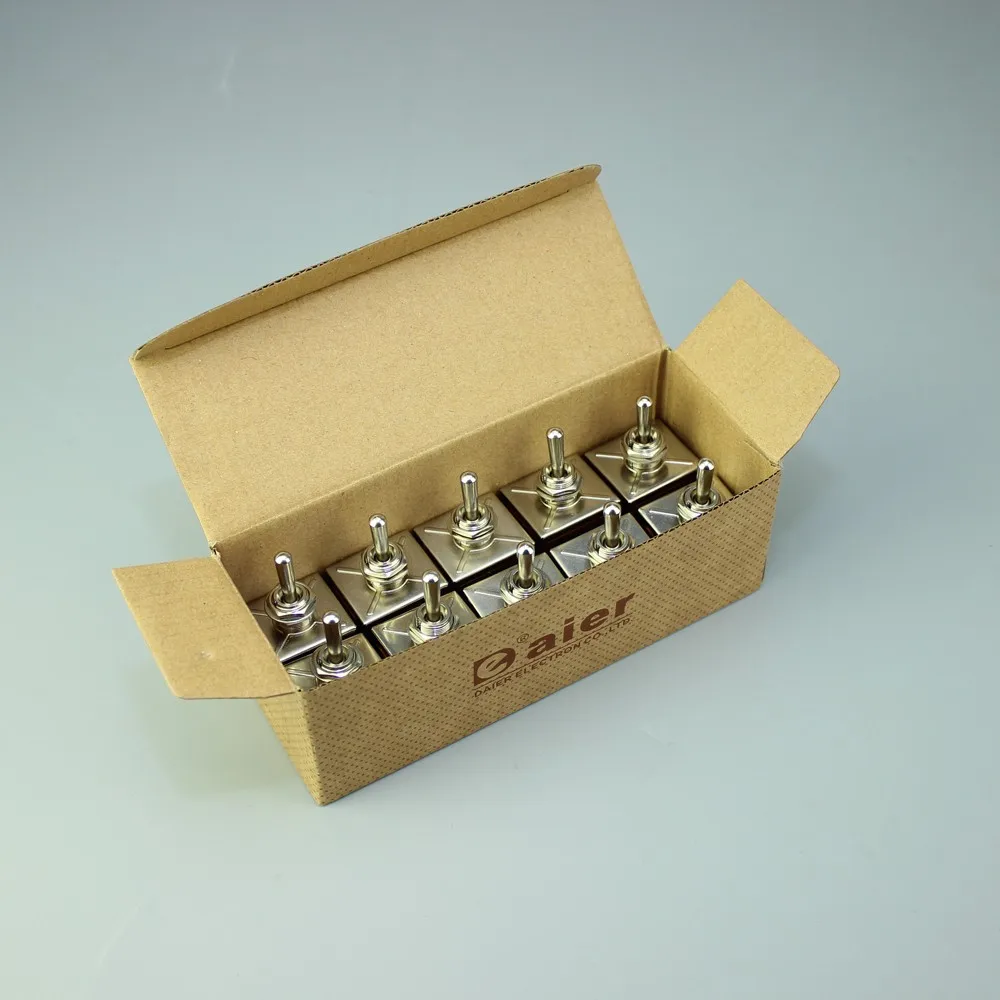

- 20pcs/box,500pcs/carton of KN3C 12MM 6A ON ON 2-Way Locking 250V DPDT 6P Toggle Switch
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 5 To be negotiated
