Home > Products > KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST

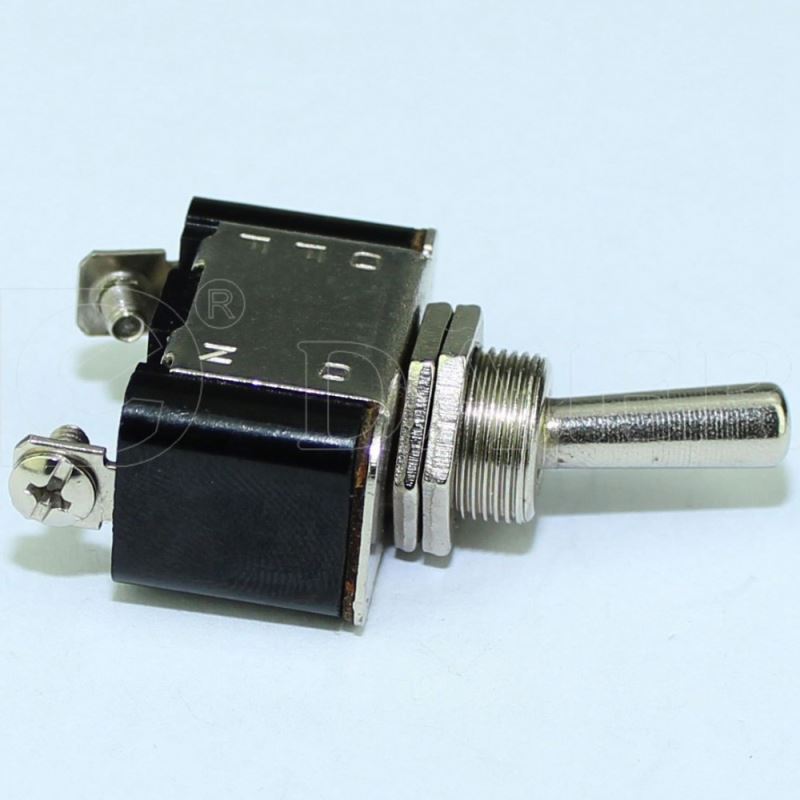

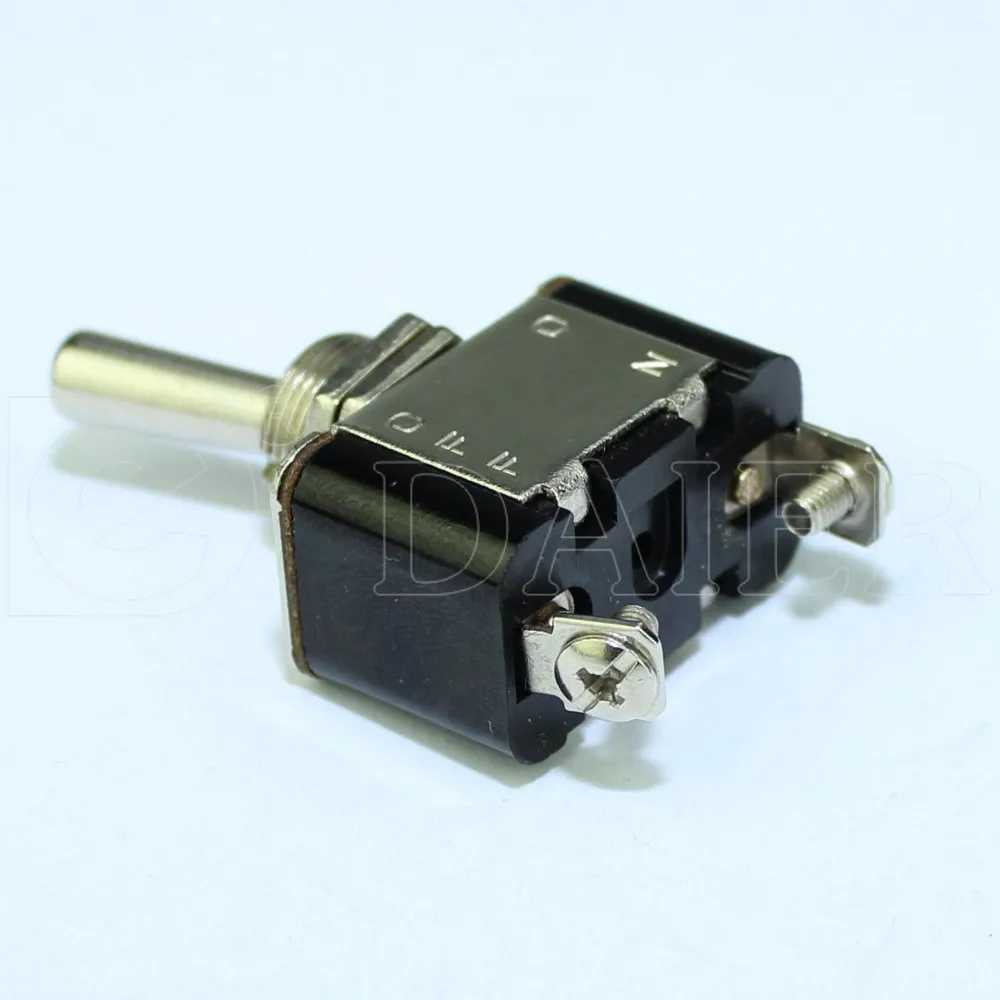

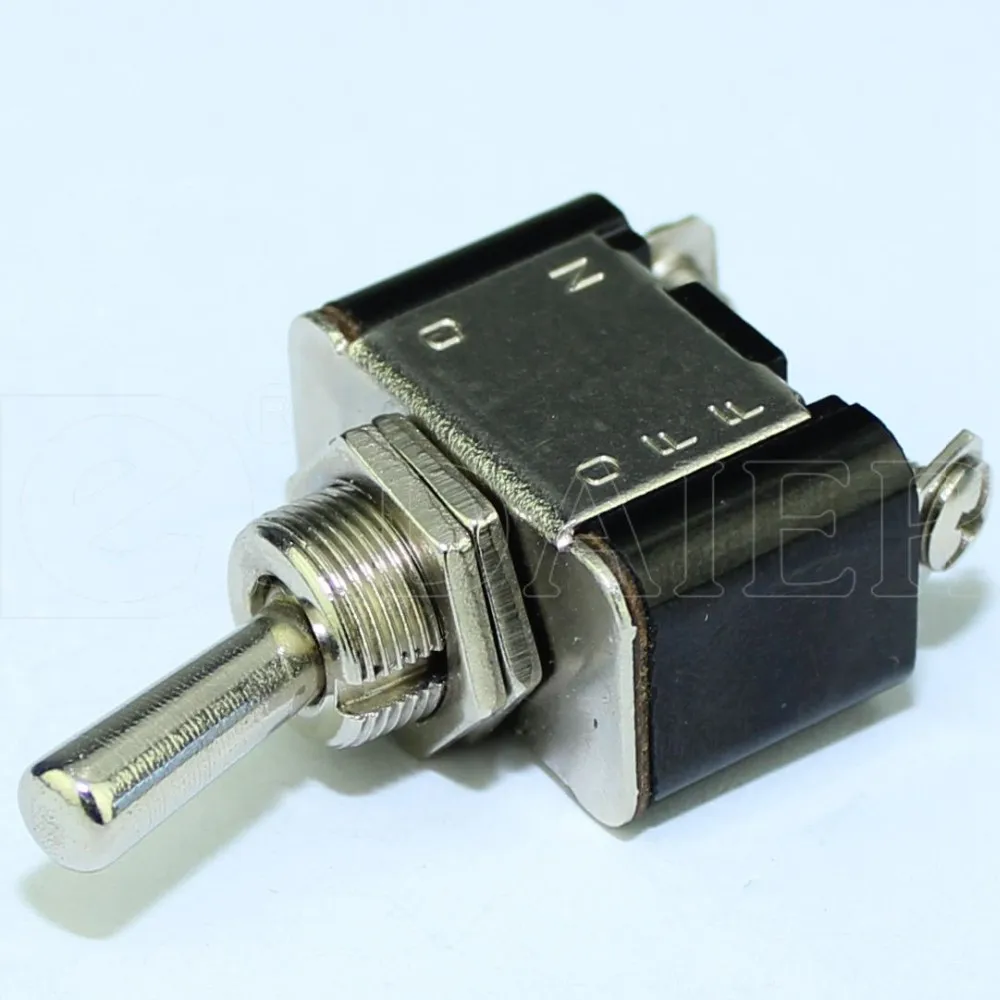

KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST
Click on the image to view the original image
Product： views：1KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST
Branch： DAIER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
KN3A-101
Max. Current:
15A
Max. Voltage:
250VAC
Mechanical Life:
10000 cycles
Product name:
KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST
Product type:
Toggle switch
Housing Color:
Black
Switch Function:
ON-OFF
Terminal:
Screw Terminals
Handle option:
Standard
Contact Resistance:
50mΩ max
Operating Temperature:
-25℃~+85℃
Standard:
IEC standard
Certificate:
CE,CQC,TUV

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
15X5X5 cm
Gross weight per batch:
1.5 kg
Package Type:
25pcs/box,500pcs/carton of KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST
Lead Time:
Quantity(Piece)1 - 25000>25000
Est. Time(days)5To be negotiated
Product Description
Product Name
KN3A-101 12MM 15A 250V ON-OFF 2-Way2 Pin Toggle Switch SPST
Rating
15A 250VAC
Switch Function
ON OFF  SPST    2 pin toggle switch spst
Terminal options
Screw Terminals
Operating Temperature
-25℃~+85℃
Housing color
BK-Black
Products Show
