Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KN3A-101P
- Max. Current:
- 15A
- Max. Voltage:
- 250VAC
- Mechanical Life:
- 10000 cycles
- Product name:

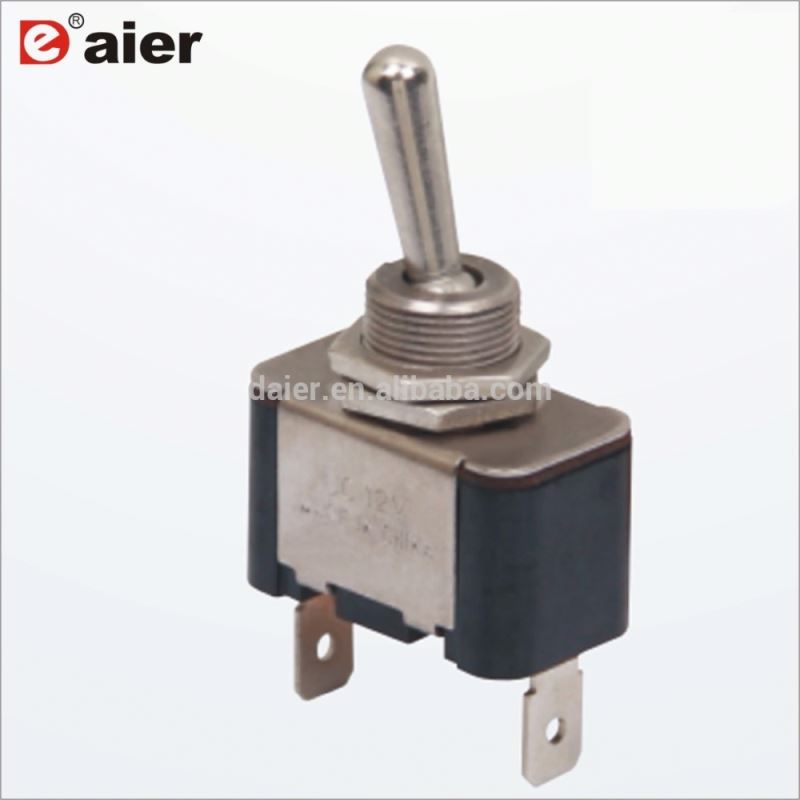

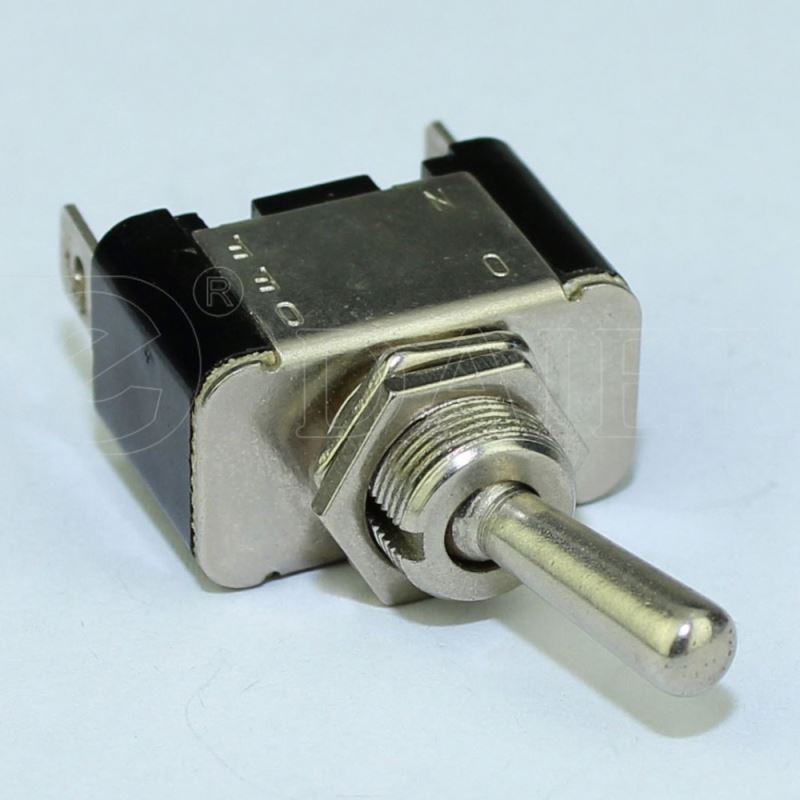

- KN3A-101P 12MM 2Pin ON OFF PC Terminal SPST Toggle Switch 2 Way
- Product type:
- Toggle switch
- Housing Color:
- Black
- Switch Function:
- ON-OFF
- Terminal:
- PC Terminals
- Handle option:
- Standard
- Contact Resistance:
- 50mΩ max
- Operating Temperature:
- -25℃~+85℃
- Standard:
- IEC standard
- Certificate:
- CE,CQC,TUV
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X5X5 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 25pcs/box,500pcs/carton of KN3A-101P 12MM 2Pin ON OFF PC Terminal SPST Toggle Switch 2 Way
- Lead Time:
Quantity(Piece) 1 - 25000 >25000 Est. Time(days) 5 To be negotiated
