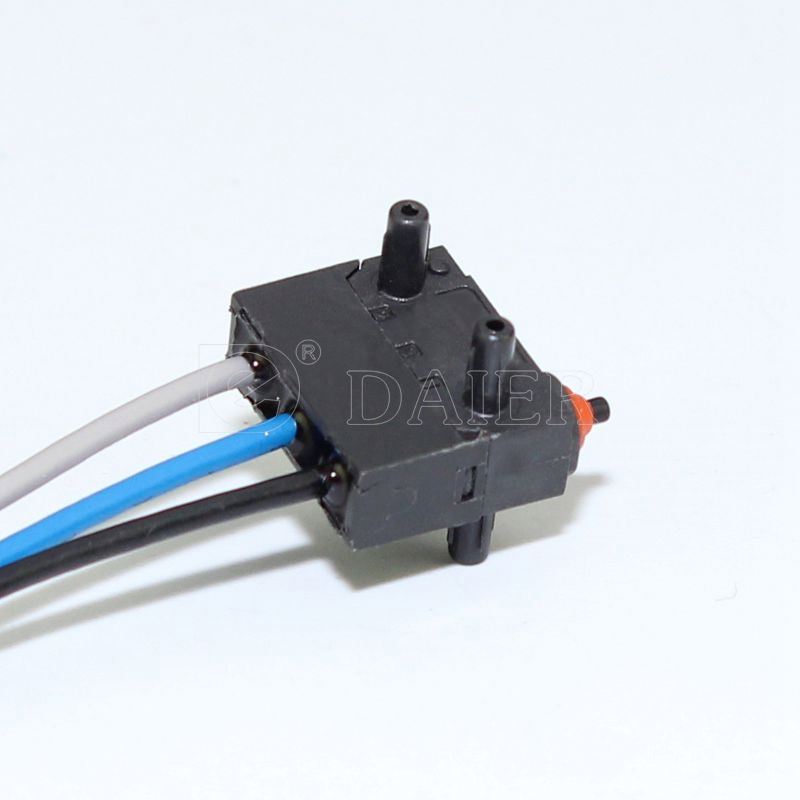

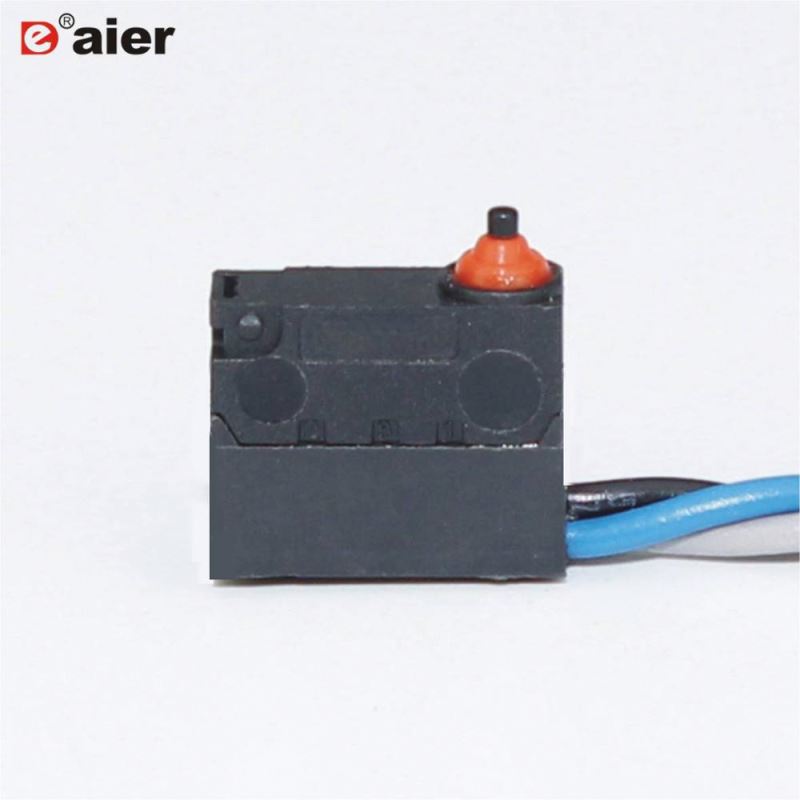

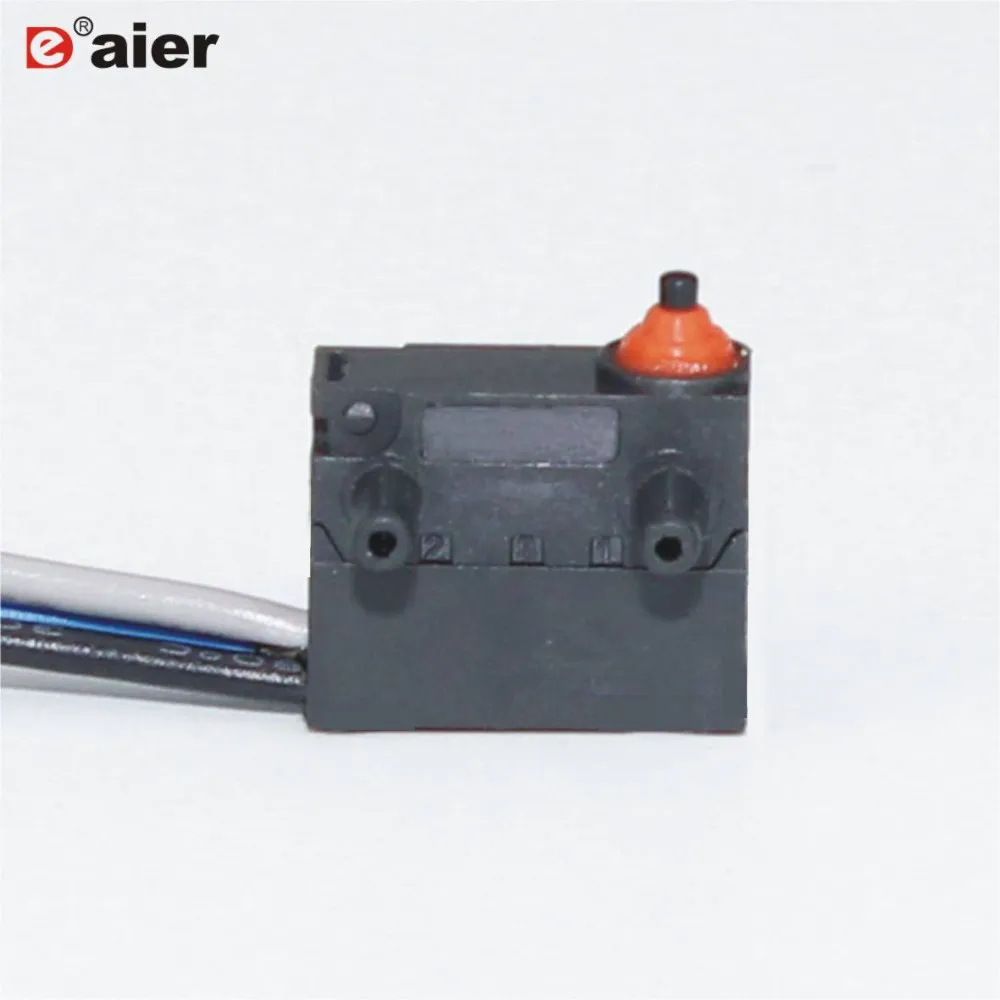

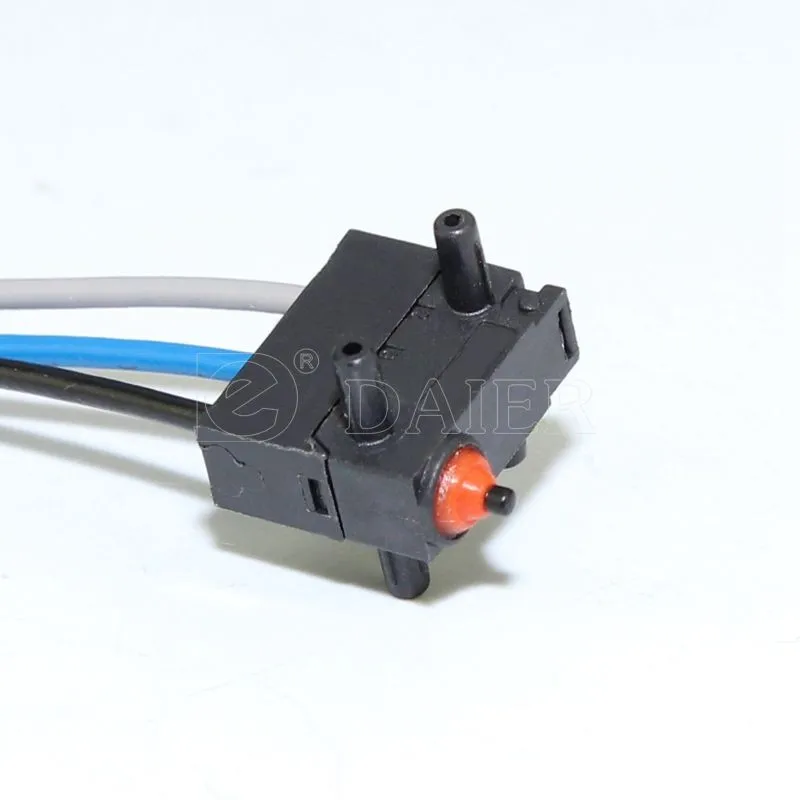

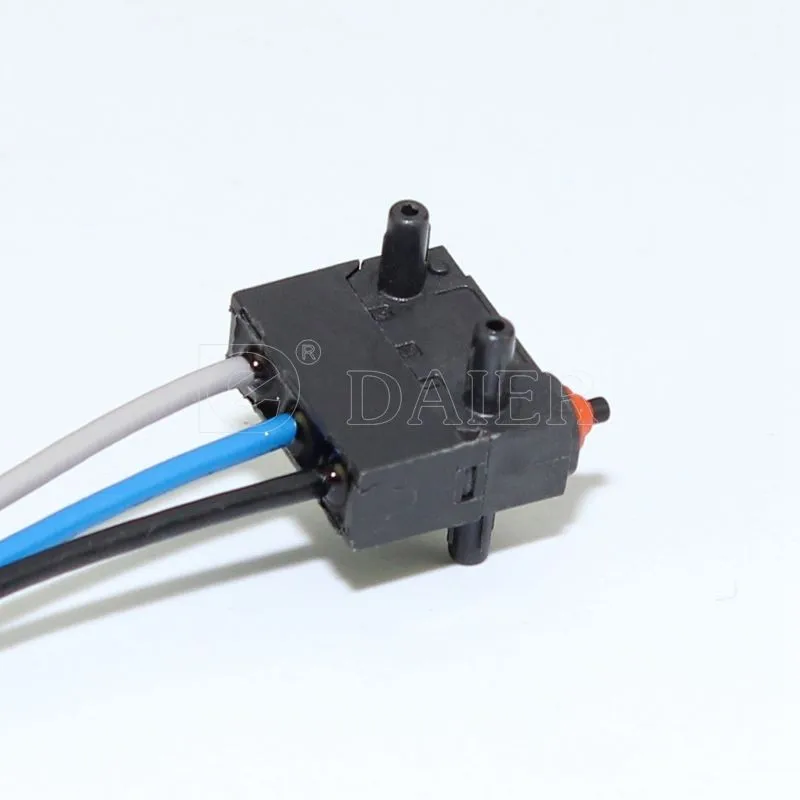

0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch

Click on the image to view the original image

Product：	views：20.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:13

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: G303-E00-A8

Max. Current:: 3A

Max. Voltage:: 250VAC

Operating Temperature:: T85

Protection Level:: IP67

Item number:: 0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch

Rating:: 0.1A 250VAC / 3A 12VDC

Material:: Plastic

Function:: SPST

Terminal:: With Wire

Wire Length:: 200mm

Free Sample:: Available

Contact Resistance:: 30mΩ max

Operation Temperature:: -25°C~+85°C

Electric life:: 10,0000 Cycles

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 26X18X5 cm

Gross weight per batch:: 1.0 kg

Package Type:: 100pcs of 0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	7	To be negotiated

Product Descriptio

Product Name	0.1A 250VAC OFF-ON Snap Action Replace Cherry Waterproof Micro Switch
Rating	0.1A 250VAC / 3A 12VDC
Connect Forms	SPST I12V waterproof micro switch
Degree Protection	IP67 waterproof micro switch
Terminal Type	Wire Type
Contact Resistance	≤30mΩ
Insulation Resistance	≥100mΩ (500VDC)
Dielectric strength	1500VAC 1 minute
Mechanical Life	≥ 100,000 Cycles cherry waterproof micro switch

Products Show

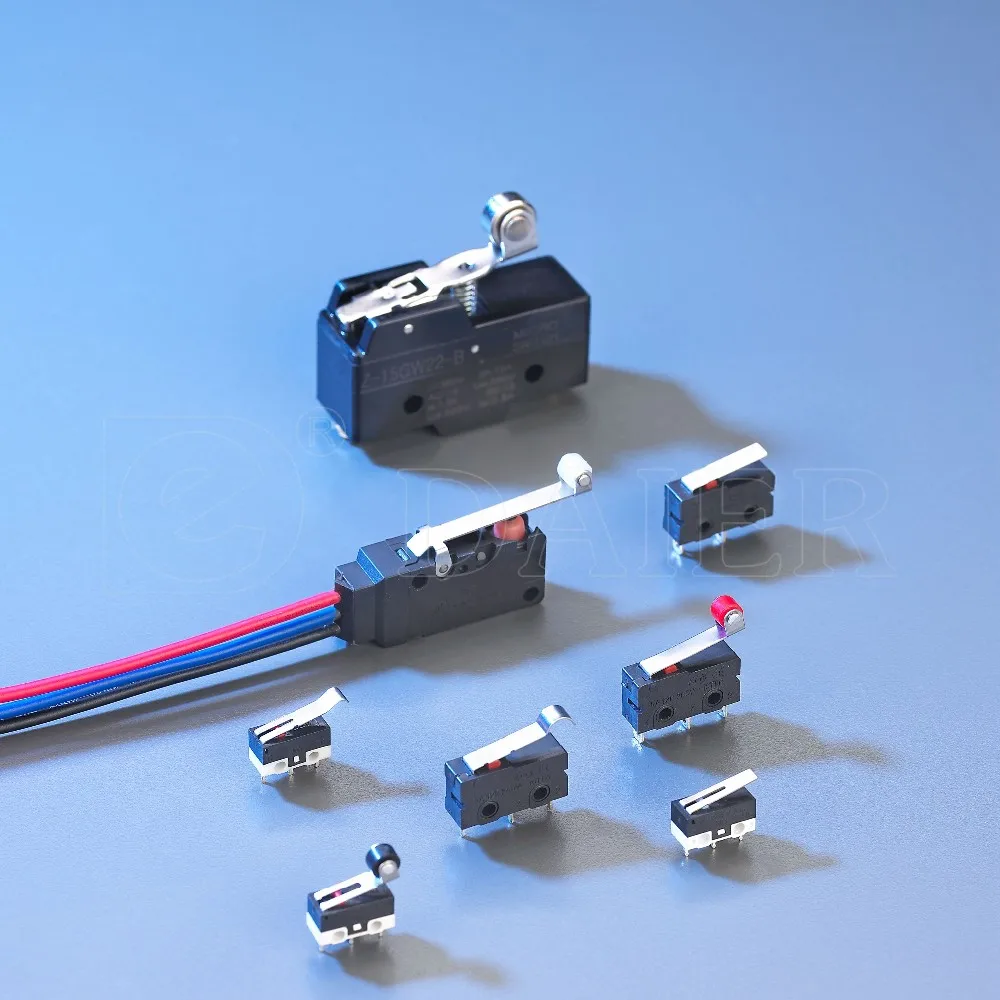

This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The degree protection provided by enclosure can be reached IP67.

Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50gf to 400gf.

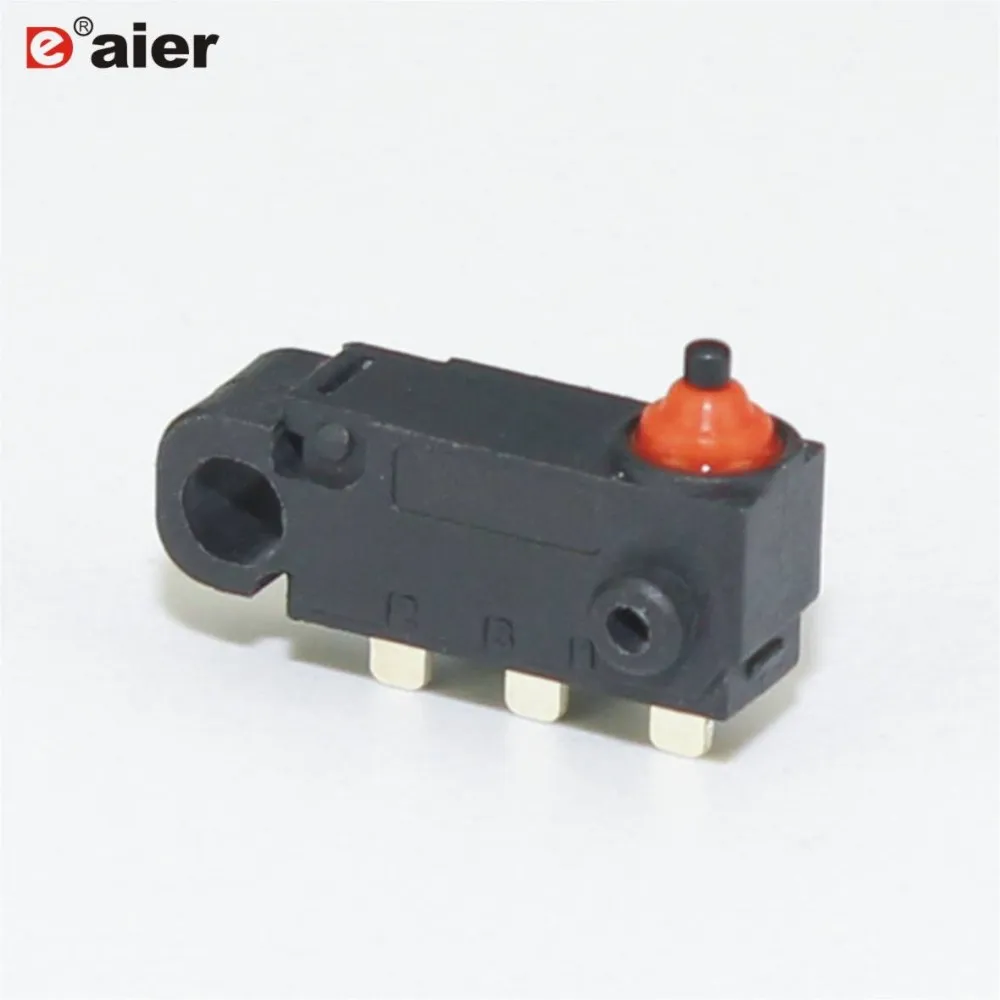

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
