Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:

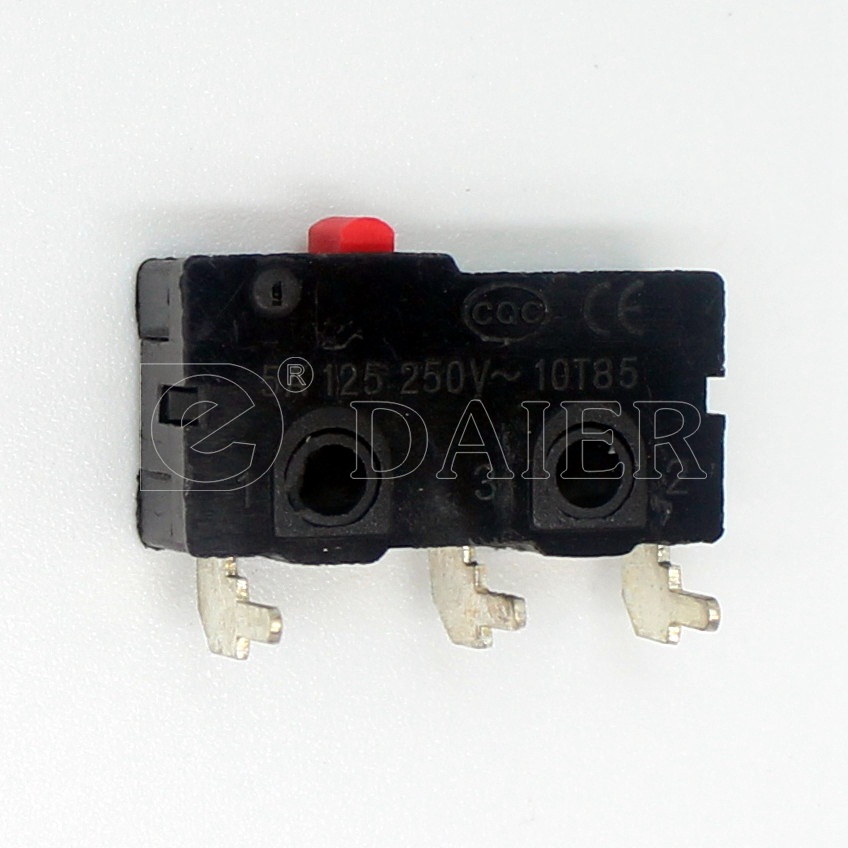

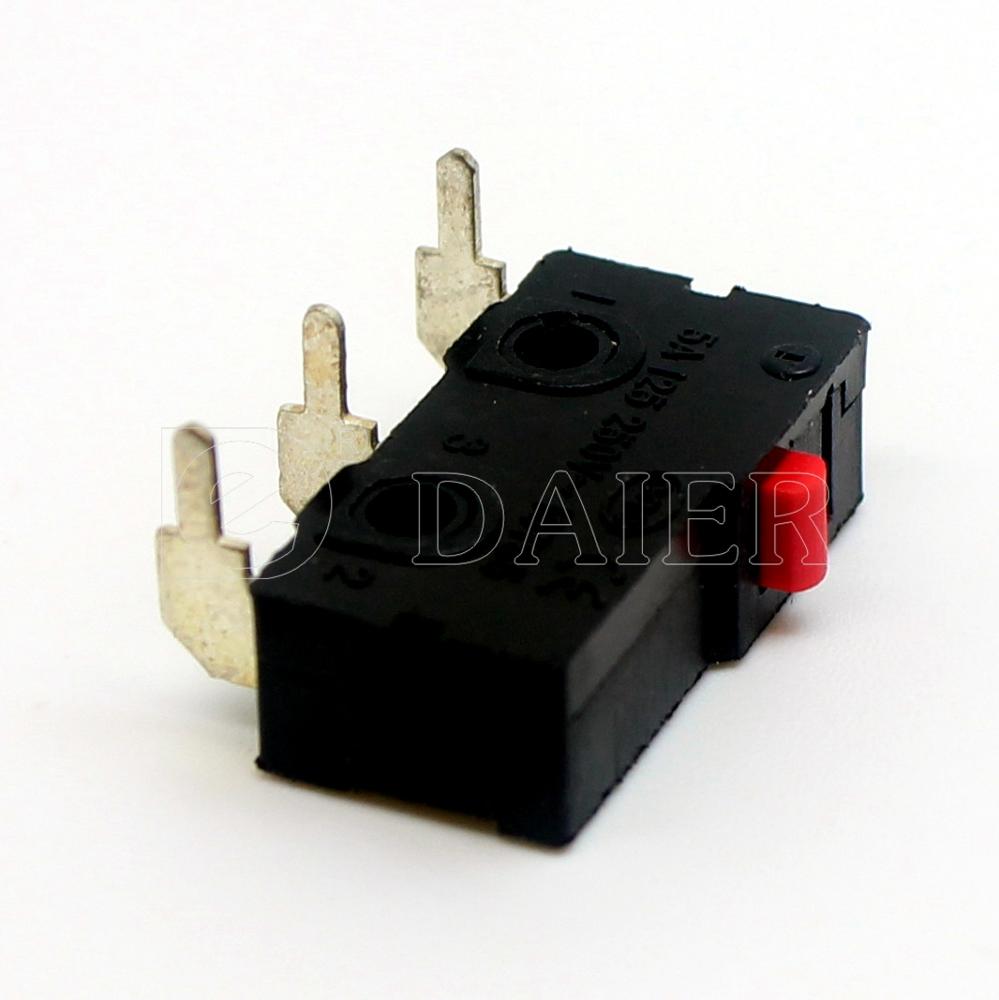

- KW4-Z1R
- Protection Level:
- IP40
- Operating Temperature:
- -25℃~+80℃
- Max. Current:
- 5A
- Max. Voltage:
- 125/250VAC
- Color:
- black
- Function:
- 1NO1NC
- Lever:
- no lever
- Contact Resistance:
- 30 M Ω max
- Insulation Resistance:
- 500VDC 100 M Ω min
- Dielectric strength:
- 1500VAC,1Minute
- Characteristics:
- Long life,high reliability , A Variety of contact terminals
- Approvals:
- CE,UL,CQC
- Electrical life:
- 100,000cycles
- Circuit:
- SPST SPDT
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X20X10 cm
- Gross weight per batch:
- 2.5 kg
- Package Type:
- 200pcs/bags
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
