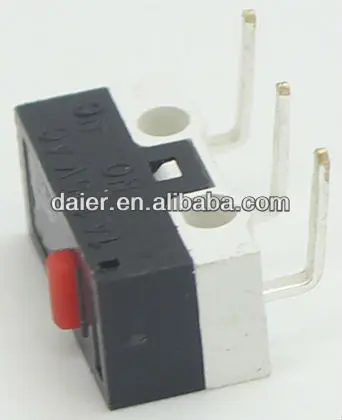

mouse micro momentary switch with no lever bent pcb terminals,KW10-Z0R
micro momentary switch
1. Rating:KW10-Z0R
2.1A,125/250VAC 3A ,125/250VAC
3. 30,000 cycles
4.Certifiction:CE,UL,CQC

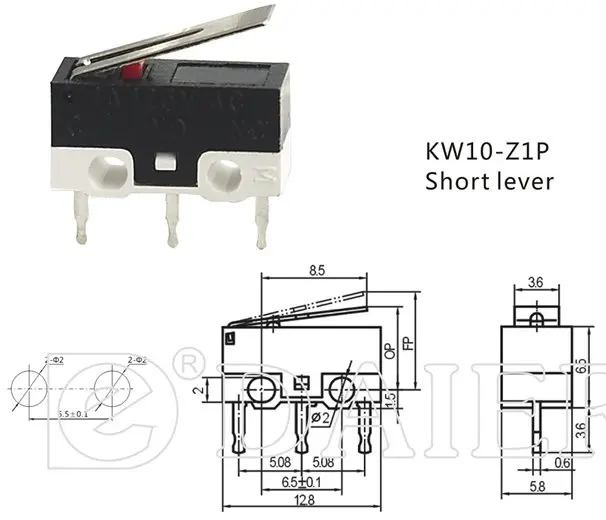

The miniature micro switches comes with a vertical, left angle or right angle PC pin termination.
The miniature snap action switch comes with a vertical, left angle or right angle PC pin termination. The applications for the TS switch include security and detection devices, appliances, instrumentation, power tools and more.
- The Main Thchnology Performane
enreItem
Value
Operating Speed
1mm~500mm(related with actuator forms)
Operating frequency
Mechanical 60cycles/min; Electrical 25cycles/min
Insulation resistance
≥100MΩ(500VDC)
Contact resistance
OF≤0.75N:≤30mΩ
OF≤0.75N:≤50 mΩ
Test voltage
Between terminals of the same polarity
AC 600V,50/60Hz,1min
Between current-carrying mental parts and ground, and between each terminal and non-current-carrying metal parts
AC 1000V,50/60Hz,1min
Vibration resistance
10~55Hz,1.5mm Double amplitude
Shock resistance
Malfunction:300/s²
(approx.30)max
Life
Mechanical≥1,000,000cycles
Electrical≥10,000cycles
Safety approvals
CE,UL,CQC
Specification
Micro Switch
Specification
Rating
1A 125V AC
Contact resistance
30mΩ max
Insulation resistance
100MΩ min at250V DC
Dielectric strength
AC 1000V for 1 min
Lifespan
30,000 Cycles
Practical temperature range
-25 to 65 degrees Celsius
[Warm Tips]All informations above are for reference only; Particulars of all items are base on individual specification.
- Features of 1a 125vac micro switch
1. small size
2.low current
3.long mechanical and electrical life
4.solder terminals amd PCB terminal
- The action sensitive subminiature switch of 1a 125vac micro switch
1).Subminiature, large current. With tiny contact clearance, quick action and high sensitivity and small action travel characteristics.
2).Long life
3).Various terminal
4).Various forms of movable arm
5).Applied in household appliances, audio and video equipment, computer, office automation equipment and communication equipment, etc.
- Application
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
- Others
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your
new inquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.

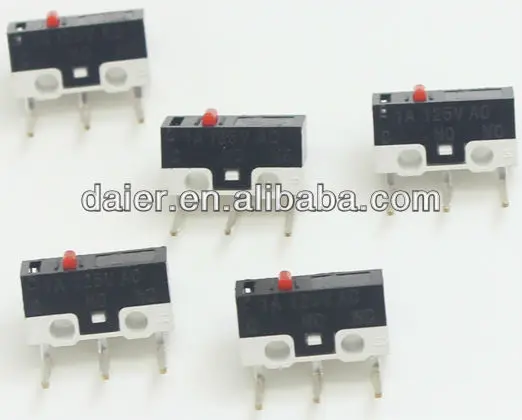

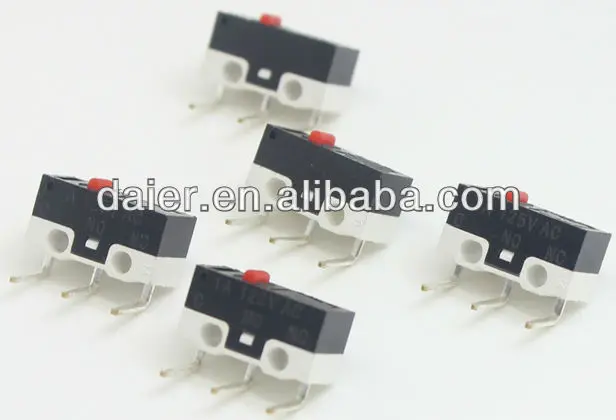

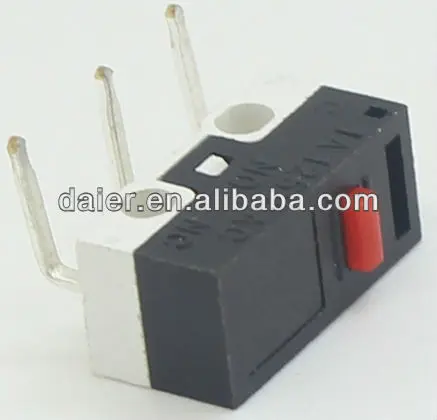

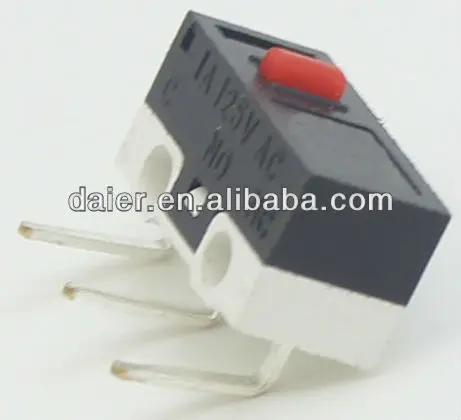

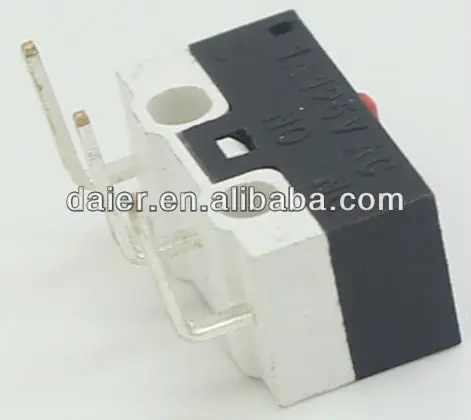

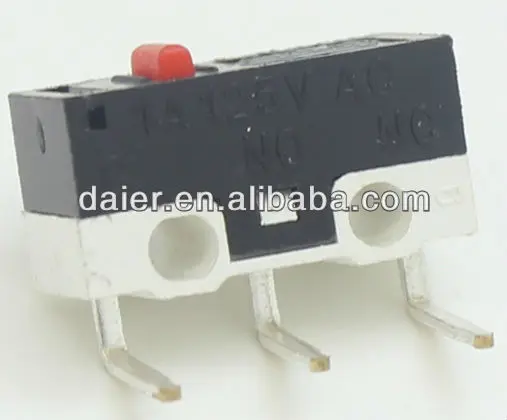

- PRODUCT SHOW
