Home > Products > WS2 10A 250VAC SPDT With Wire IP67 Waterproof Micro Switch

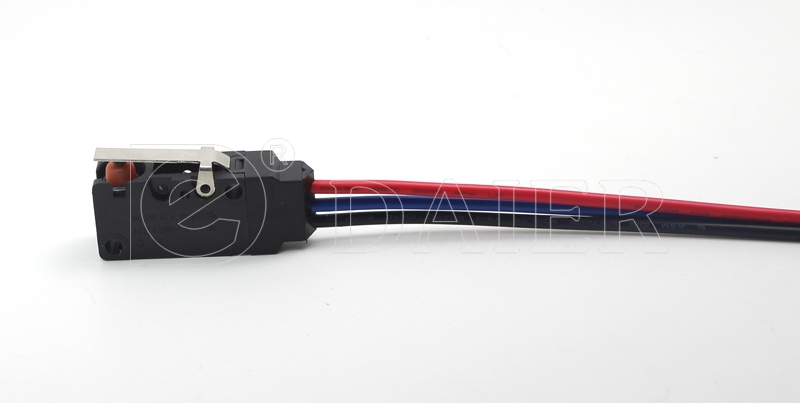

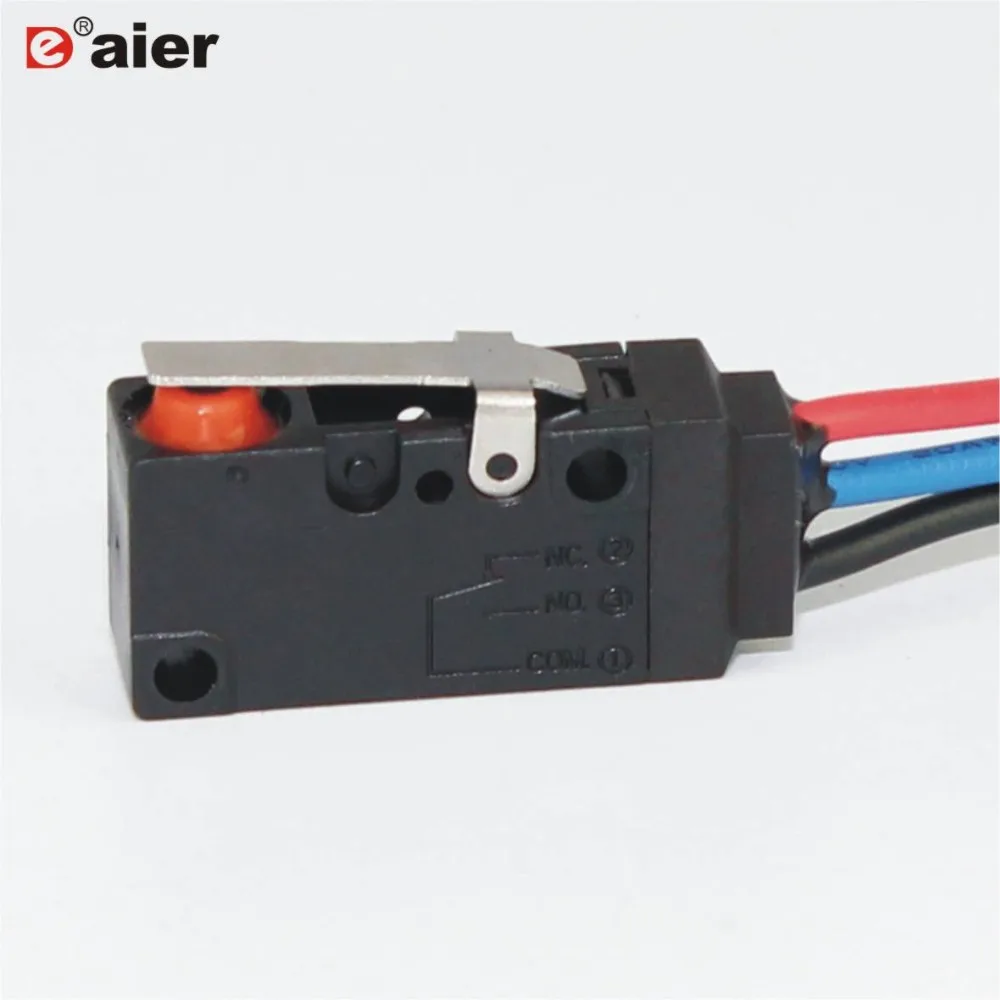

WS2 10A 250VAC SPDT With Wire IP67 Waterproof Micro Switch
Click on the image to view the original image
Product： views：2WS2 10A 250VAC SPDT With Wire IP67 Waterproof Micro Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:13
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
WS2-Z1-W200200
Max. Current:
10A
Max. Voltage:
250VAC
Operating Temperature:
T85
Protection Level:
IP67
Item number:
WS2-Z1-W200200
Wire Length:
200mm
Function:
SPDT
Terminal:
With Wire
Lever:
Short Lever
Operating Force:
2N
Contact Resistance:
30mΩ max
Insulation Resistance:
500VDC 100MΩ min
Operation Temperature:
-25°C~+85°C
Electric life:
10,0000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
31X17X2 cm
Gross weight per batch:
2.0 kg
Package Type:
50pcs of WS2 10A 250VAC SPDT With Wire IP67 Waterproof Micro Switch
Lead Time:
Quantity(Piece)1 - 50000>50000
Est. Time(days)7To be negotiated
Product Descriptio
 Product Name
WS2 10A 250VAC SPDT With Wire IP67 Waterproof Micro Switch
Rating
10A 125/250VAC
Connect Forms
SPDT IP67 Waterproof micro switch
Degree  Protection
IP67
Terminal Type
Wire Type
Actuator Forms
0:No Lever
A1/1:Short Lever
A2/2:Long Lever
A3/3:Middle Lever
A4/4:Short Roller
A5/5:Long Roller
A6/6:Arc Lever
Operating Force
050:0.5N
100:1N
150:1.5N
200:2N
300:3N
Note:If it is not standard operating force,indicate with the upper limit.
Products Show

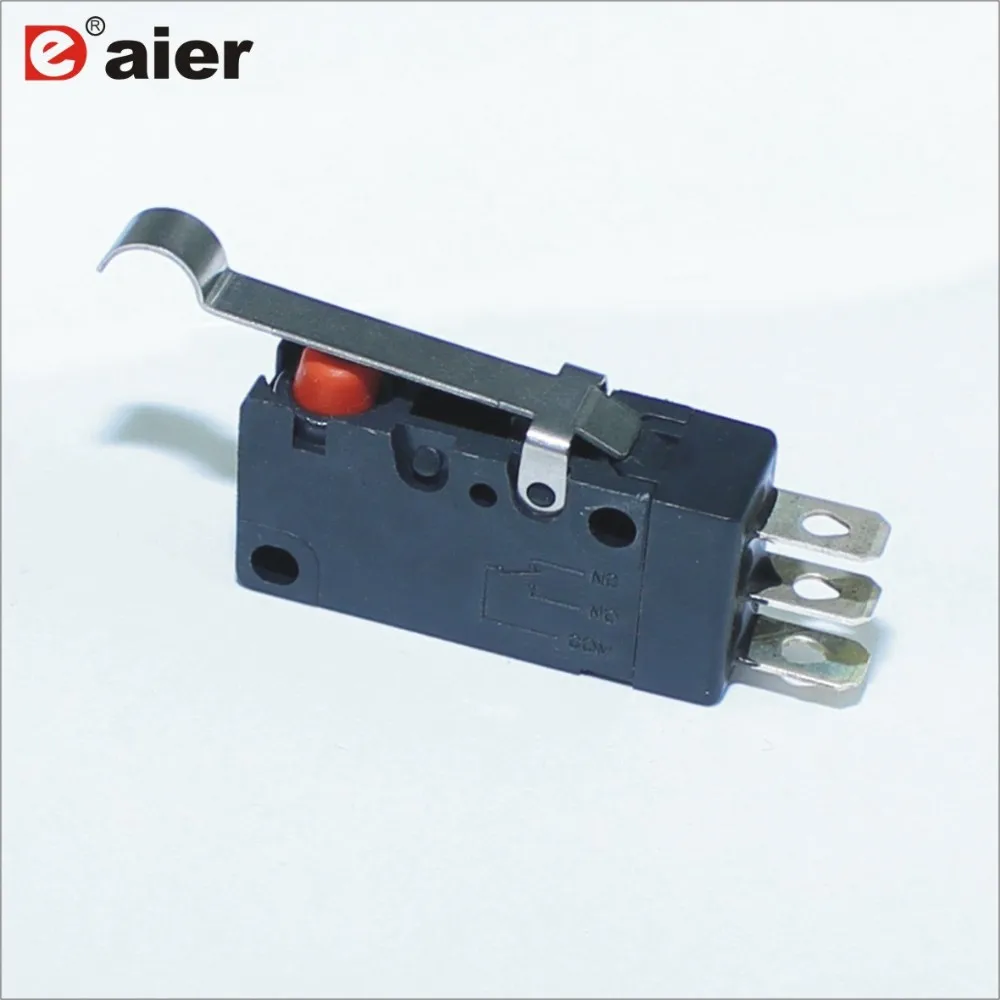

WS2 Series Micro Switch:
This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.
The degree protection provided by enclosure can be reached IP67.
Electrical ratings from low levels up to 15 Amps, and a broad range of operating forces from 50GF to 400GF.



The micro switch terminal styles include PCB through hole, quick connect, screw and solder.
Mounting options include vertical, right angle, PCB and snap-in mounting.
They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
