Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KW4-OZ
- Max. Current:
- 6A
- Max. Voltage:
- 125VAC
- Operating Temperature:
- -25℃~+85℃
- Protection Level:
- IP40
- Current:
- 3A~6A
- Voltage:
- 125/250VAC
- Contact Resistance:
- ≤50m Ω
- Insulation Resistance:
- ≥100M Ω (500VDC)
- Dielectric Strength:
- 1000VAC 1Minute
- Ambient Humidity Used:
- <85% RH
- Electrical Life:
- 100,000 Cycles
- Mechanical Life:
- ≥100,000 Cycles
- Color:
- Black
- Application:
- Automation Equipment

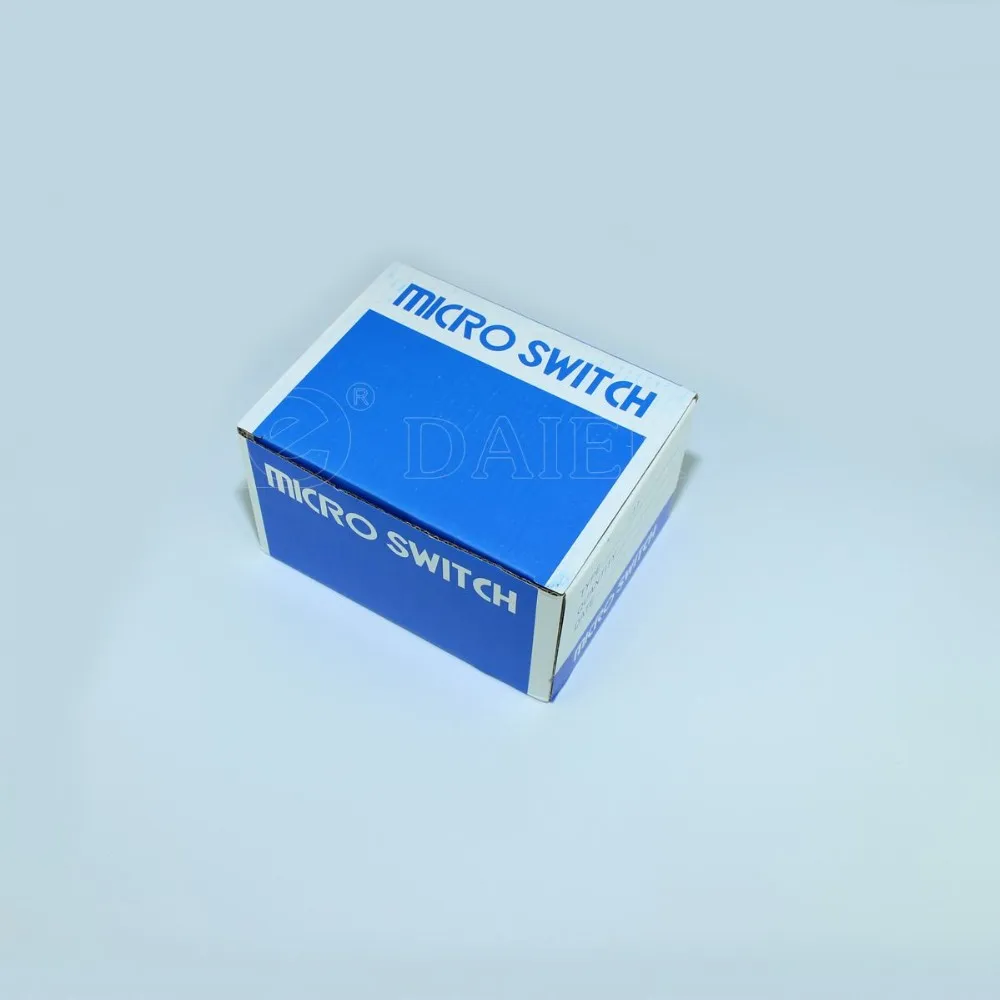

Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 26X15X8 cm
- Gross weight per batch:
- 2.98 kg

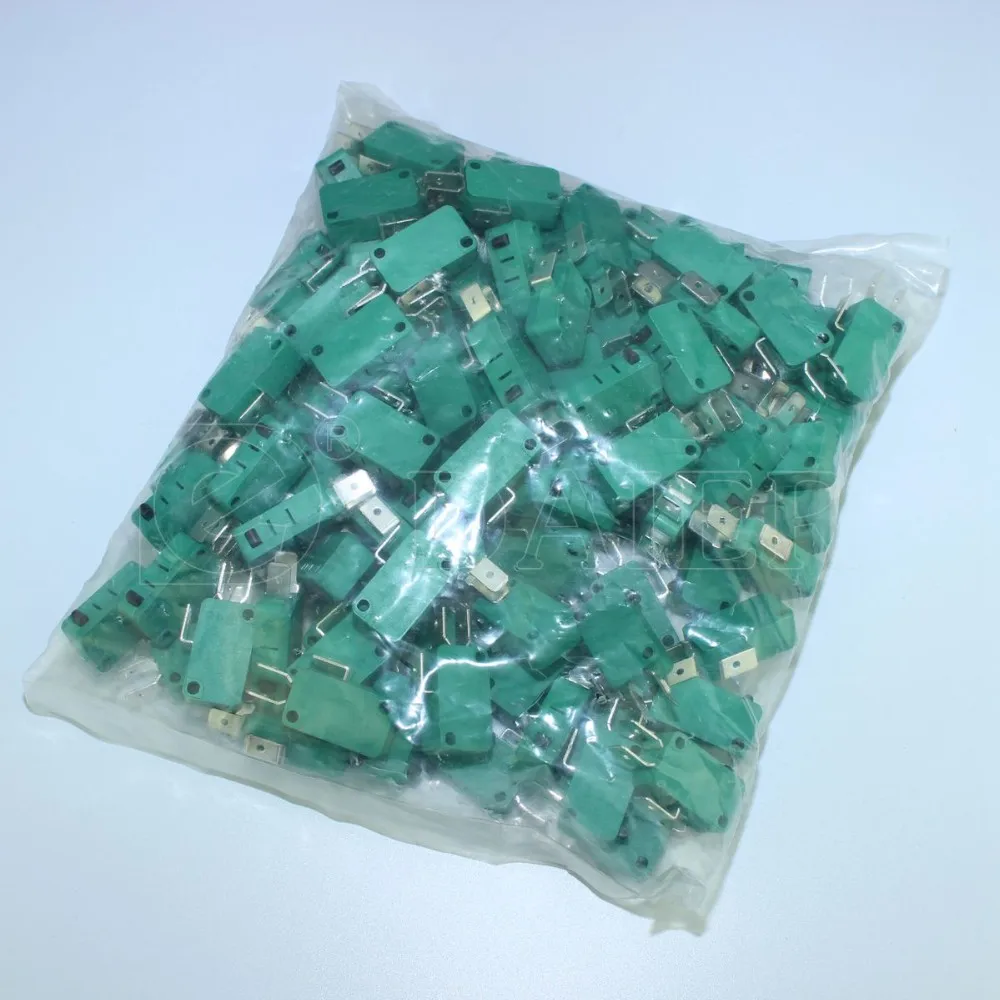

- Package Type:
- 100pcs of Miniature 3Pins SPDT No Lever T85 Micro Switch 3A 250V
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
