Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- Z-15HW78-B
- Max. Current:
- 15A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- T85
- Protection Level:
- IP40
- Item number:
- Z-15HW78-B
- Function:
- SPDT
- Switch Operation:
- OFF momentary ON
- Lever:
- Super Longlever
- Rating:
- 15A 125V/250V
- Contact Resistance:
- 30mΩ max
- Insulation Resistance:
- 500VDC 100MΩ min
- Operation Temperature:
- -25°C~+85°C
- Mechanical Life:
- 10,0000 Cycles
- Electric life:
- 10,000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 100pcs of High Quality Z-15 Series 12V Limit Switch Long Lever
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 7 To be negotiated
Product Description
Products Show

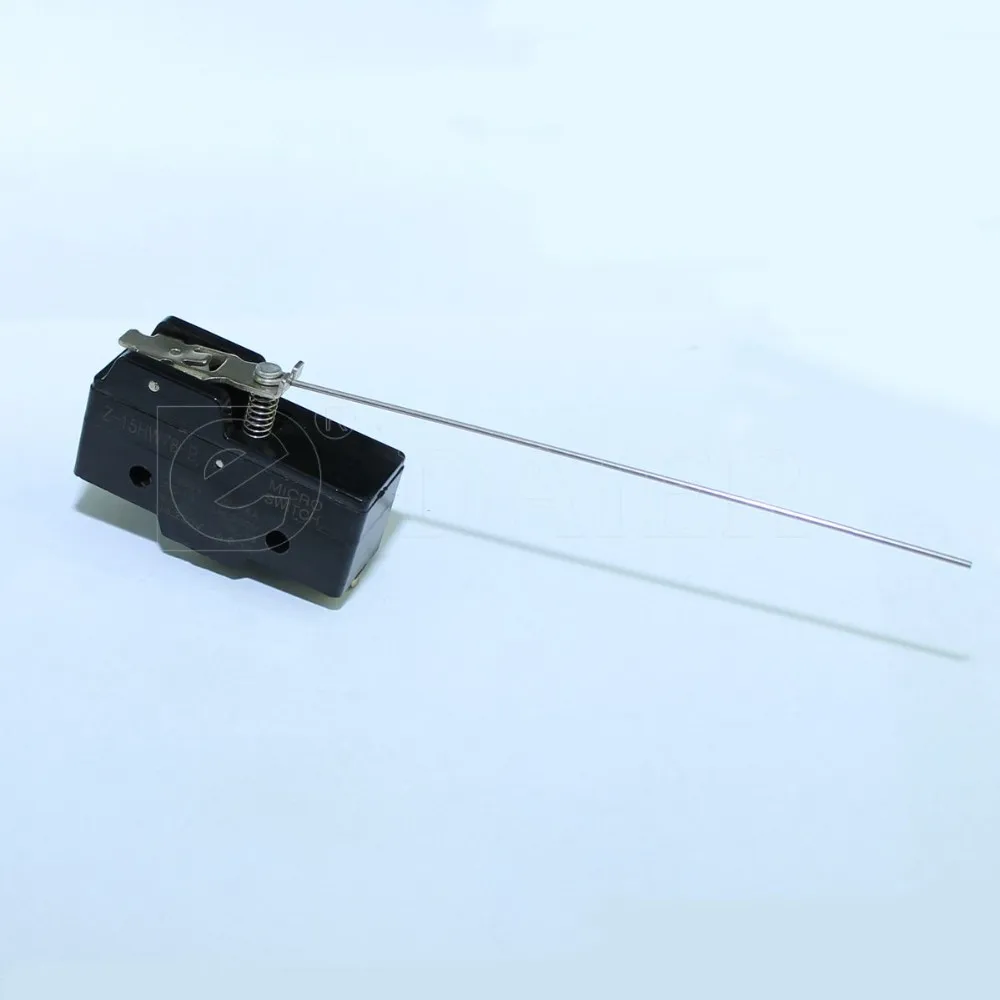

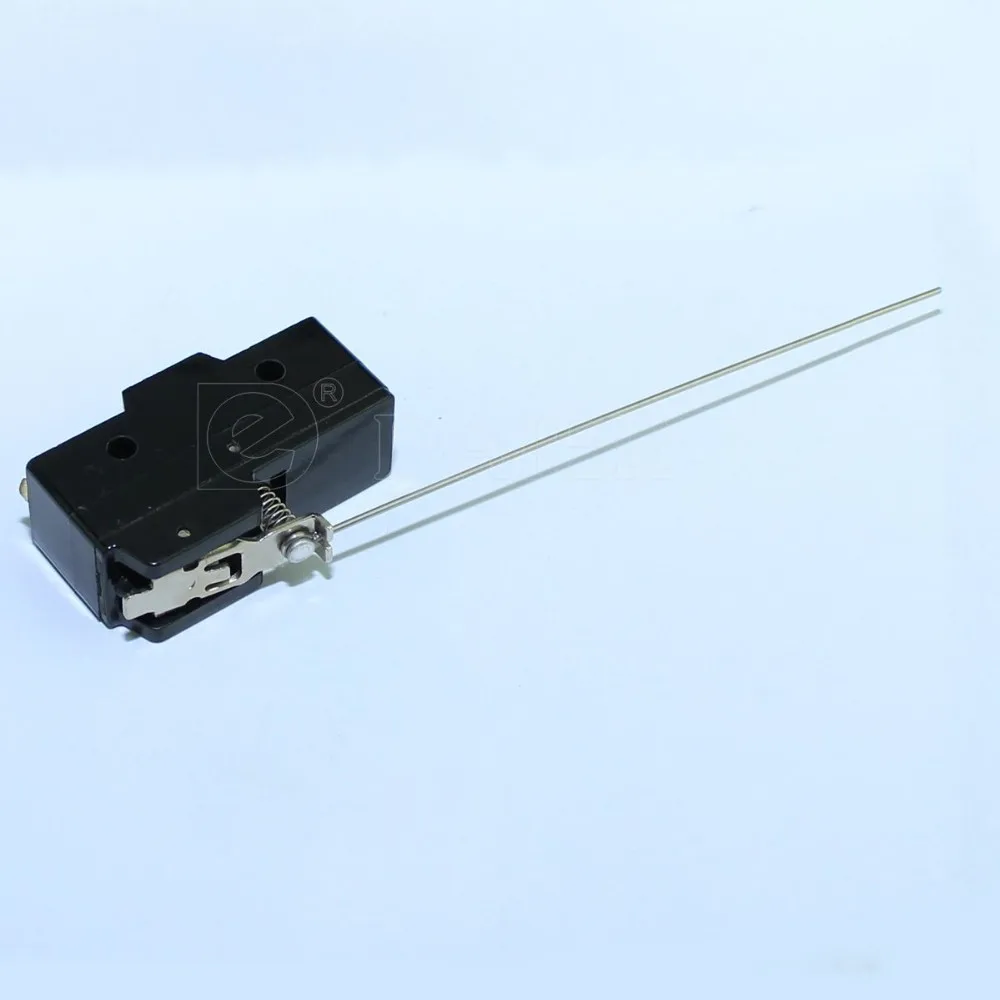

Z-15HW78-B:
The Z-15HW78-B Magnetic micro switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.

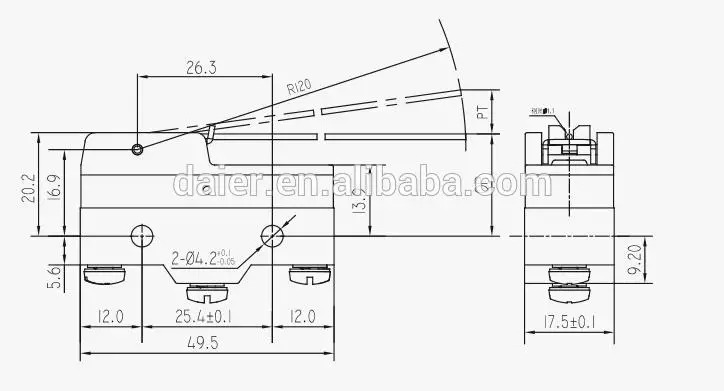

Z-15HW78-B
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.
