Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- D4MC-5000
- Max. Current:
- 10A
- Max. Voltage:
- 250VDC
- Operating Temperature:
- -25℃~+80℃
- Protection Level:
- IP00
- Item number:
- D4MC-5000
- Rating:
- 5A 250VDC / 10A 125VDC
- Function:
- SPDT
- Switch Operation:
- OFF momentary ON
- Lever:
- Plunger Lever
- Housing Material:
- Nylon 66
- Insulation Resistance:
- >100MΩ
- Operation Temperature:
- -25°C~+80°C
- Mechanical Life:
- 10,0000 Cycles
- Electric life:
- 10,000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.8 kg

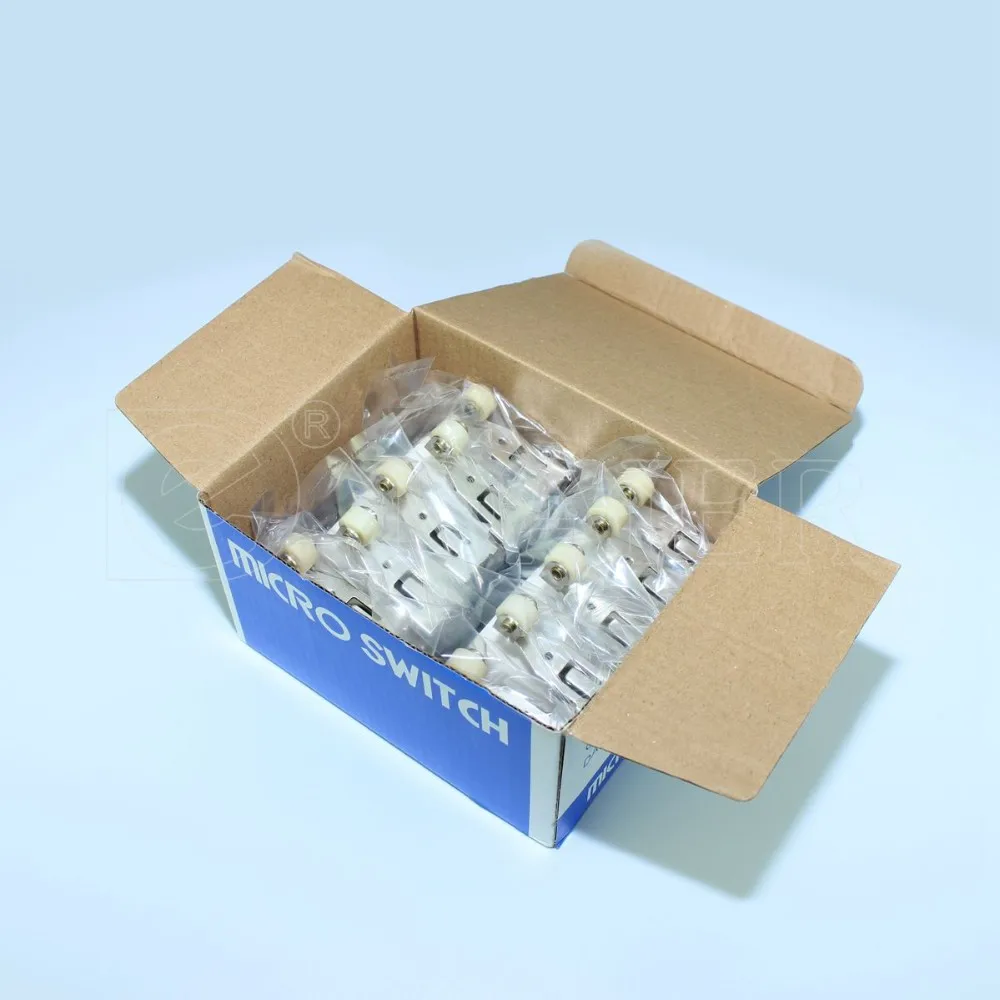

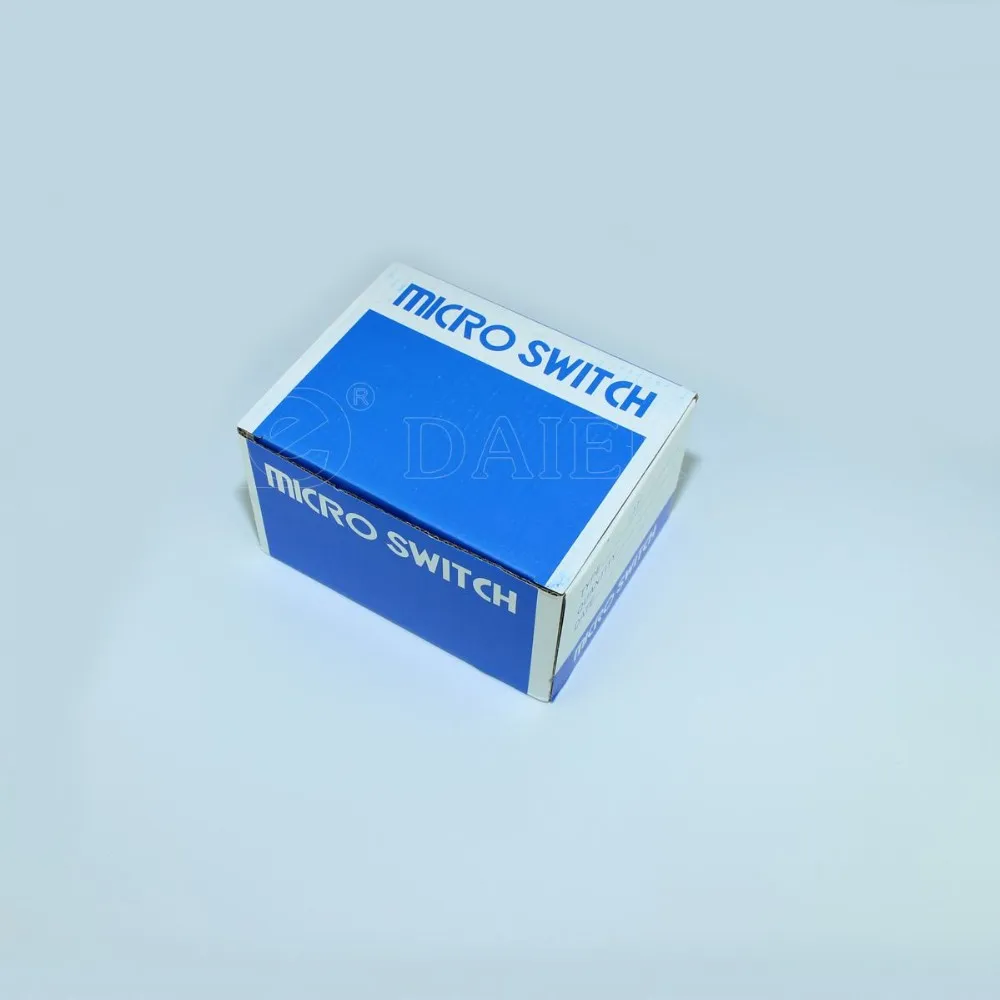

- Package Type:
- 20pcs of D4MC-5000 T80 SPDT ON OFF Momentary Micro Switch Plunger Type
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 7 To be negotiated
Product Description
Products Show

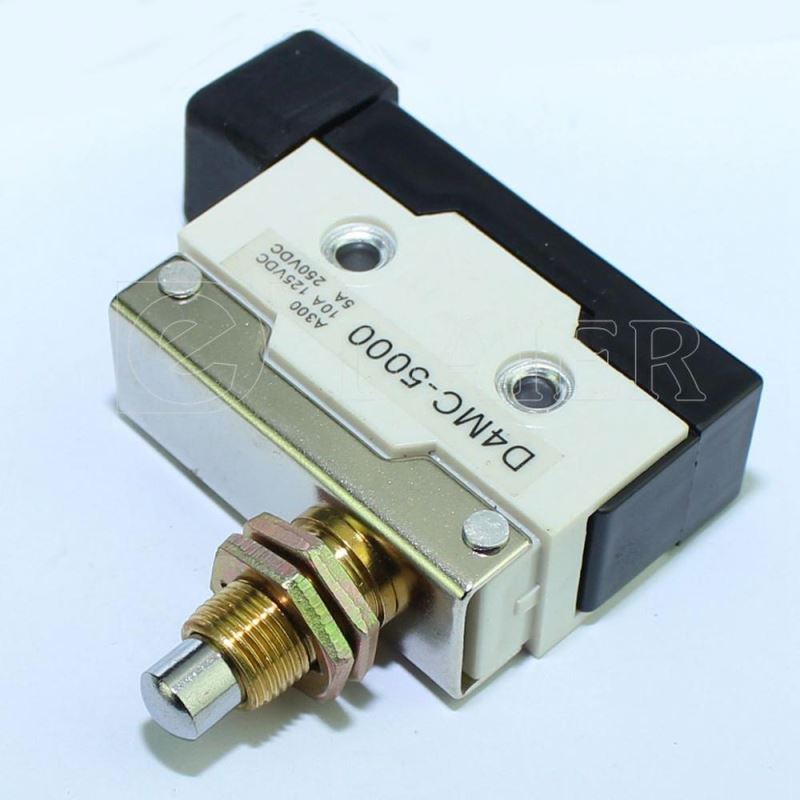

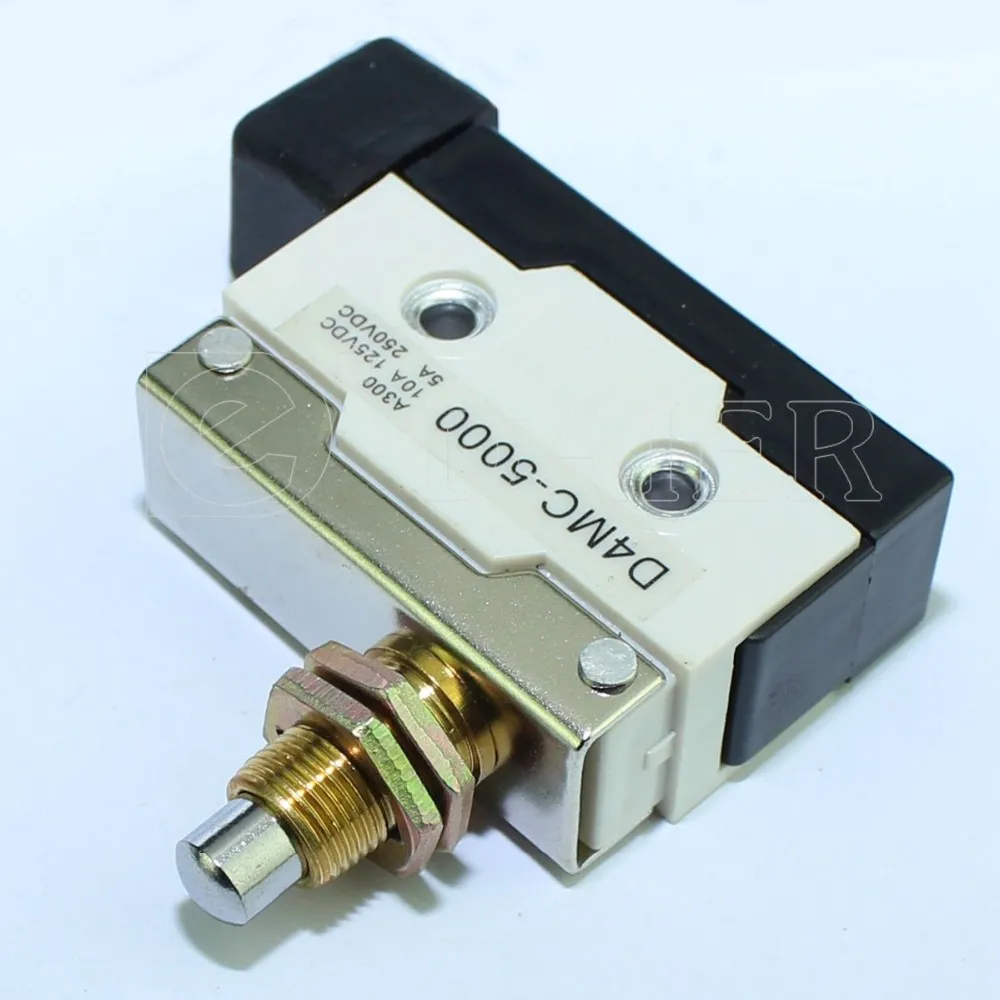

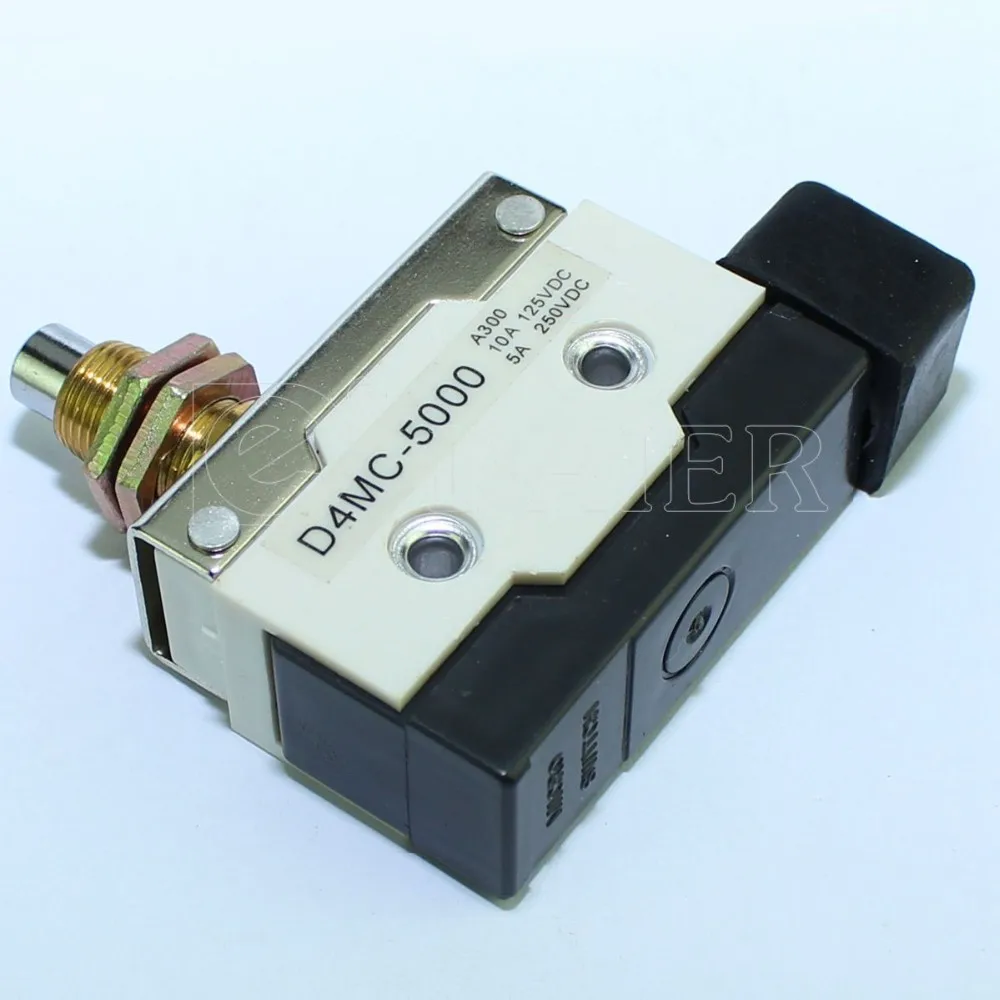

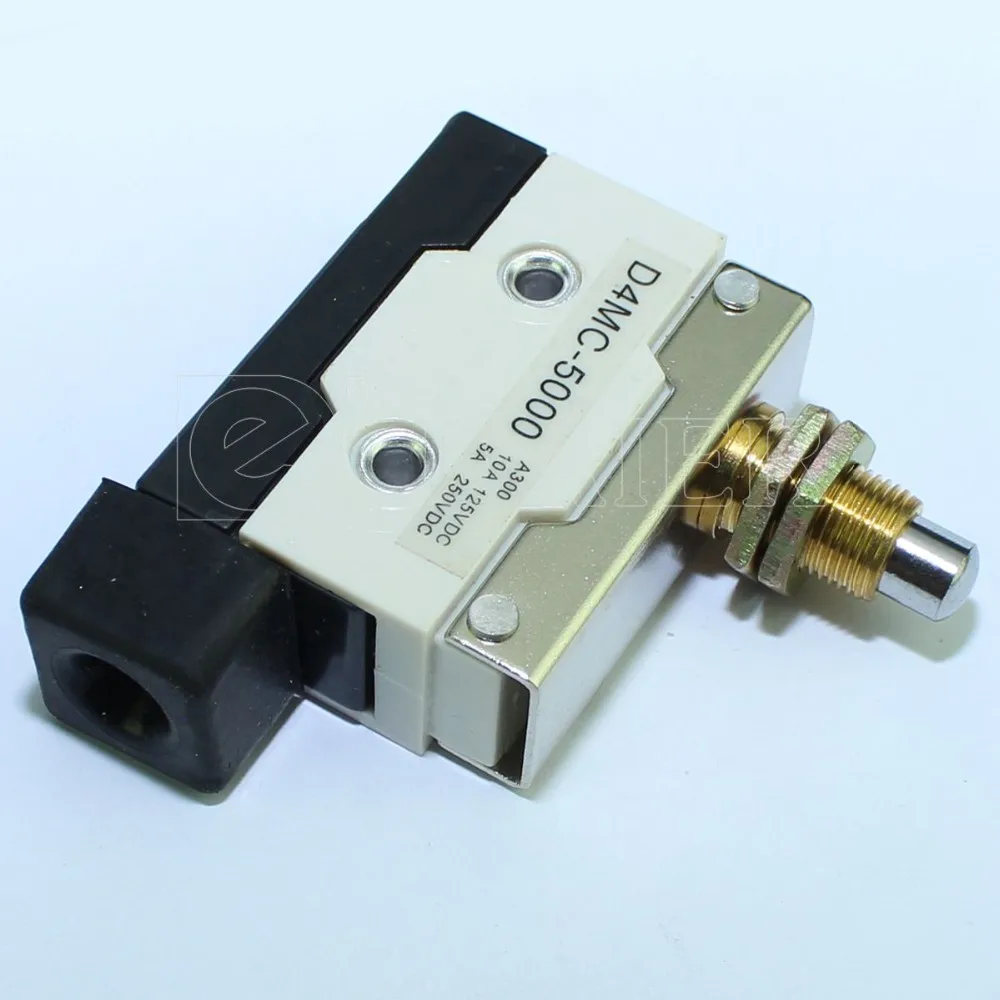

D4MC-5000 safety micro switch:
The D4MC-5000 safety micro switch of basic switches in plastic housing provide the same electrical and mechanical switching capability and lifetime as standard limit switches.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types.
D4MC-5000 safety micro switch:
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety terminal protective cover is available.

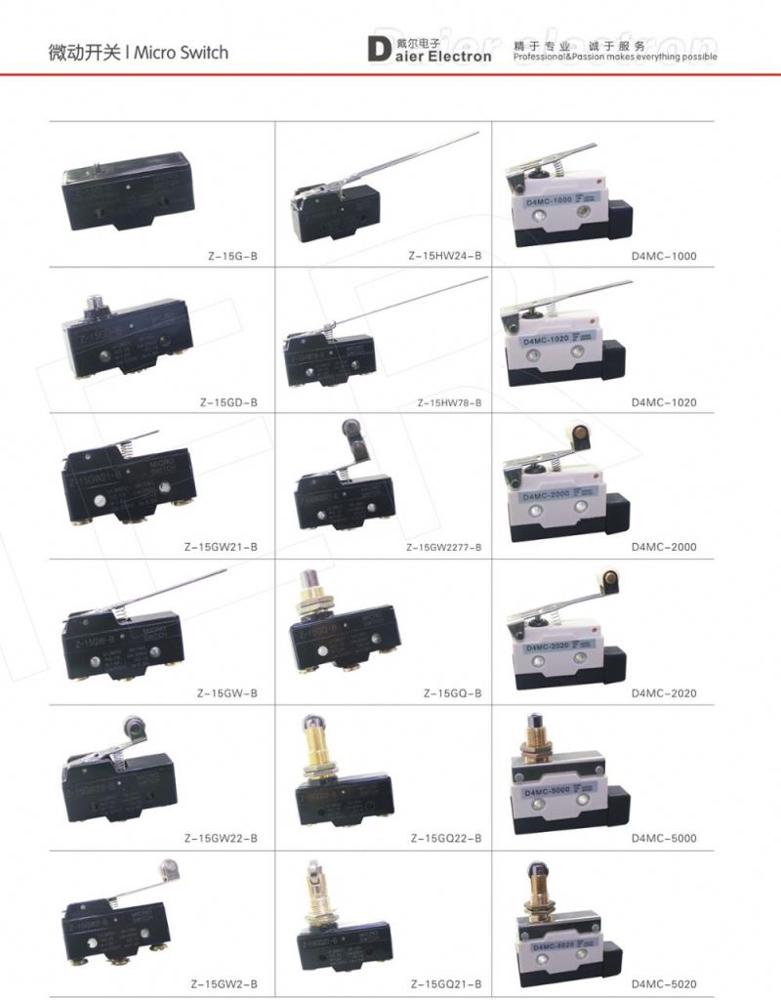

Related Roducts
KW1-103-Z1A200
KW1-103-Z5A200
KW1-103-Z7A200
Z-15GW21-B
Z-15GD-B
D4MC-1000
