Overview
Quick Details
- Brand Name:
- DAIER
- Model Number:
- KW4-Z5F
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- -25 ~+80°C
- Protection Level:
- IP40
- Standard:
- IEC standard
- Certificate:
- CE,Rohs,CQC
- Voltage:
- 125/250VAC
- Contact Resistance:
- 30m ΩMAX
- Insulation Resistance:
- 500VDC 100M Ω min
- Dielectric Strength:
- 1500VAC, 1Minute
- Ambient Temperature:
- -25-80°C
- Electrical Life:
- 100,000 Cycles
- Item:

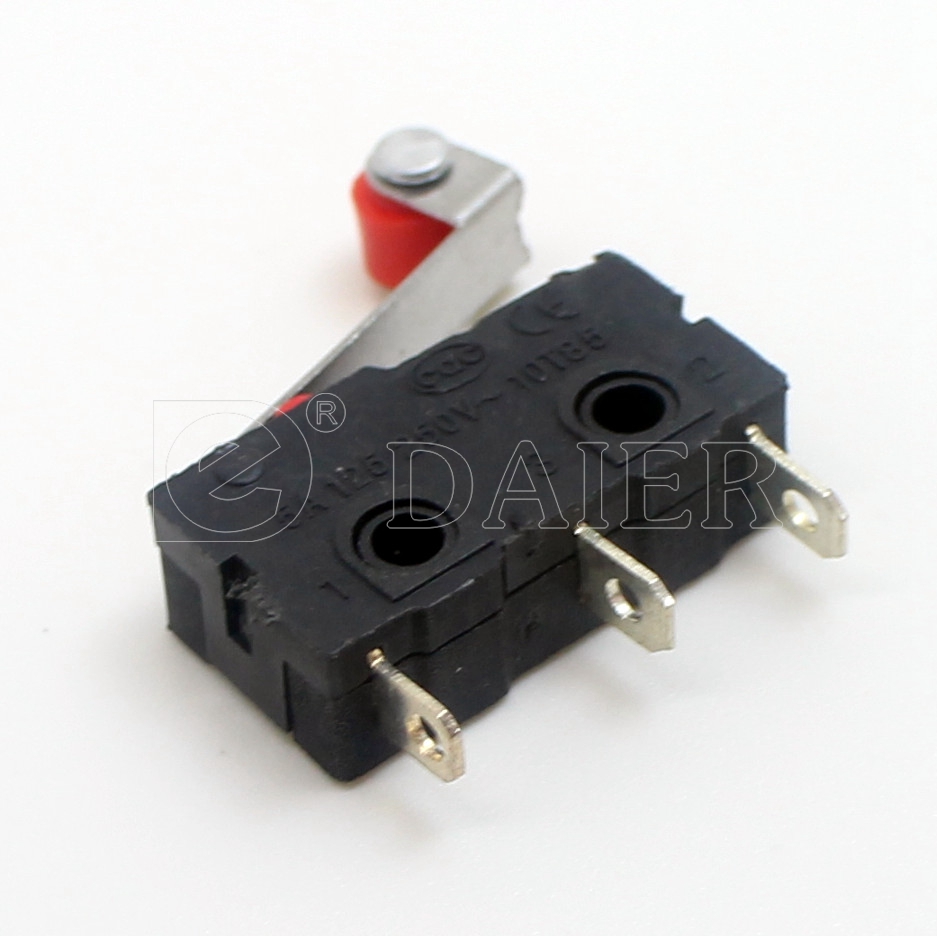

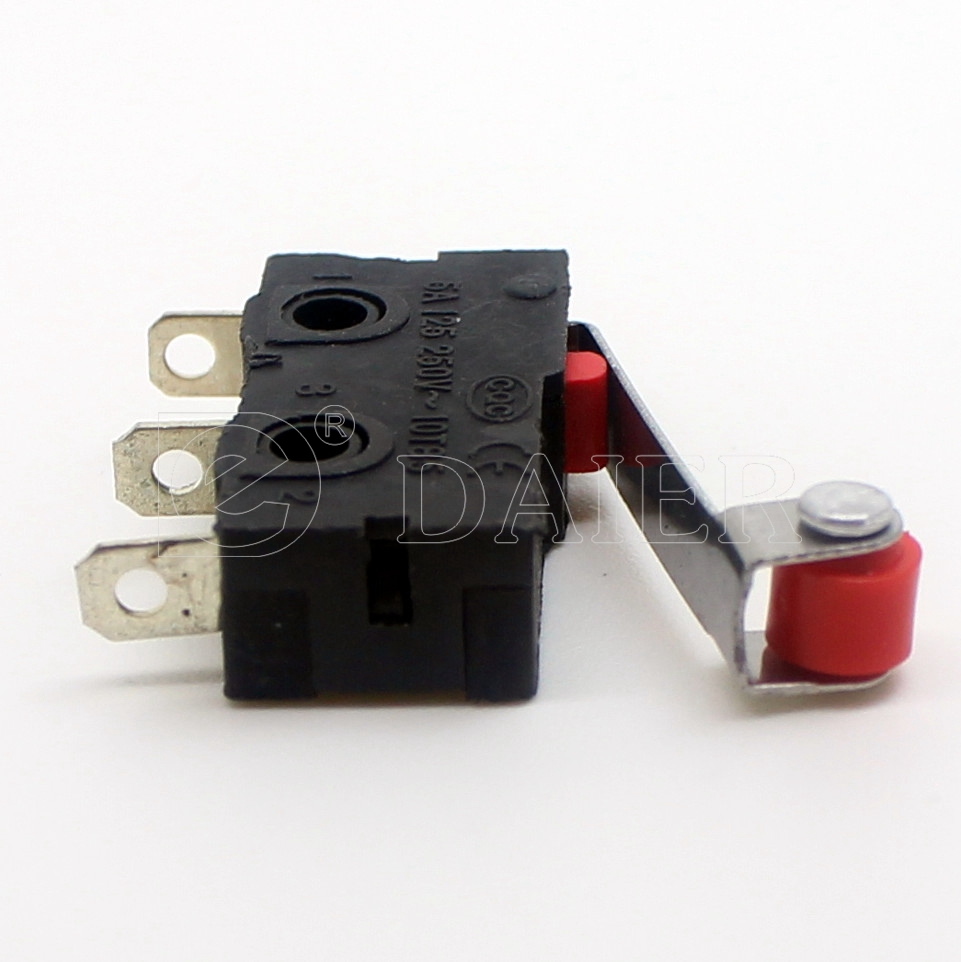

- Roller lever 5A 125/250VACmicro switch
- Size:
- Micro switch
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 28X10X10 cm
- Gross weight per batch:
- 3.2 kg
- Package Type:

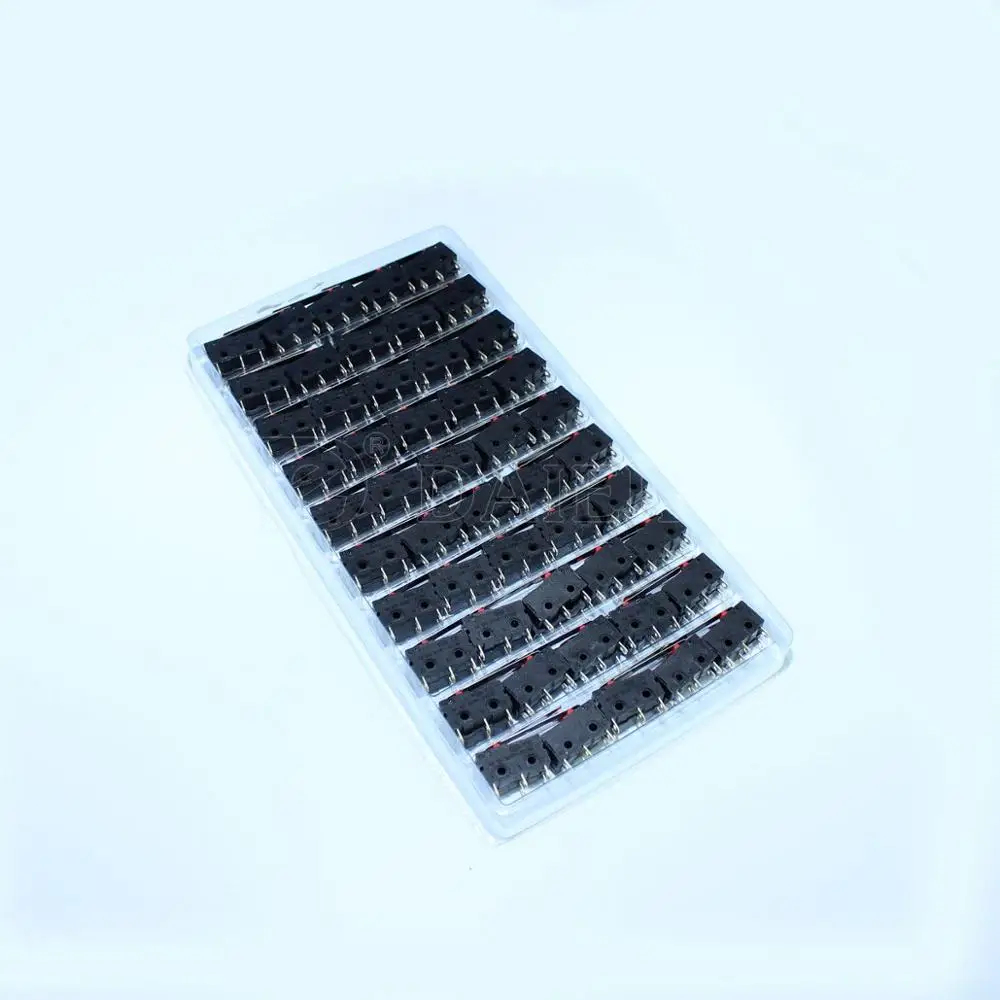

- 1000PCS/PACK for Roller lever 5A 125/250VACmicro switch
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
