Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:

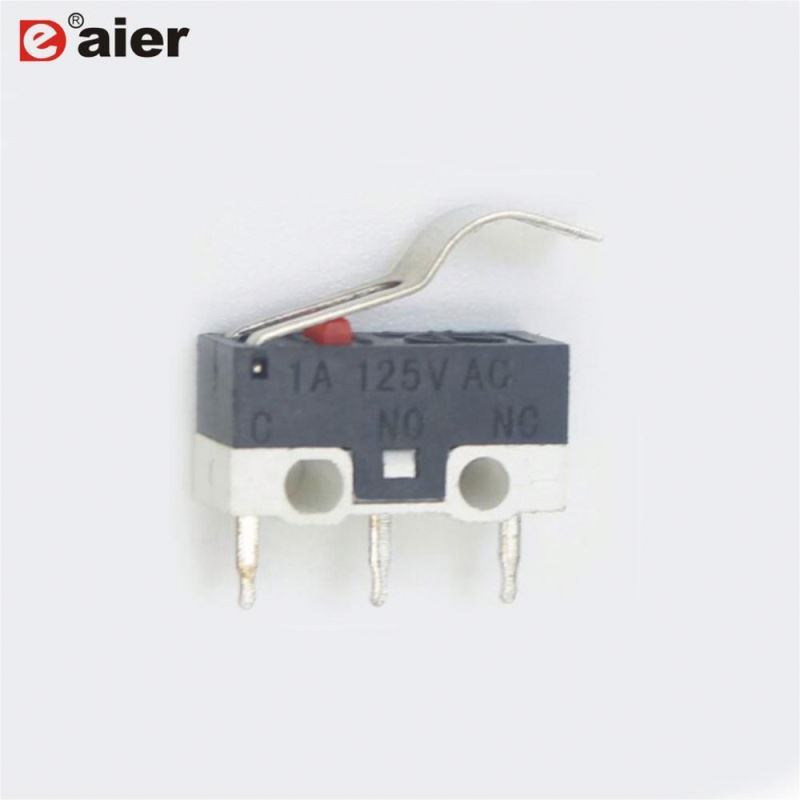

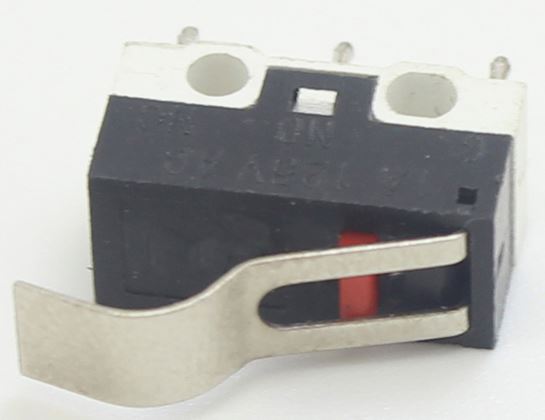

- KW10-Z6P
- Max. Current:
- 1A
- Max. Voltage:
- 125/250VAC
- Operating Temperature:
- -25℃~+85℃
- Protection Level:
- IP40
- Color:
- black&white
- Function:
- SPDT 3PIN
- Contact Resistance:
- 30 M Ω max
- Insulation Resistance:
- 250VDC 100 M Ω min
- Dielectric strength:
- 1000VAC,1Minute
- Circuit:
- SPDT
- Characteristics:
- Long life,high reliability , A Variety of contact terminals
- Approvals:
- CE,UL,CQC
- Dimensions:
- 19.8x10.8x6.4 mm
- Electrical life:
- 30,000Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X6 cm
- Gross weight per batch:
- 0.9 kg
- Package Type:
- 1000pcs/bag,20000pcs/carton
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated
