Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- KW1-103-D13B200
- Max. Current:
- 16A
- Max. Voltage:
- 250VAC
- Operating Temperature:
- T85
- Protection Level:
- IP40
- Item number:
- KW1-103-D13B200
- Function:
- SPST
- Terminal:
- Quick-connect terminal #250
- Lever:
- Arc Roller lever
- Operating Force:
- 200gf
- Contact Resistance:
- 30mΩ max
- Insulation Resistance:
- 500VDC 100MΩ min
- Operation Temperature:
- -25°C~+85°C
- Mechanical Life:
- 10,0000 Cycles
- Electric life:
- 10,000 Cycles
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X10X10 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- 100pcs of KW1-103 1NO 2PIN SPST Arc Roller Lever 16A 40T85 Microswitch With Roller

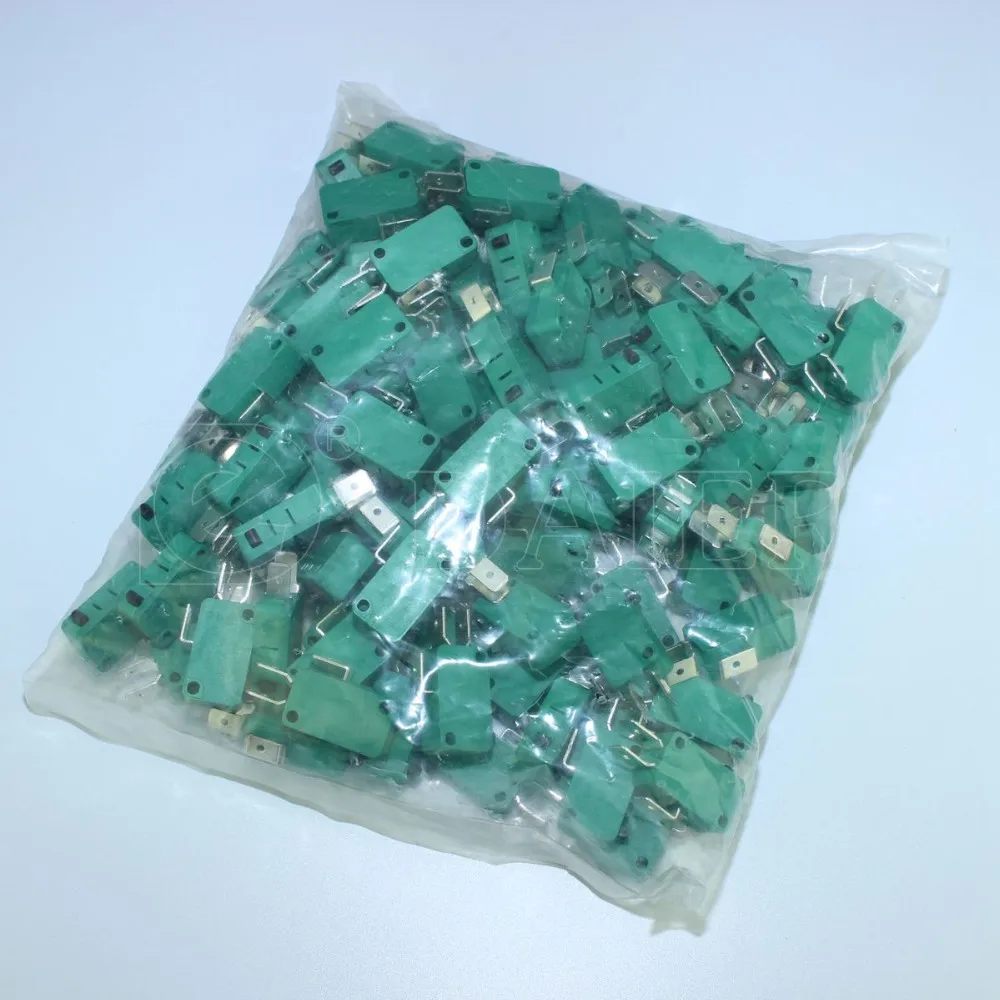

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 7 To be negotiated
Product Descriptio

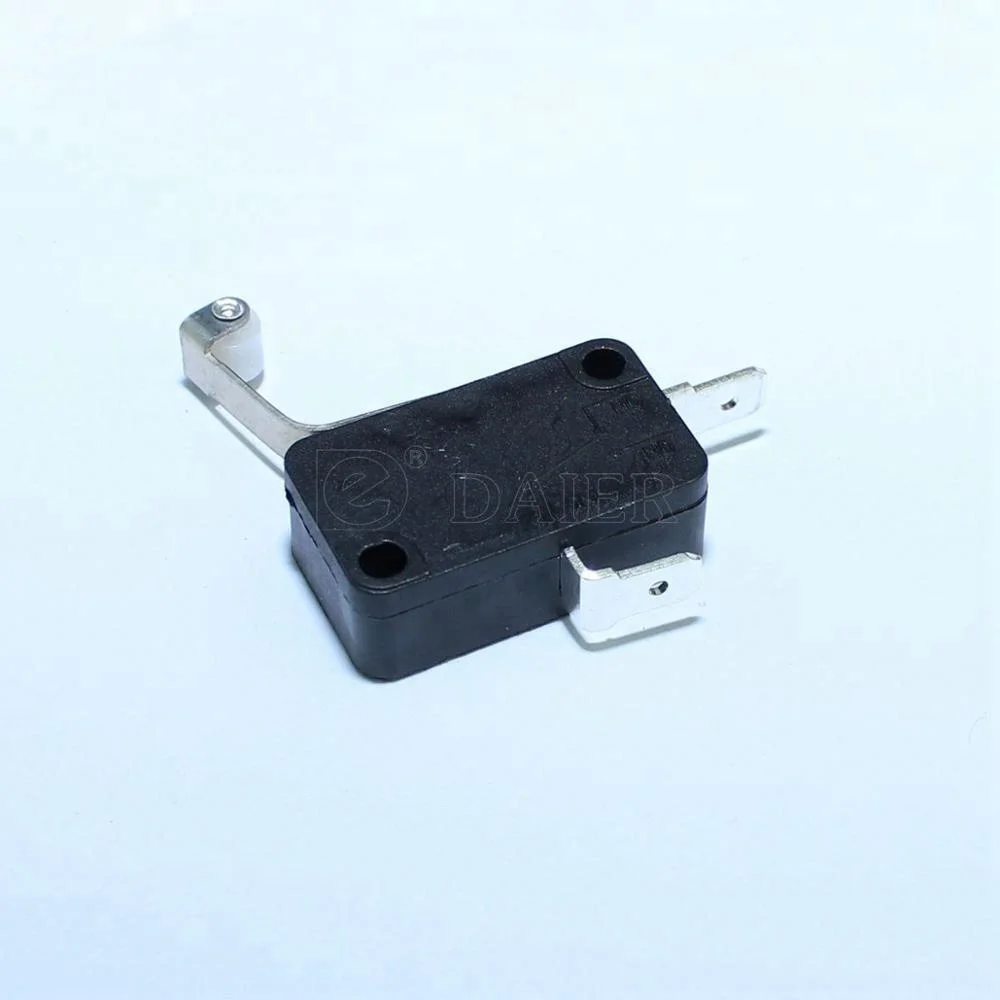

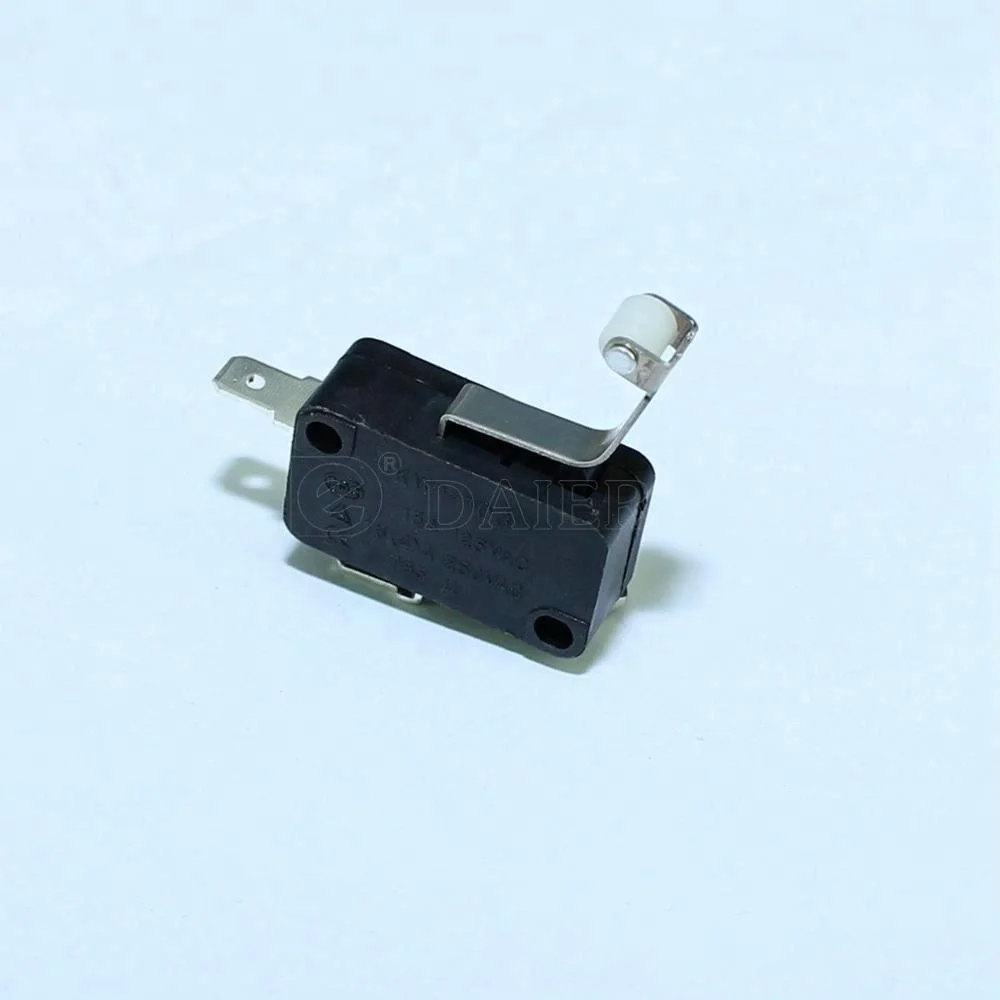

Products Show

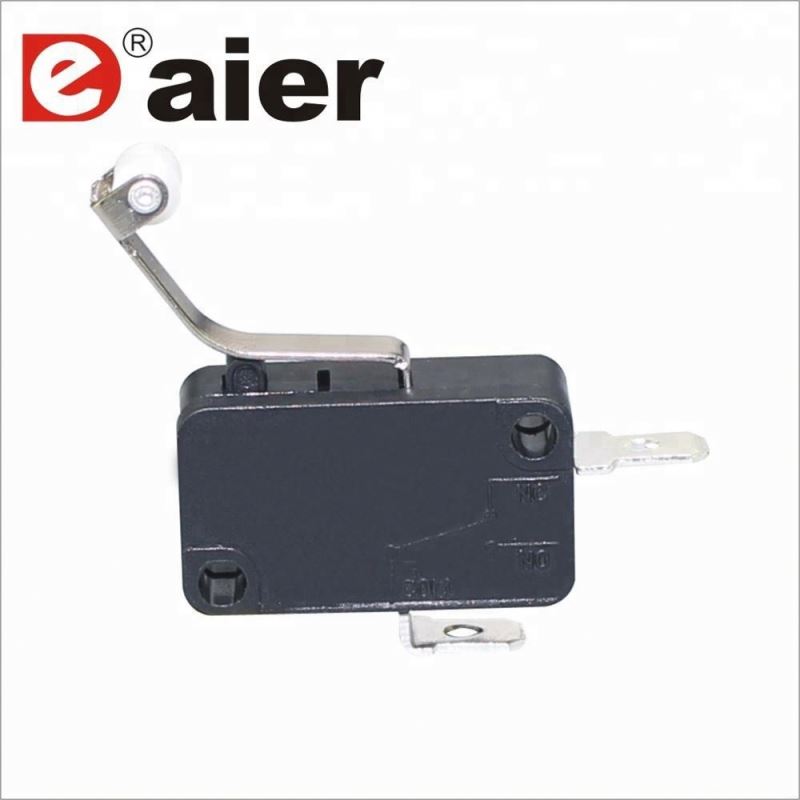

KW1-103 Series Micro Switch:
This is a high quanlity micro switch which have a variety of actuator, like no lever, short lever, middle lever, long lever, roller lever and arc lever.
The degree protection provided by enclosure can be reached IP40.
Electrical ratings from low levels up to 16 Amps, and a broad range of operating forces from 50GF to 400GF.
The micro switch terminal styles include PCB through hole, quick connect, screw and solder.
They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.
