Home > Products > Black Inner 6mm 6.4mm 15x23.8mm Rotary Switch Audio Adjustment Round Bakelite Knob
Black Inner 6mm 6.4mm 15x23.8mm Rotary Switch Audio Adjustment Round Bakelite Knob
Click on the image to view the original image
Product： views：2Black Inner 6mm 6.4mm 15x23.8mm Rotary Switch Audio Adjustment Round Bakelite Knob
Branch： DAIER
Type： Effects
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
MF-B01
Product name:
Black 6.4mm Rotary Switch Audio Adjustment Round Bakelite Knob
Type:
Effects
Height:
15MM
Outer diameter:
23.8MM
Shaft Hole Diameter:
6.4MM/6.0MM
Set Screw:
Yes
Material:
Bakelite
Color:
BLACK
Usage:
Potentiometer
OEM:
Accepted

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X16X6 cm
Gross weight per batch:
0.8 kg
Package Type:
100PCS per plastic box of Black Inner 6mm 6.4mm 15x23.8mm Rotary Switch Audio Adjustment Round Bakelite Knob
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Product Name
Black Inner 6mm 6.4mm 15x23.8mm Rotary Switch Audio Adjustment Round Bakelite Knob
Color
BLACK
Size
15X23.8MM
Application
Effects
Material
Bakelite

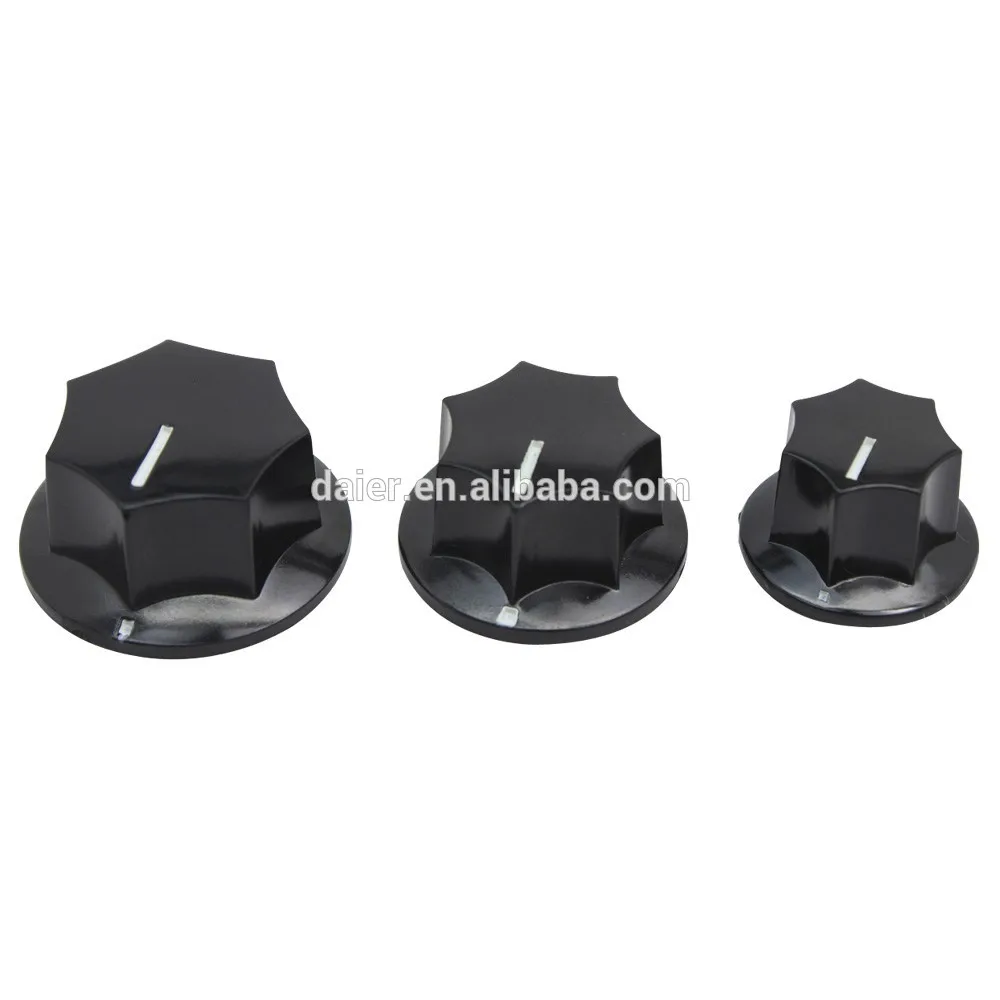

Products Show

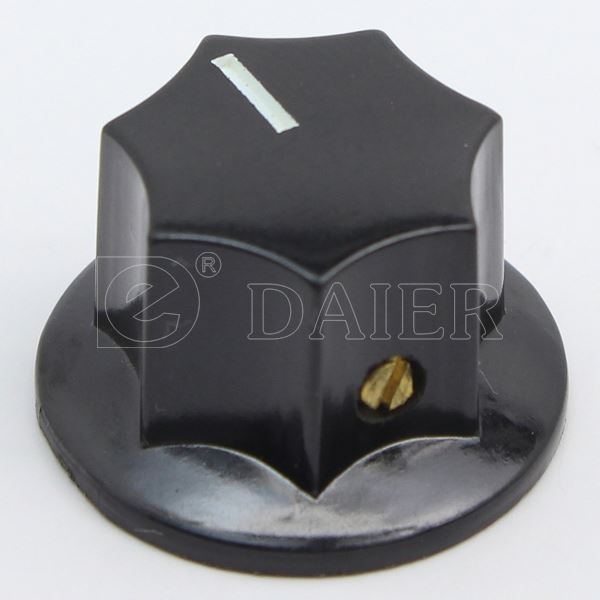

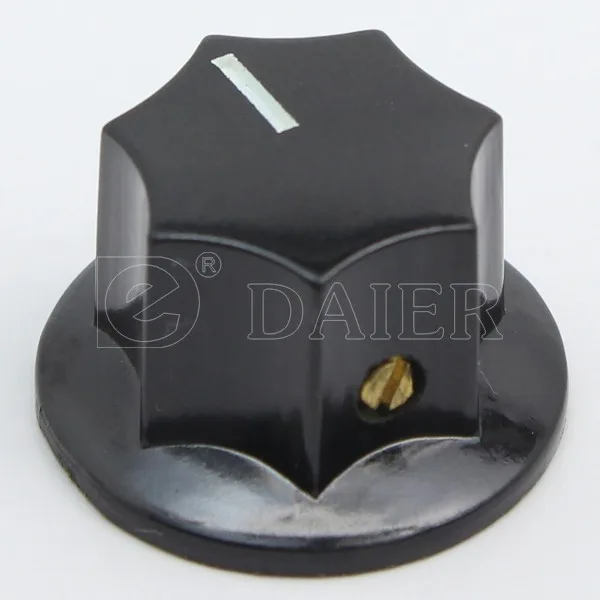

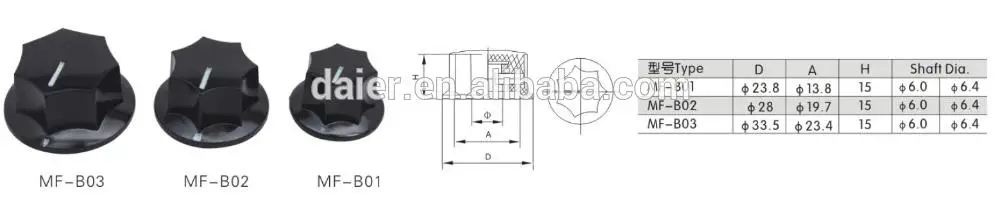

MF-B01


This type knob with a white line indicator on top and a small


dot on the skirt. These knobs include a set screw and are


intended for use on shafts that have a flattened area .

MF-B01


For this knob that"s a common replacement part the pedals


that have smooth-shaft pots with screw fix.

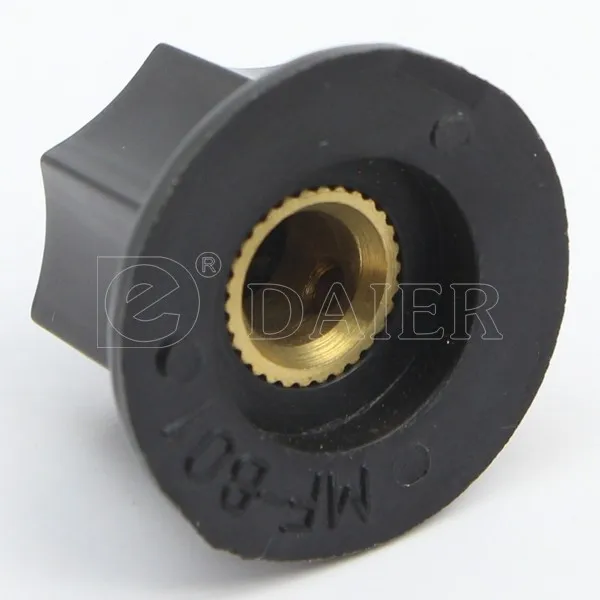

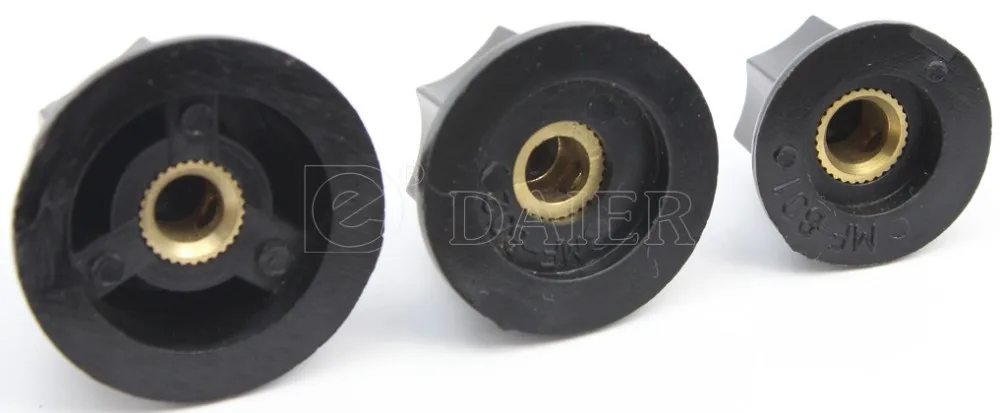

There are two kinds of shaft for this knob.

6.35mm and 6.0mm shaft with brass insert and set screw.
