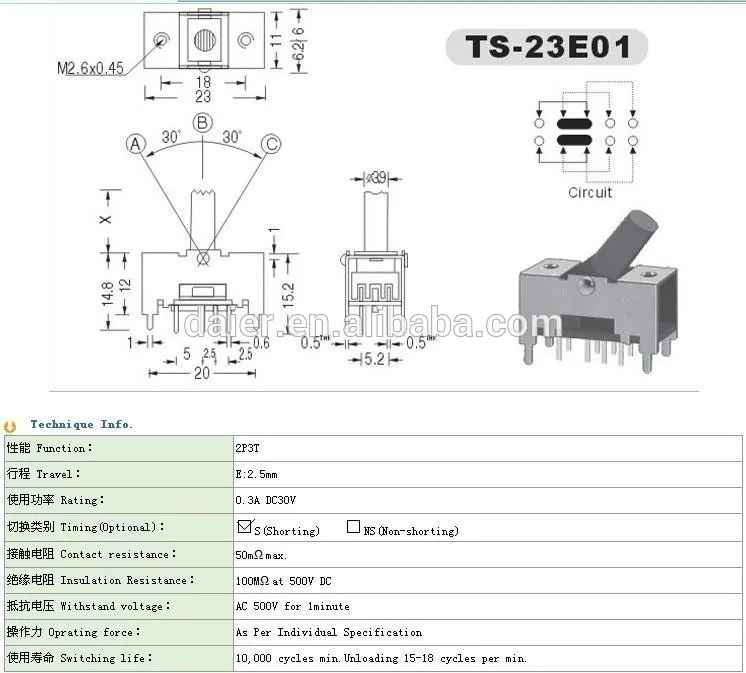

TS-23E01 2P3T 8PIN Slide Switch with 15mm Aluminum Actuator
Click on the image to view the original image
Product： views：2TS-23E01 2P3T 8PIN Slide Switch with 15mm Aluminum Actuator
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
TS-23E01
Max. Current:
0.3A
Max. Voltage:
30VDC
Mechanical Life:
10000 Cycles
Rating:
0.3A 30VDC
Handle Material:
Aluminum
Handle Height:
15MM
Function:
2P3T
Terminal:
PCB Terminal
Pin Number:
8 Pin
Free sample:
Available
OEM&ODM:
Yes
Packing:
Bulk Packing
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X18X7 cm
Gross weight per batch:
2.0 kg
Package Type:
500pcs a box of TS-23E01 2P3T 8PIN Slide Switch with 15mm Aluminum Actuator
Lead Time:
Quantity(Piece)1 - 50000>50000
Est. Time(days)7To be negotiated
Product Description
Product Name
TS-23E01 2P3T 8PIN Slide Switch with 15mm Aluminum Actuator
Rating
0.3A 30VDC
Insulation Resistance
100mΩ at 500V DC
Pin Number
8 2P3T 8PIN Slide Switch with 15mm Aluminum Actuator
Contact Resistance
50mΩ Max
Fuction
2P3T
Withstand Voltage
500V AC for 1 minute
Products Show

Featuring ultra-miniature, micro, miniature, standard, industrial and power versions, Daier has slide switches compatible for printed circuit board, surface mount and panel mount applications. Available in SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions, Daier provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options.

Daier"s many series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods; headphones or HVAC controls; portable speakers or laptops; audio equipment or alarms, Daier slide switches quickly integrate into your next design.
