Home > Products > Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Click on the image to view the original image
Product： views：2Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Branch： DAIER
Type： Electrical Plug, Effects
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DAIER
Model Number:
DC-0053
Type:
Electrical Plug, Effects
Grounding:
Non-Grounding
Rated Voltage:
50VDC, 50VDC
Rated Current:
0.2A, 0.2A
Application:
Residential / General-Purpose
Product Name:
Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Color:
Black
Gender:
Female
Material:
Plastic
Connection type:
Solder
Size:
2.1MM/2.5MM
OEM:
Yes

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
30X15X12 cm
Gross weight per batch:
2.0 kg
Package Type:
500pcs/package for Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Lead Time:
Quantity(Piece)1 - 100000>100000
Est. Time(days)7To be negotiated
Product Description
Product Name
Black Plastic 2.1mm 2.5mm 3 Pin Audio Video Electronic Plugs And Jacks
Rated Current
0.2A
Rated Voltage
50VDC
Size
2.1MM/2.5MM
Color
Black
Terminals
Solder
Products Show

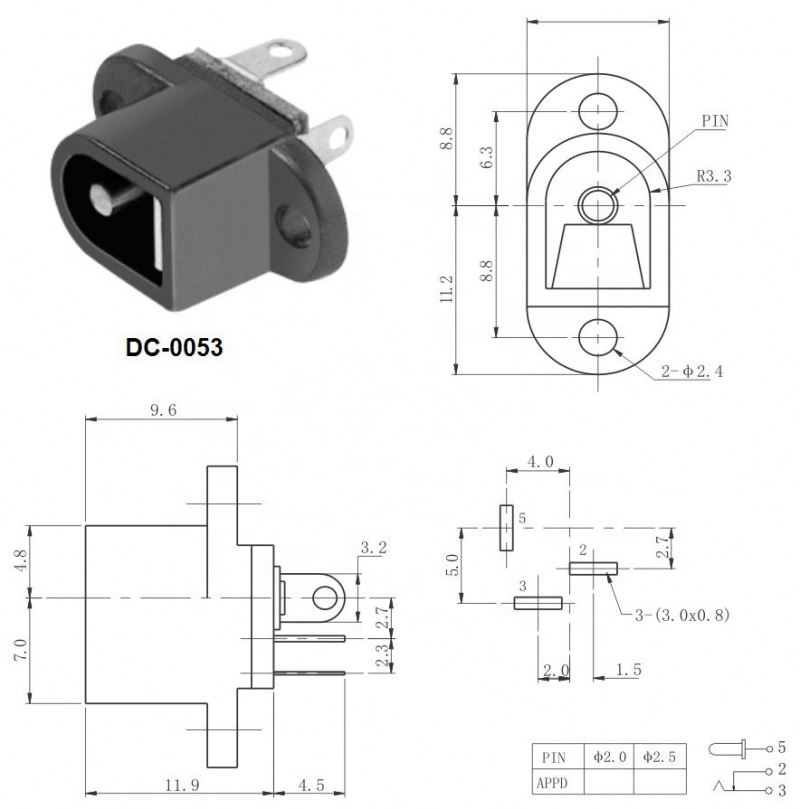

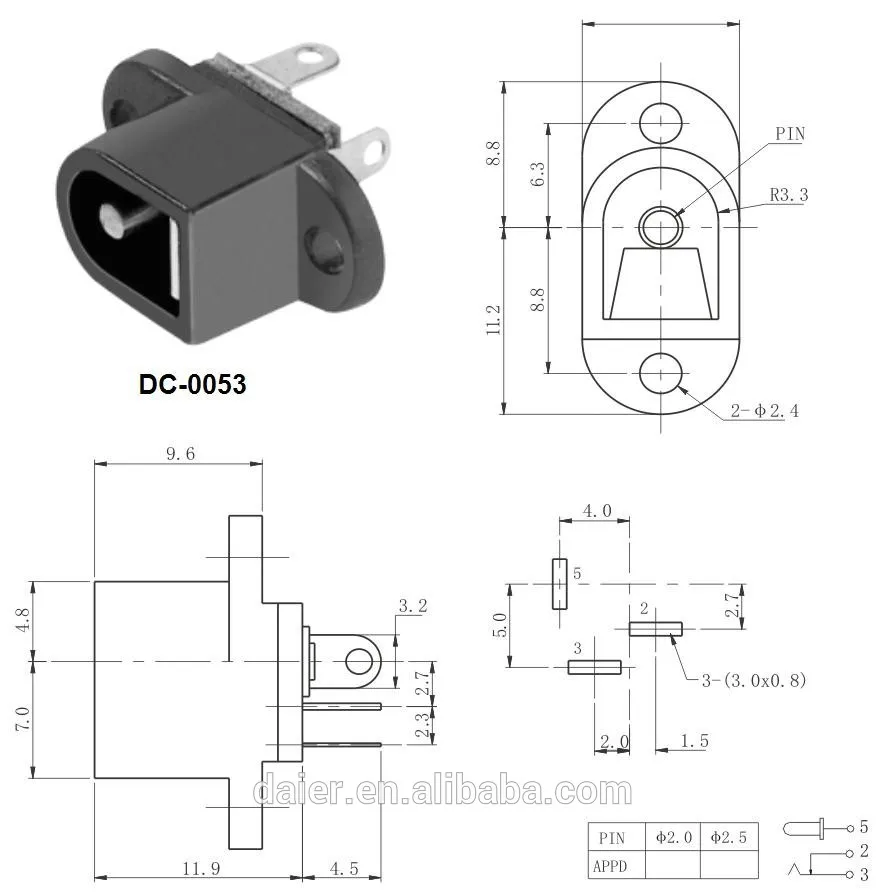

DC-0053


Type: 2.1 x 5.5mm /2.5X5.5mm Socket


Color: black


Terminal: Copper with silver plated terminal


OEM: Yes

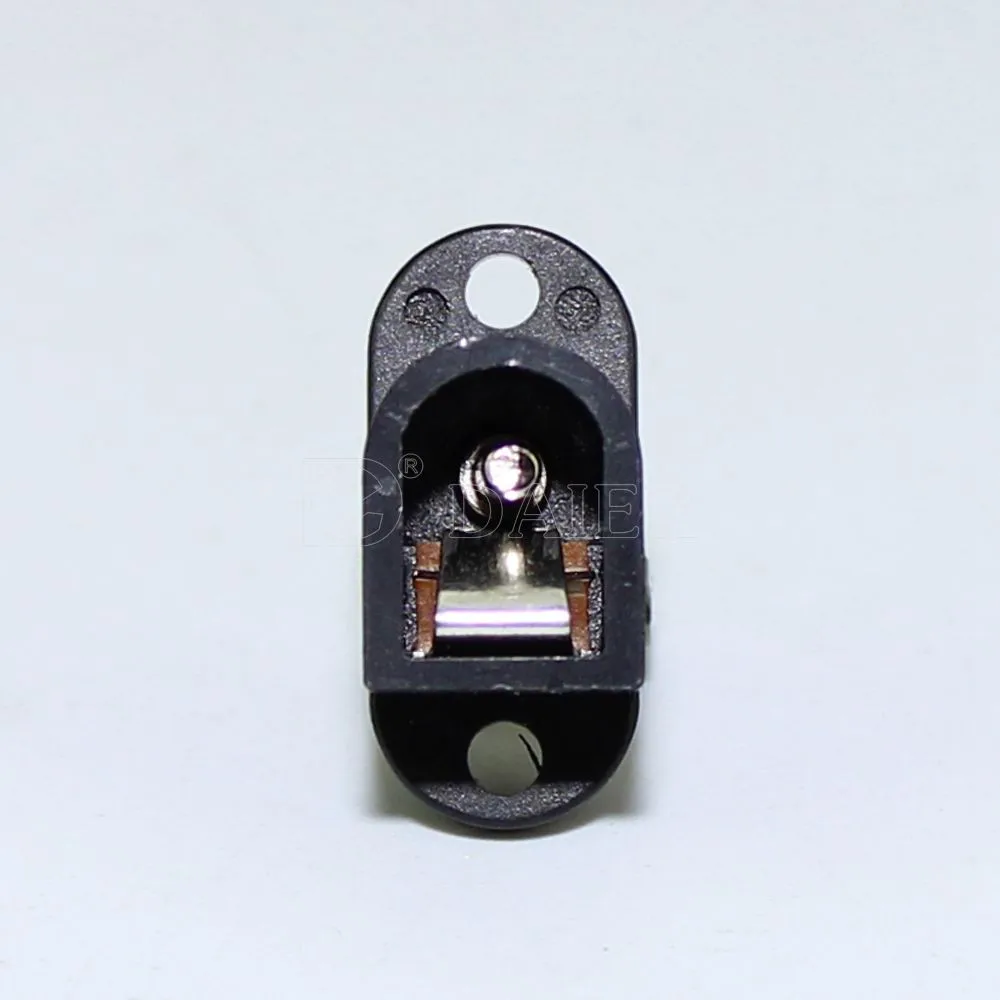

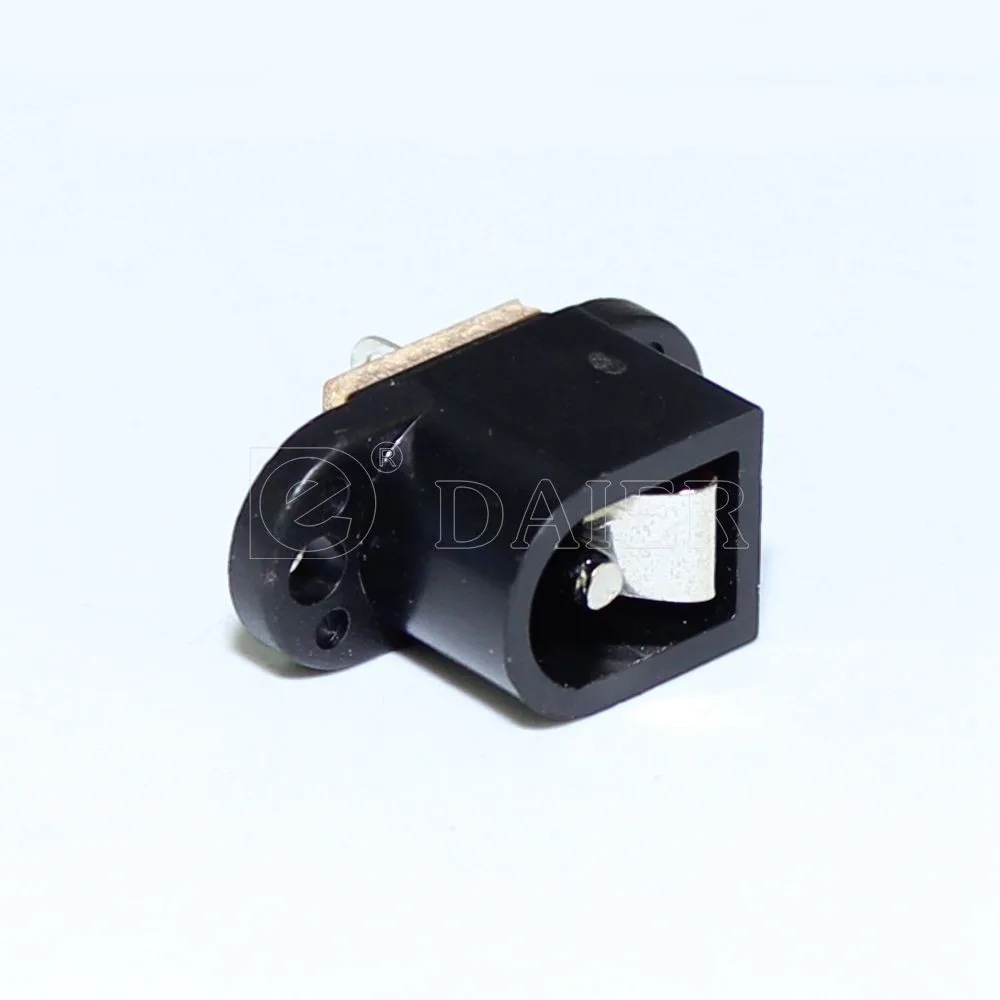

DC-0053


Made of plastic and metal material, this PCB mounting


socket will be an ideal item to replace the broken 5. 5MMX


2. 1mm PCB socket. Fit for tablet PC charging.
