Home > Products > ST-001L 3~20A 125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch

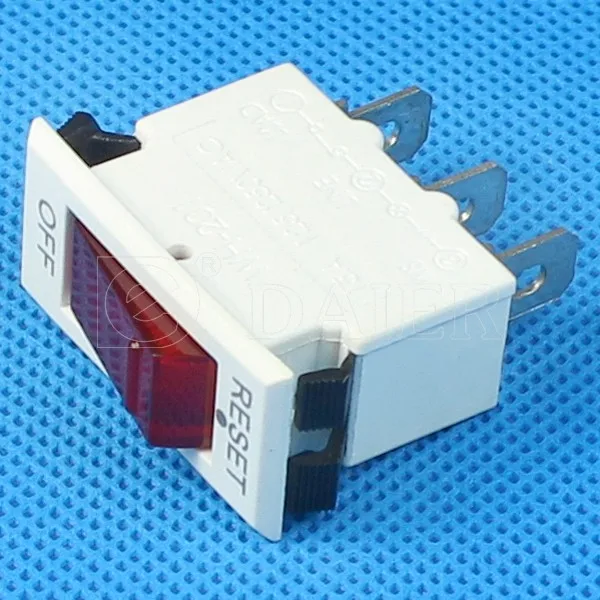

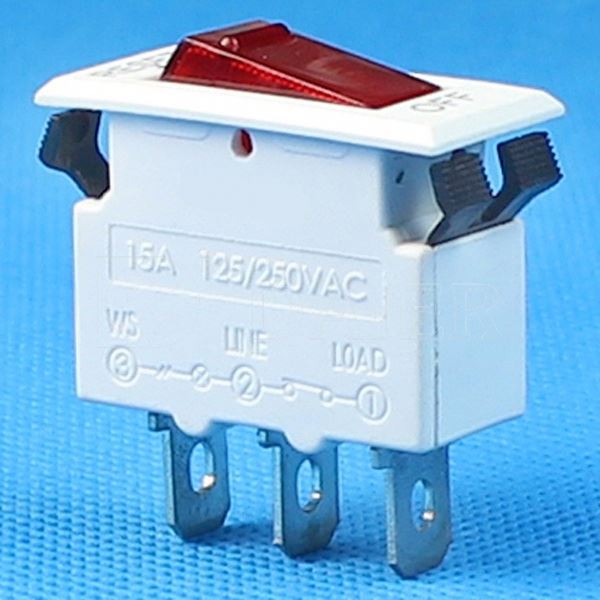

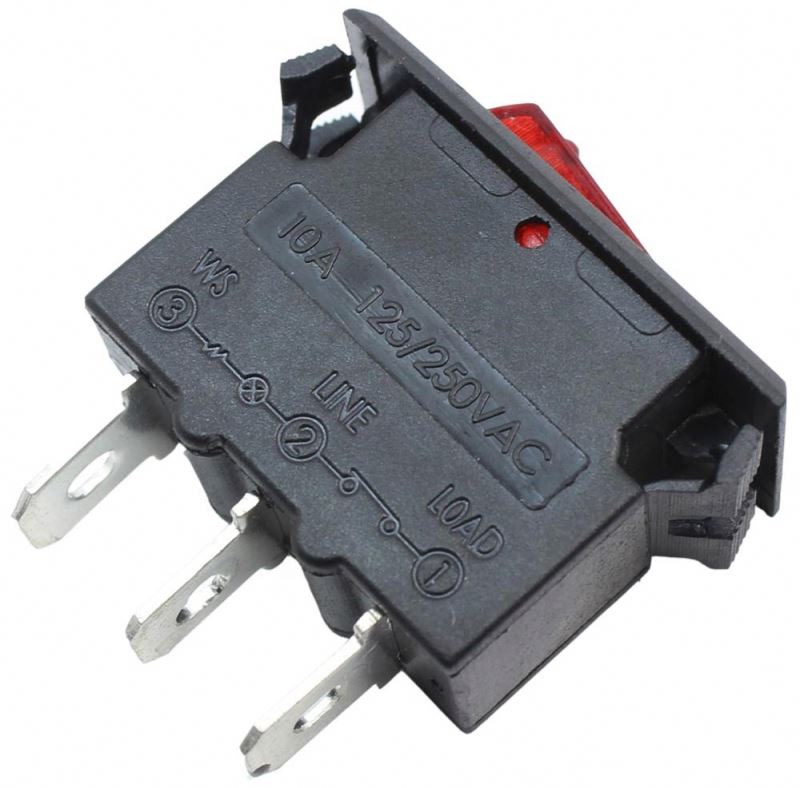

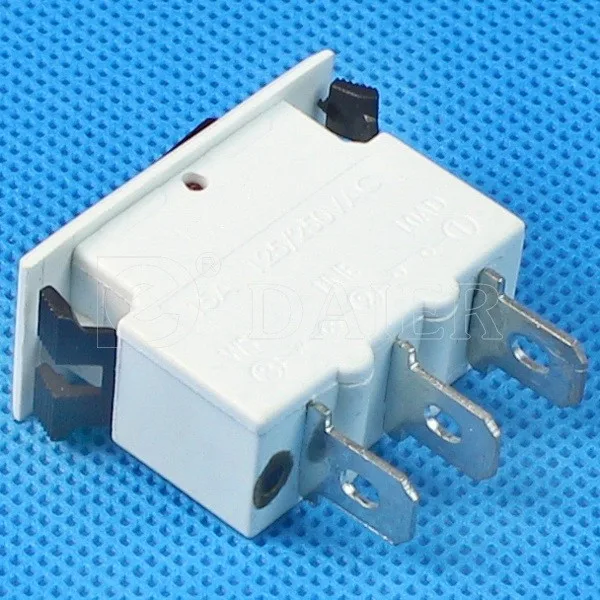

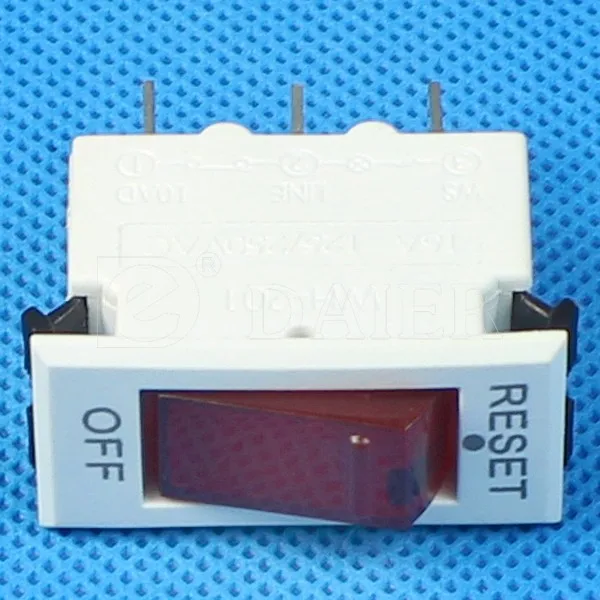

ST-001L 3~20A 125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch
Click on the image to view the original image
Product： views：0ST-001L 3~20A 125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch
Branch： Daier
Type： Conventional
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
ST-001L
Type:
Conventional
Poles Number:
1
Rated current:
3~20A
Rated voltage:
125/250VAC/32VDC
Housing color:
Black/White
Button color:
Black/White/Red/Orange/Green/Clean White
Terminal:
Long PIn
Pin number:
3
Free sample:
Available
OEM&ODM:
Yes
Packing:
Cartoon Box
Electrical Life:
≥ 10000 Cycles

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X18X7 cm
Gross weight per batch:
1.0 kg
Package Type:
50pcs a box of ST-001L 3~20A 125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch
Lead Time:
Quantity(Piece)1 - 5000>5000
Est. Time(days)7To be negotiated
Product Description
Product Name
ST-001L 3~20A 125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch
Rated current
3~20A ST-001L  125/250VAC/32VDC 3 Long Pin Mini Breaker LED Overload Switch
Rated voltage
125/250CAV/32VDC
Button color
Black/White/Red/Orange/Green/Clean White
Insulated resistance
≥100MΩ
Dielectric strength
≥1500VAC/1min
Operating Life
≥10000 cycles
Products Show

ST-001:

This Daier range offers a compact thermal circuit breaker in a rocker switch design, with or without illumination. The rocker switch offers a compact thermal circuit breaker in a rocker switch design.

By incorporating the thermal circuit breaker into your system you can provide overload protection and On/Off switching using just a single component. This provides significant cost savings over using a separate rocker switch and circuit breaker combination.

Combined rocker switch and circuit breakers, which trips to off status under overload condition.
High visibility red marking on actuator indicates when breaker is tripped / awaiting reset.
