Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS1-22F-I
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

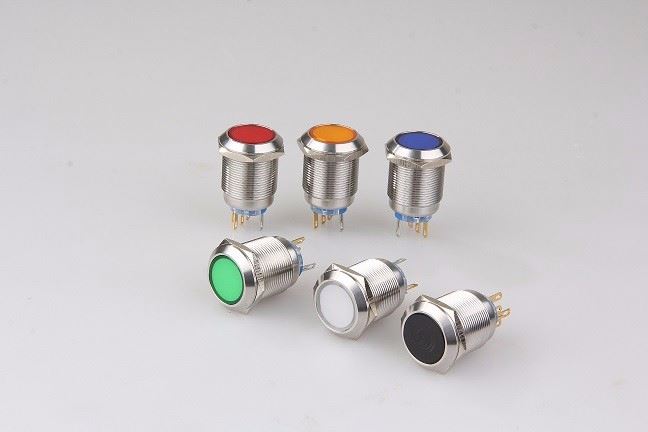

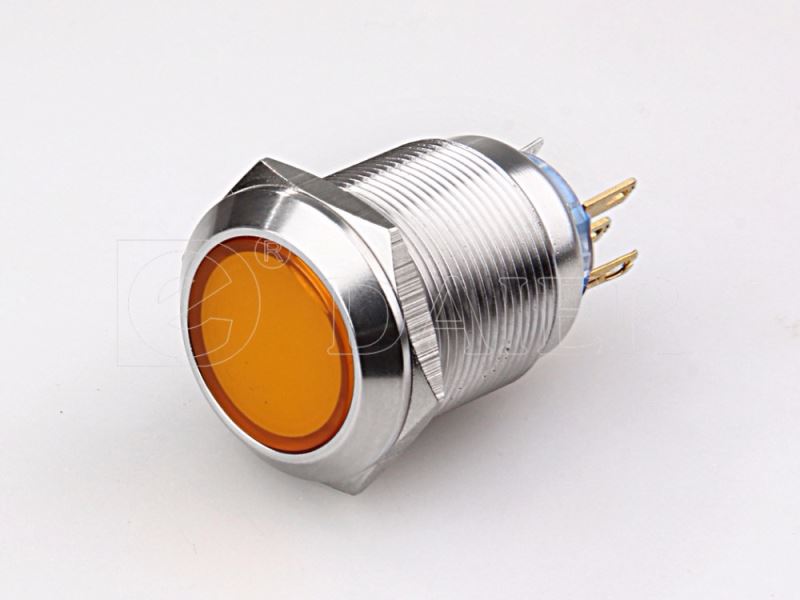

- Daier 22mm Illuminated Flat Shape
- Function:
- Latching/Momentary
- Led color:
- Red Yellow White Blue Green Orange
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Button Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- LAS1-22F-I22mm Metal Push Button Switchis 40pcs/box
- Lead Time:
Quantity(Piece) 1 - 4000 >4000 Est. Time(days) 10 To be negotiated
