Home > Products > 12x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch

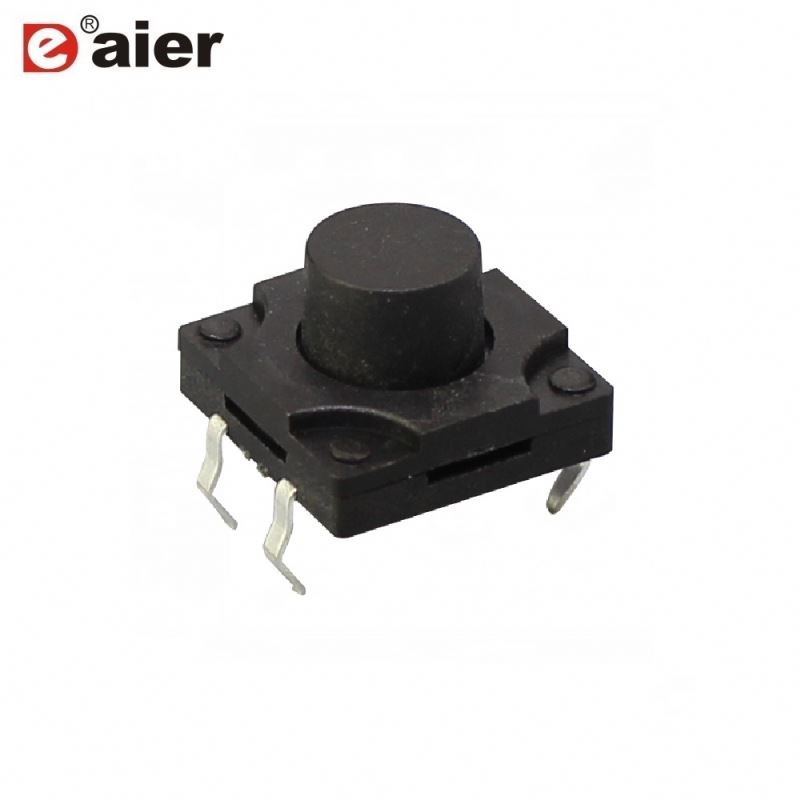

12x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch
Click on the image to view the original image
Product： views：312x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
WS-012-H
Protection Level:
IP67
Max. Current:
50mA
Max. Voltage:
12VDC
Rated Current:
50mA
Rated Voltage:
12VDC
Type of Actuation:
Tactile feedback
Button Color:
Black
Terminal:
PCB Terminal
Size:
12x12 MM
Free sample:
Available
OEM&ODM:
Yes
Packing:
Carton box
Operating Temperature:
-15~+60℃

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X18X7 cm
Gross weight per batch:
1.5 kg
Package Type:
500pcs a box of 12x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch
Lead Time:
Quantity(Piece)1 - 500000>500000
Est. Time(days)7To be negotiated
Product Description
Product Name
12x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch
Rating
50mA 12VDC
Funtion
OFF-(ON) Momentary
Button Color
Black 12x12MM 4 PCB Pin WS-012-H Tactile Switch IP67 Waterproof Tact Switch
Electonical Life
100,000 Cycles
Environment temperature
 T-15 - T60
Min Insulation Resistance
100mΩ

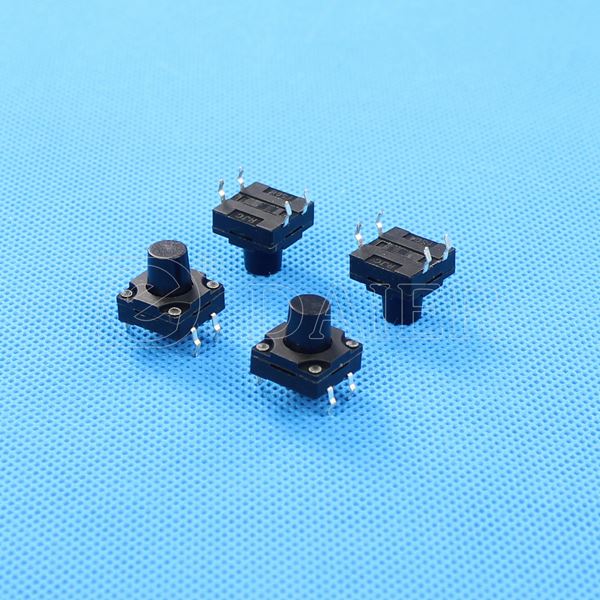

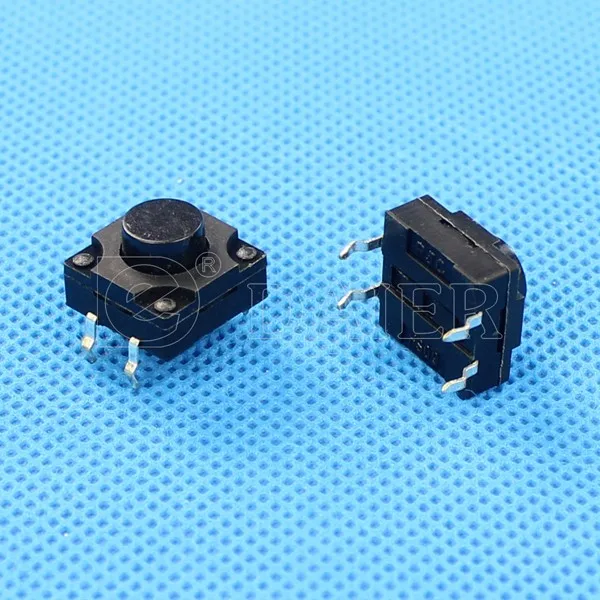

Products Show
