Home > Products > 6X6MM Size 3 Flat Terminals KFC-A06P3-H 3 Pin Tact Switch with Black Button

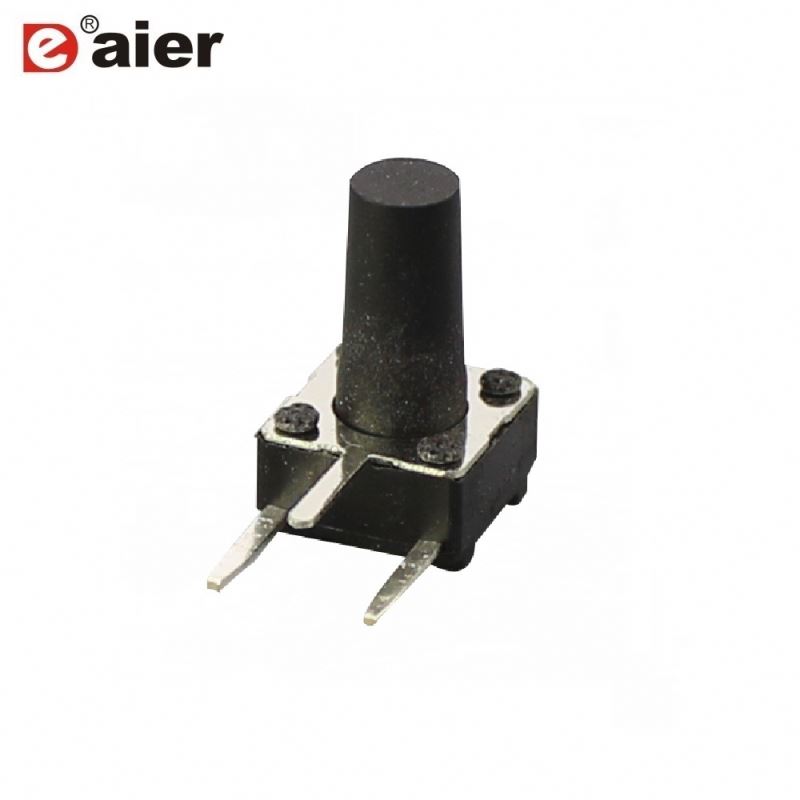

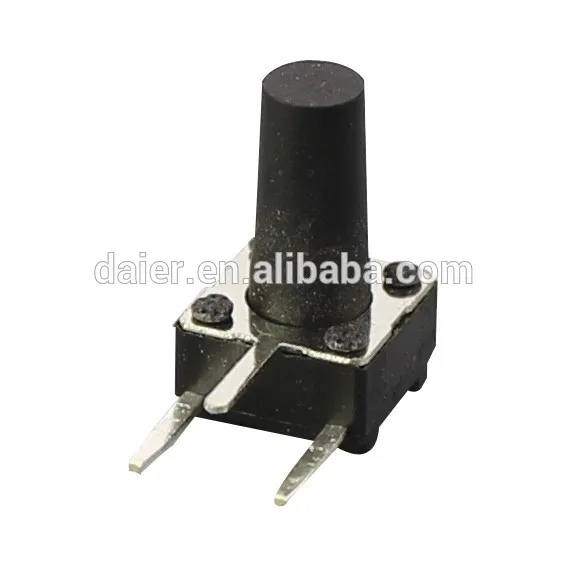

6X6MM Size 3 Flat Terminals KFC-A06P3-H 3 Pin Tact Switch with Black Button

Click on the image to view the original image

Product：	views：26X6MM Size 3 Flat Terminals KFC-A06P3-H 3 Pin Tact Switch with Black Button
Branch：	Daier
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:14

Product Details

Overview

Quick Details

Package Type:: 1000pcs a box of 6X6MM Size 3 Flat TerminalsKFC-A06P3-H 3 Pin Tact Switch with Black Button

Lead Time:

Quantity(Piece)	1 - 1000000	>1000000
Est. Time(days)	7	To be negotiated

Product Description

Product Name	6X6MM Size 3 Flat TerminalsKFC-A06P3-H 3 Pin Tact Switch with Black Button
Rating	50mA 12VDC
Funtion	OFF-(ON) Momentary
Button Color	Black 3 Pin Tact Switch with Black Button
Electonical Life	100,000 Cycles
Environment temperature	T-25 - T105
Min Insulation Resistance	100mΩ

Products Show
