Home > Products > 4.2x6.1x12.5mm Red Button KFC-003B 50mA Tactile Switch with SMD Terminals

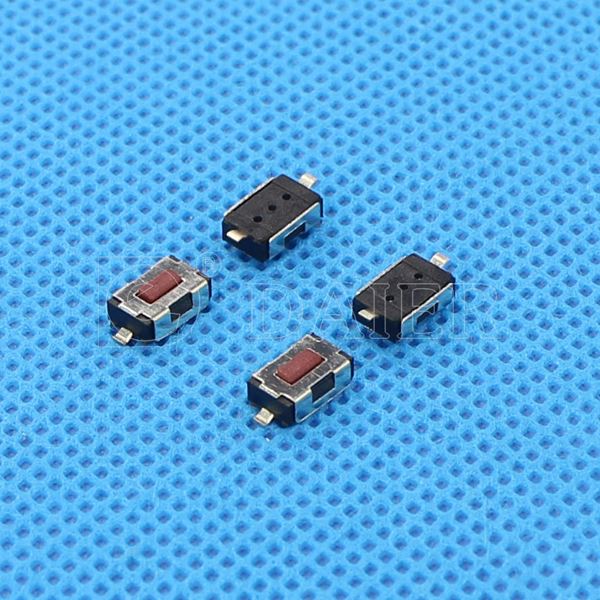

4.2x6.1x12.5mm Red Button KFC-003B 50mA Tactile Switch with SMD Terminals
Click on the image to view the original image
Product： views：44.2x6.1x12.5mm Red Button KFC-003B 50mA Tactile Switch with SMD Terminals
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
KFC-003B
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
Rated Current:
50mA
Rated Voltage:
12VDC
Type of Actuation:
Tactile feedback
Button Color:
Red
Terminal:
SMD Terminal
Size:
4.2x6.1x12.5mm
Free sample:
Available
OEM&ODM:
Yes
Packing:
Carton box
Operating Temperature:
-20~+70℃

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
25X18X7 cm
Gross weight per batch:
1.0 kg
Package Type:
1000pcs a box of 4.2x6.1x12.5mm Red Button KFC-003B 50mA Tactile Switch with SMD Terminals
Lead Time:
Quantity(Piece)1 - 1000000>1000000
Est. Time(days)7To be negotiated
Product Description
Product Name
4.2x6.1x12.5mm Red Button KFC-003B 50mA Tactile Switch with SMD Terminals
Rating
50mA 12VDC
Funtion
OFF-(ON) Momentary
Button Color
Red 50mA Tactile Switch
Electonical Life
100,000 Cycles
Environment temperature
 T-25 - T70
Min Insulation Resistance
100mΩ
Products Show

KFC-003B SMD Switch Button:

KFC-003B is an on/off electronic smd switch button that is only on when the button is pressed or if there is a definitive change in pressure.
It was used for circuit board, the height for the switch is 2.5mm.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
