Home > Products > Illuminated Tact Switch

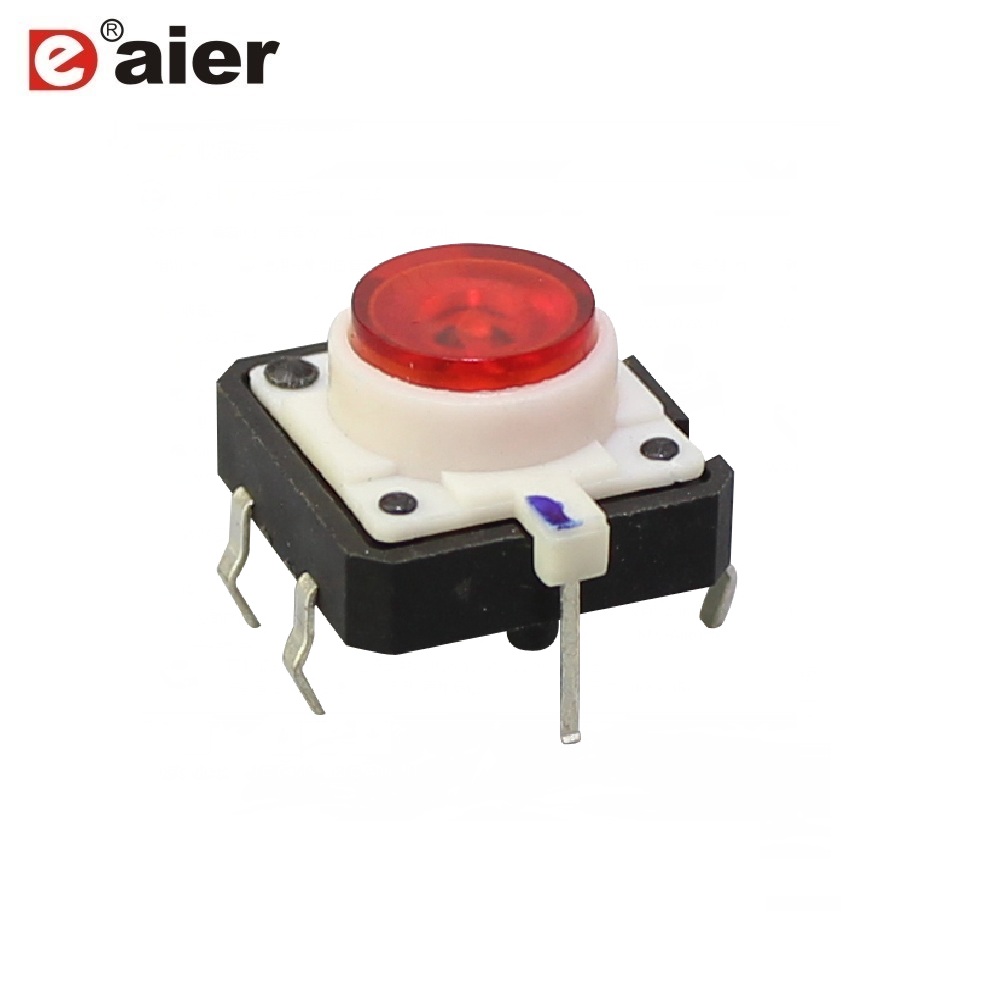

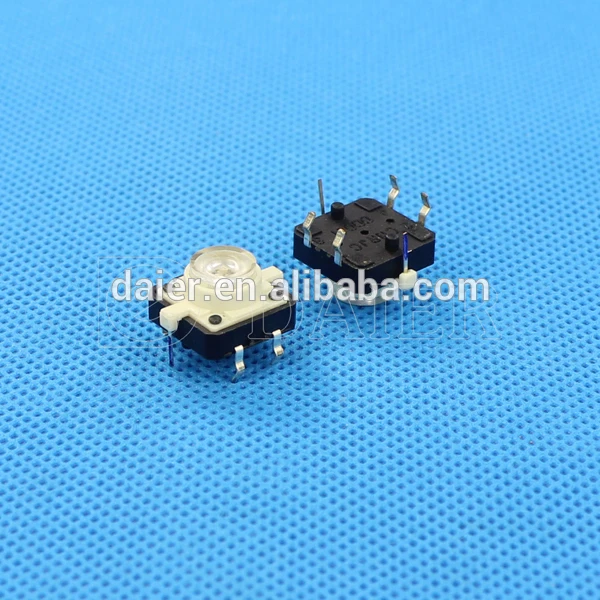

Illuminated Tact Switch
Click on the image to view the original image
Product： views：2Illuminated Tact Switch
Branch： Daier
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 20:14
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Daier
Model Number:
TSL-012
Protection Level:
IP40
Max. Current:
50mA
Max. Voltage:
12VDC
dimension:
12X12
Function:
Momentary
LED:
red,green,yellow,blue,white
Size:
7x7MM
Height:
7MM
Frame:
No
Button Color:
Transparent
Terminal type:
PCB Terminal
Free Sample:
Available
Material:
Plastic

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
28X10X10 cm
Gross weight per batch:
1.5 kg
Package Type:
500PCS/BAG.
Lead Time:
Quantity(Piece)1 - 5000>5000
Est. Time(days)7To be negotiated

LED illuminated tact switch:

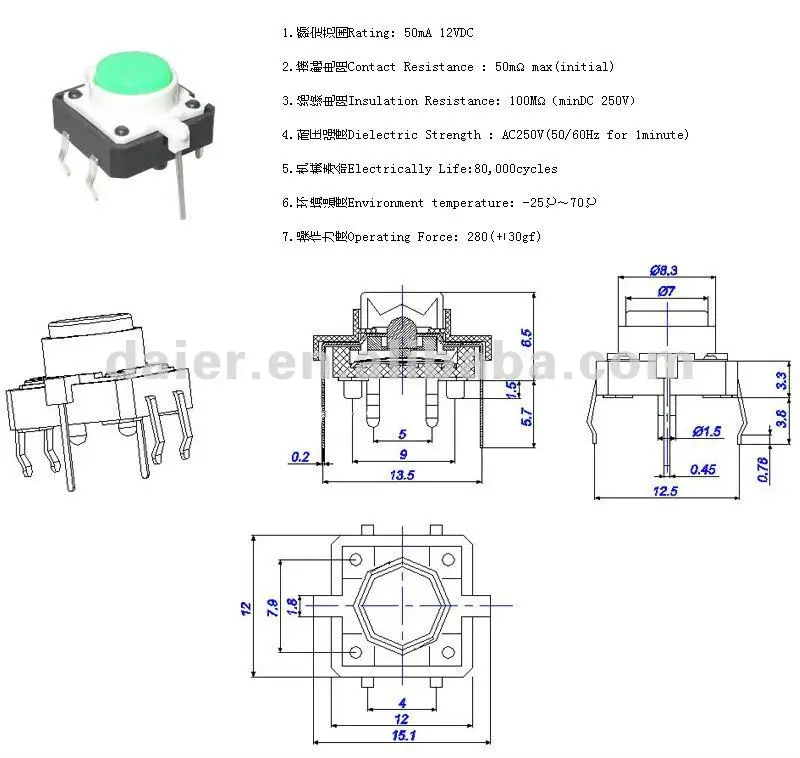

Technical Data


1.Rating: 50mA 12VDC


2.Contact Resistance : 50mΩ max(initial)


3.Insulation Resistance:  100MΩ(minDC 250V)


4.Dielectric Strength : AC250V(50/60Hz for 1minute)


5.Electrically Life:20000-1000000cycles


6.Environment temperature: -25°C-70°C


7.Operating Force: 100/180/230/250/300(±30gf)


8.Seal temperature:250°C-280°C



  • Application

They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.



  • Others

            Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your

            new inquiry ASAP.

            Any questions about more items, please feel free to contact us.

            We are sincerely looking forward to establish cooperative relationship with you.

            Free sample is available !

            If you need any parts, please kindly send us your drawings or sample for quotation.



  • PRODUCT SHOW







  • CERTIFICATIONS







  • PRODUCING DEPARTMENTS







  • PAYMENT AND SHIPMENT

             Paypal,T/T,Westernunion,MoneyGram ,or other method.



           Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.

           ---We often ship item in 5 business days.





  • ABOUT US

              Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in  Yueqing,China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of BNC connectors, push button switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps and etc. With a principle of being creative, advancedand honest, we are always  improving our products and services to better satisfy you customers.



  • FEEDBACK

          We greatly appreciate your positive feedback and will do the same.
          Please kindly contact us before you decide to leave any neutral or negative feedback .
          We will try our utmost to help you solve the problem. Your information for us will be protected strictly.





                                           OUR WEBSITE:www.chinadaier.com
