- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS3-16F-11E
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:
- push button switch
- Function:
- SPDT NO NC
- Operational Force:
- 2~4N
- Operating Temperature:
- -25°C ~+55°C
- Contact Resistance:
- 30 mΩ max
- Dielectric Strength:
- 2000VAC
- Insulation Resistance:
- 100MΩ Min At 500VAC
- Led Color:
- Red/Green/Blue/Yellow/ White
- Body Color:
- Silver /Black/ Red/Green/Blue/Yellow
- Material:
- Stainless Steel /Copper Plated Nickel
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- push button switch is 50pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated

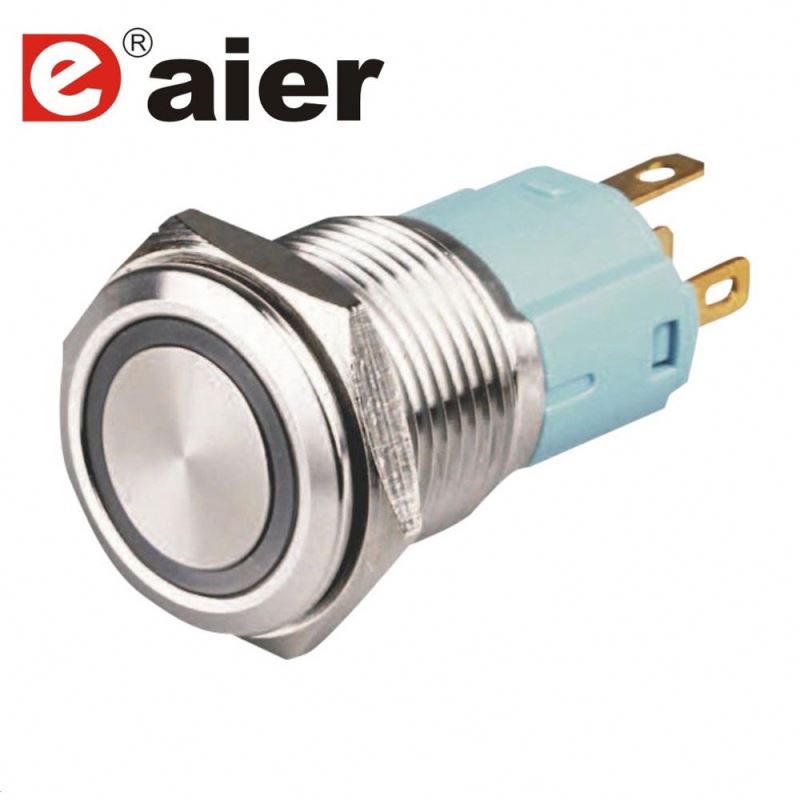

LAS3-16F-11E
Specifications:
1. Rating: 3A 250VAC
2. Function: SPDT NO NC
3.Contact Resistance: 30mΩ Max
4. Insulation Resistance:100Ω Min 500VDC
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-25°C~+55°C
7. Operating Force: 2~4N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
