- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- L19F-11EPM-AA
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:
- push button 19 mm
- Function:
- SPDT Momentary
- Led color:
- Red Yellow White Blue Green Orange
- Contact Resistance:
- 50 mΩ max
- Operating Force:
- 5.5N
- Dielectric Strength:
- 2000VAC
- Electric life:
- 50,000 cycles
- Operating Temperature:
- -20°C ~+55°C
- Material:
- Plastic
- IP Class:
- IP67
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.5 kg
- Package Type:
- L19F-11EPM-AApush button 19 mm is 40pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 40000 >40000 Est. Time(days) 10 To be negotiated

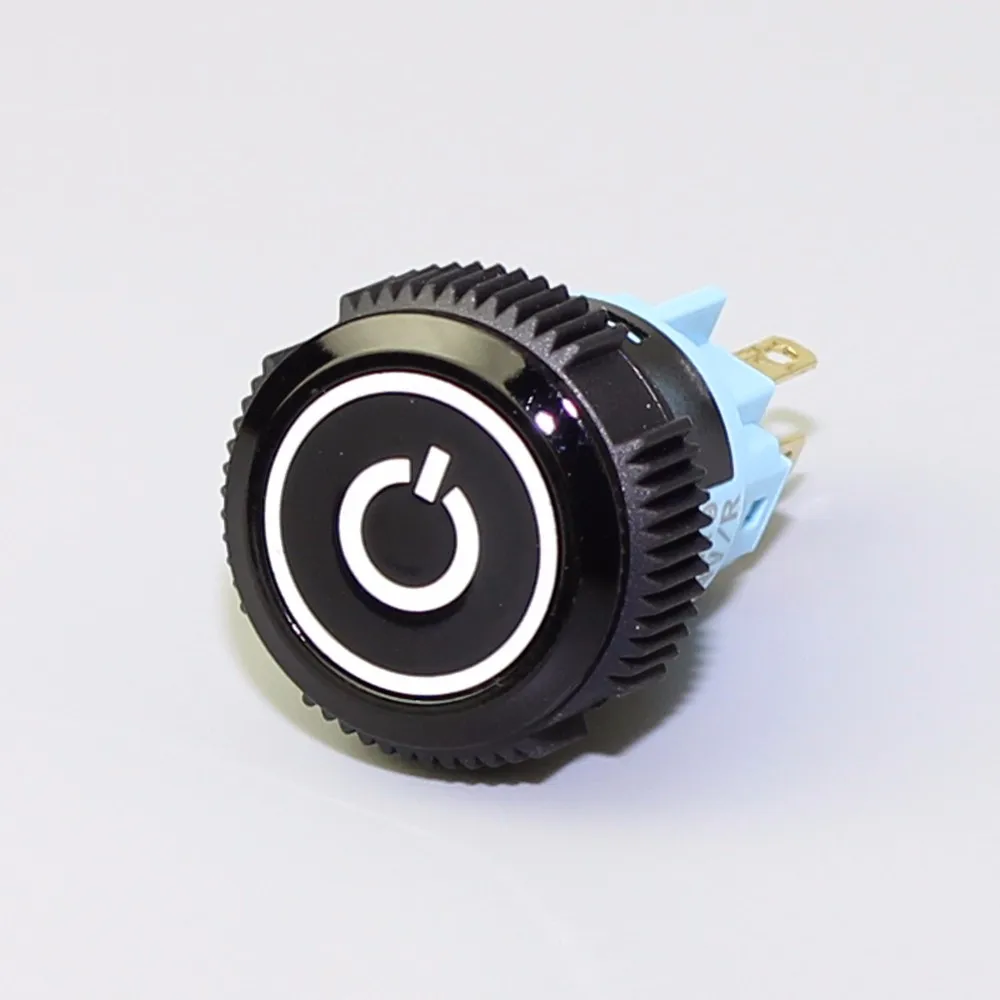

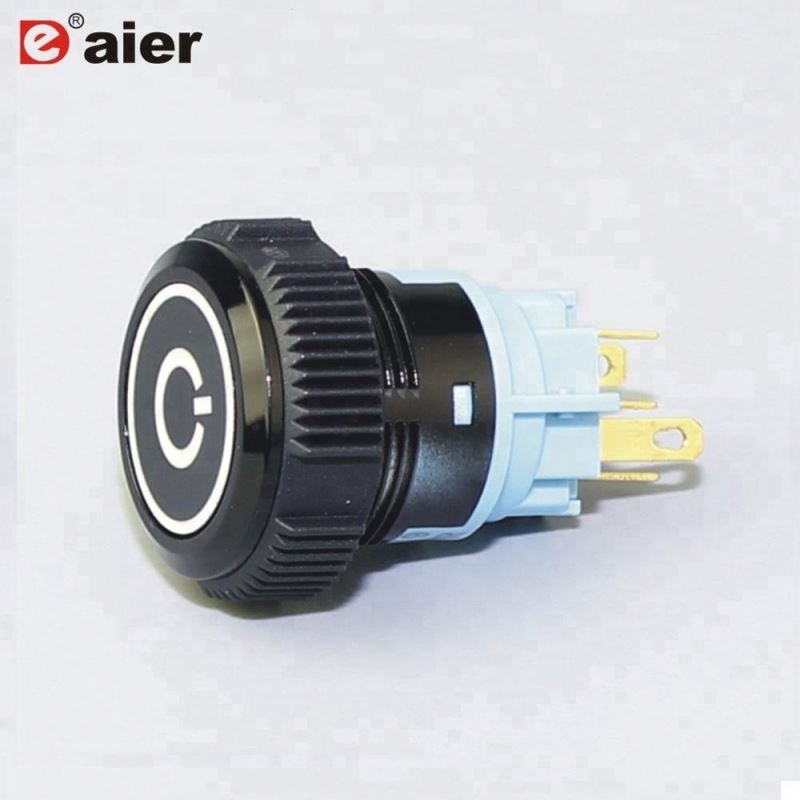

L19F-11EPM-AA
Specifications:
1. Rating: 5A 250VaC
2. Function: Latching/Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5.5N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
