- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- LAS3-16F-11E
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:
- Antivandal Button
- Function:
- SPDT NO NC
- Operational Force:
- 2~4N
- Operating Temperature:
- -25°C ~+55°C
- Contact Resistance:
- 30 mΩ max
- Dielectric Strength:
- 2000VAC
- Insulation Resistance:
- 100MΩ Min At 500VAC
- Led Color:
- Red/Green/Blue/Yellow/ White
- Body Color:
- Silver /Black/ Red/Green/Blue/Yellow
- Material:
- Stainless Steel /Copper Plated Nickel
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- Antivandal Button is 50pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated

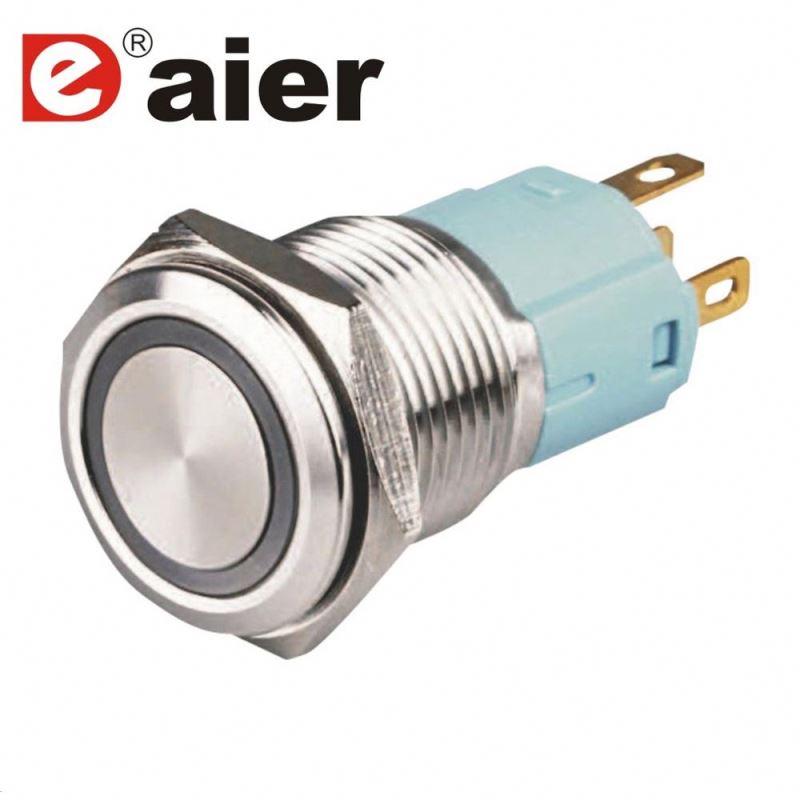

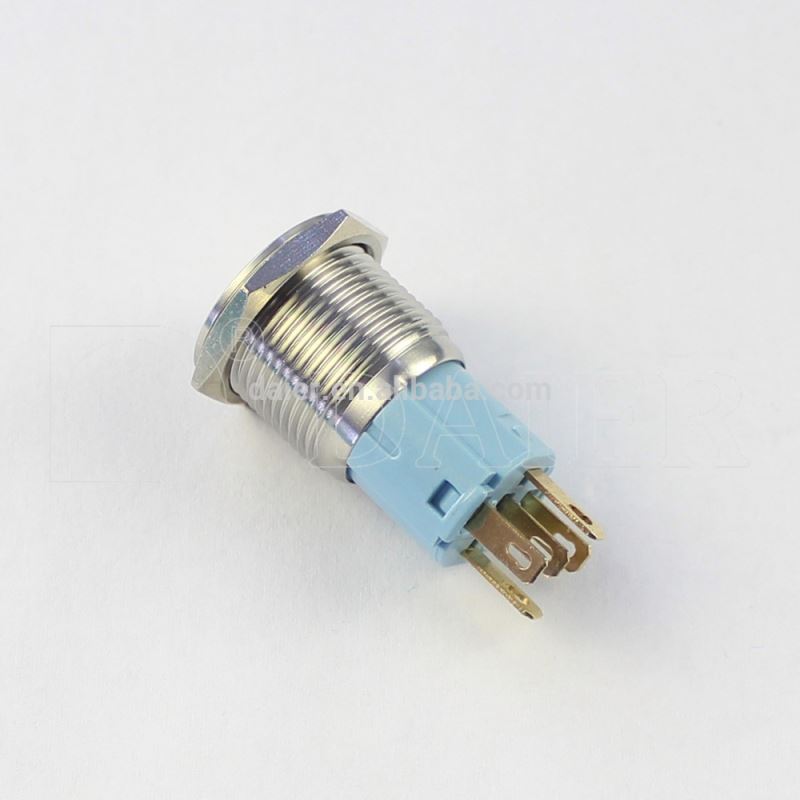

LAS3-16F-11E
Specifications:
1. Rating: 3A 250VAC
2. Function: SPDT NO NC
3.Contact Resistance: 30mΩ Max
4. Insulation Resistance:100Ω Min 500VDC
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-25°C~+55°C
7. Operating Force: 2~4N
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
WPC-16
16mm metal push button cover
GQ16F-10EM
16mm Flast Shape Button Ring Lamp SPST Momentary Solder Terminal Metal Push Button Switch
LAS3-16F-11D
16mm Flast Shape Button Dot Lamp IP67 SPDT Solder Terminal Metal Push Button Switch
