- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- GQ12F-10EL
- Protection Level:
- IP67
- Max. Current:
- 2A
- Max. Voltage:
- 36VDC
- Item number:
- Latching 12mm Illuminated Push Button on/of
- Function:
- Latching
- Panel Size:
- 12mm
- Button Shape:
- Flat Button
- IP Class:
- IP67
- Terminal Type:
- Soldering Terminal
- Certificate:
- CE, Rohs, CQC
- OEM&ODM:
- YES
- Package:
- 50pcs/box
- Led Color:
- Red/Green/Blue/Yellow/ White/ Orange
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X15X10 cm
- Gross weight per batch:
- 1.2 kg
- Package Type:
- GQ12F-10EL Latching 12mm Illuminated Push Button on/of is 50pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated

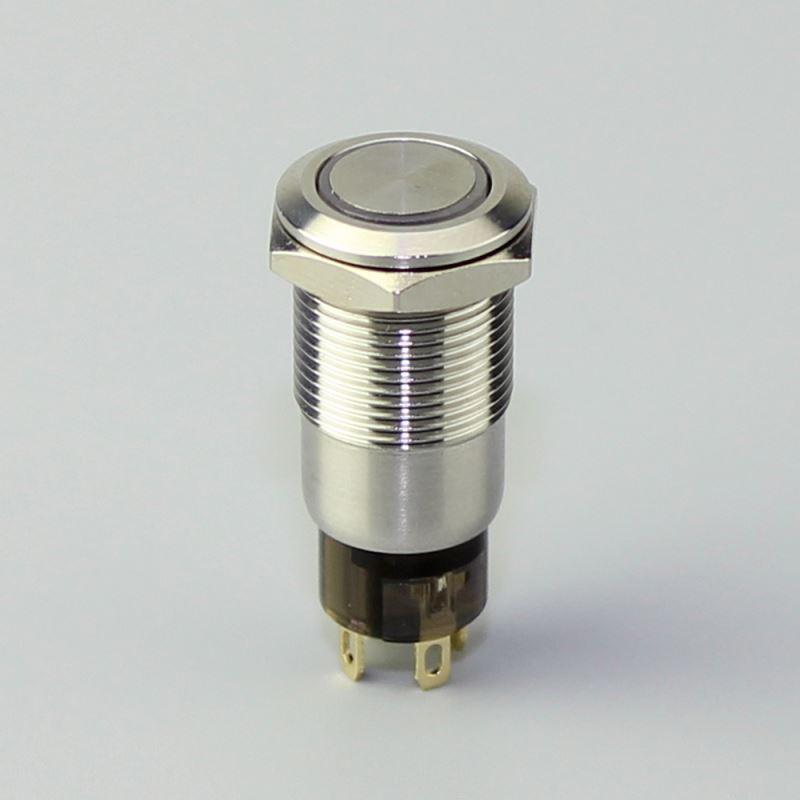

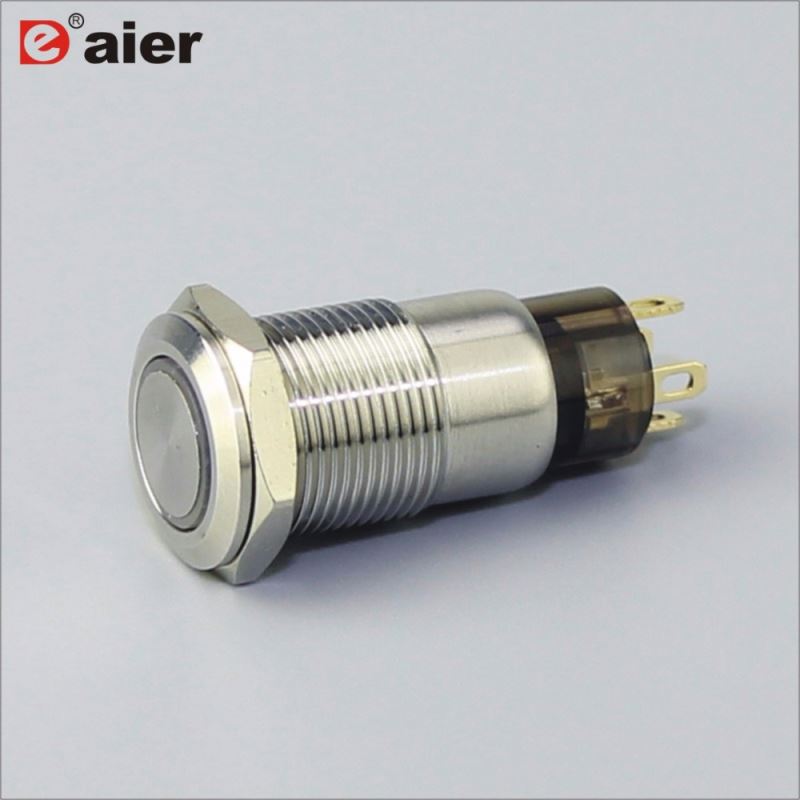

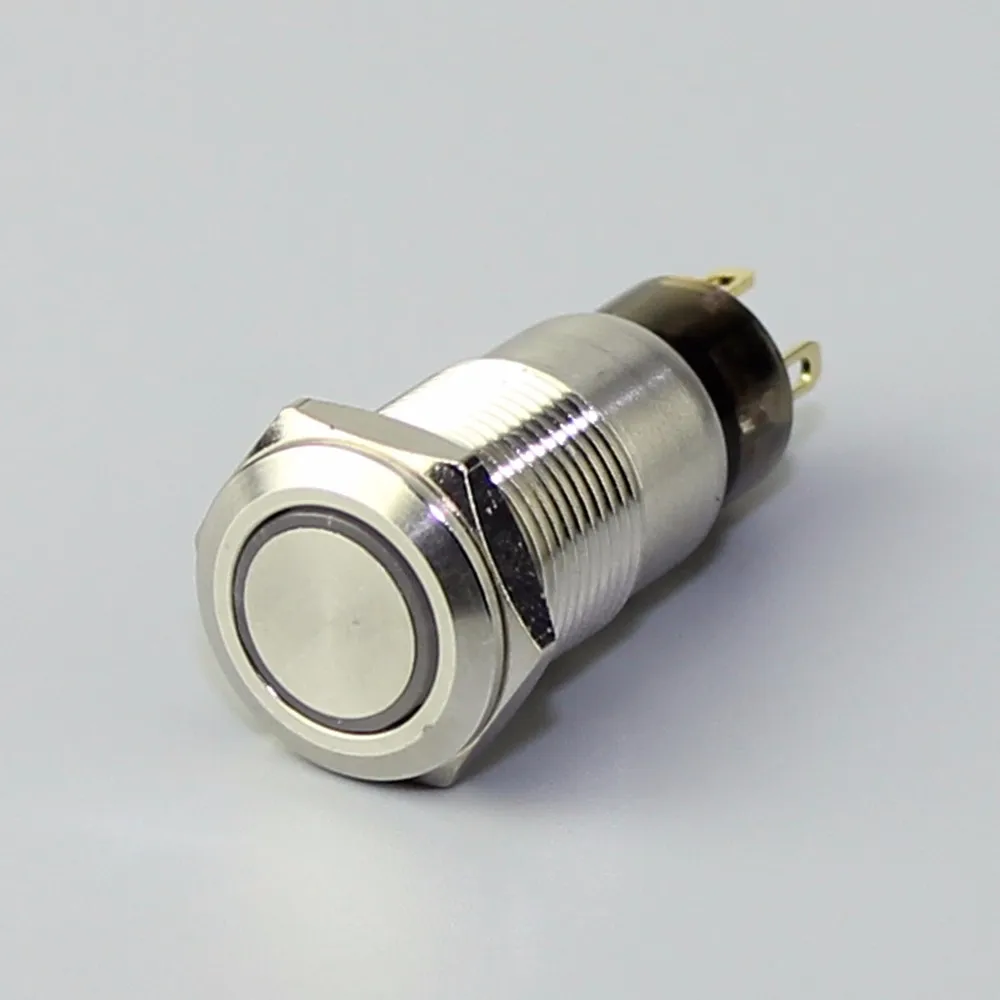

GQ12F-10EL
Specifications:
1. Rating: 2A 36VDC
2. Function: 1NO Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000V RMS 50~60Hz
6. Operating Temperature:-40°C~+85°C
7. Electrical Life: 50,000 Cycles
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
