Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:

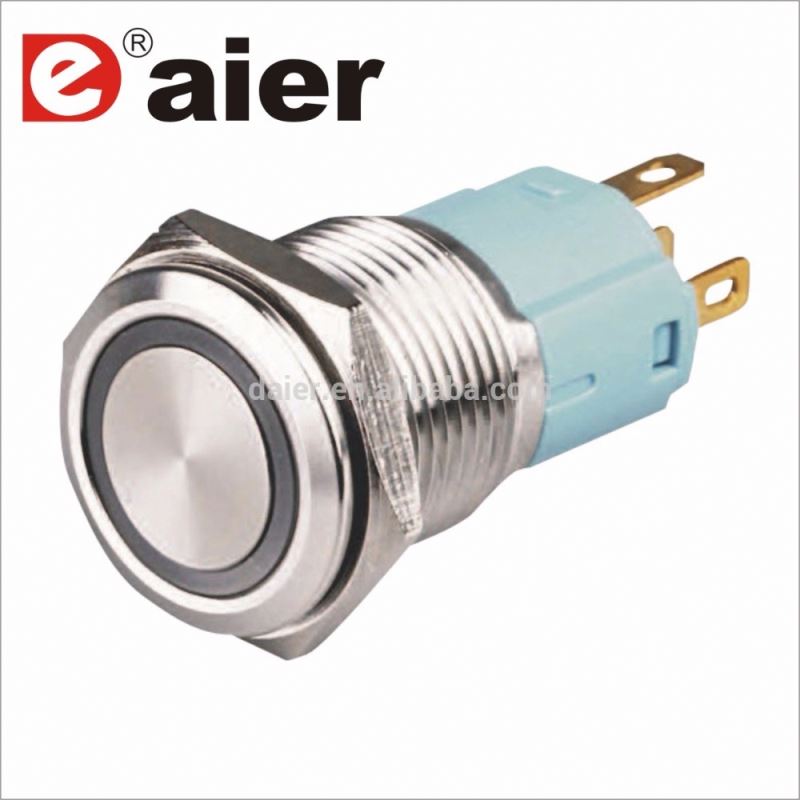

- LAS3-16F-11E
- Protection Level:
- IP67
- Max. Current:
- 3A
- Max. Voltage:
- 250VAC
- Item number:
- luminous push button
- Function:
- SPDT NO NC
- Operational Force:
- 2~4N
- Operating Temperature:
- -25°C ~+55°C
- Contact Resistance:
- 30 mΩ max
- Dielectric Strength:
- 2000VAC
- Insulation Resistance:
- 100MΩ Min At 500VAC
- Led Color:
- Red/Green/Blue/Yellow/ White
- Body Color:
- Silver /Black/ Red/Green/Blue/Yellow
- Material:
- Stainless Steel /Copper Plated Nickel
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- LAS3-16F-11E luminous push button is 50pcs/box
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 50000 >50000 Est. Time(days) 10 To be negotiated
