Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- A16-20SR-B
- Protection Level:
- IP67
- Max. Current:
- 5A
- Max. Voltage:
- 250VAV
- Item number:
- Emergency Push Buttons With Lock Key
- Electric life:
- 50,000 cycles
- Contact Resistance:
- 50 mΩ max
- Insulation Resistance:
- 500V DC1000MΩ Min
- Dielectric Strength:
- 2000VAC
- Operating Temperature:
- -20°C ~+55°C
- Operation Type:
- Push-Lock Turn-Reset
- The Front Shape:
- Ball
- Material:
- Stainless Steel
- Led Lamp Color:
- Red/Green/Blue/White/Yellow/Orange
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 22X13X6 cm
- Gross weight per batch:
- 1.0 kg
- Package Type:
- Emergency Push Buttons With Lock Key is 20pcs/box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 20000 >20000 Est. Time(days) 10 To be negotiated

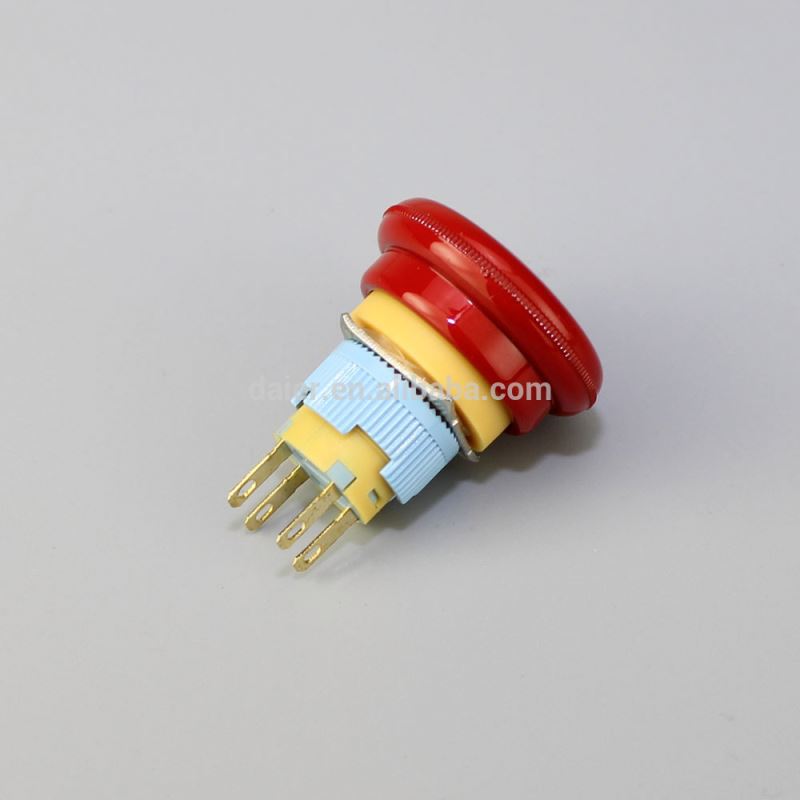

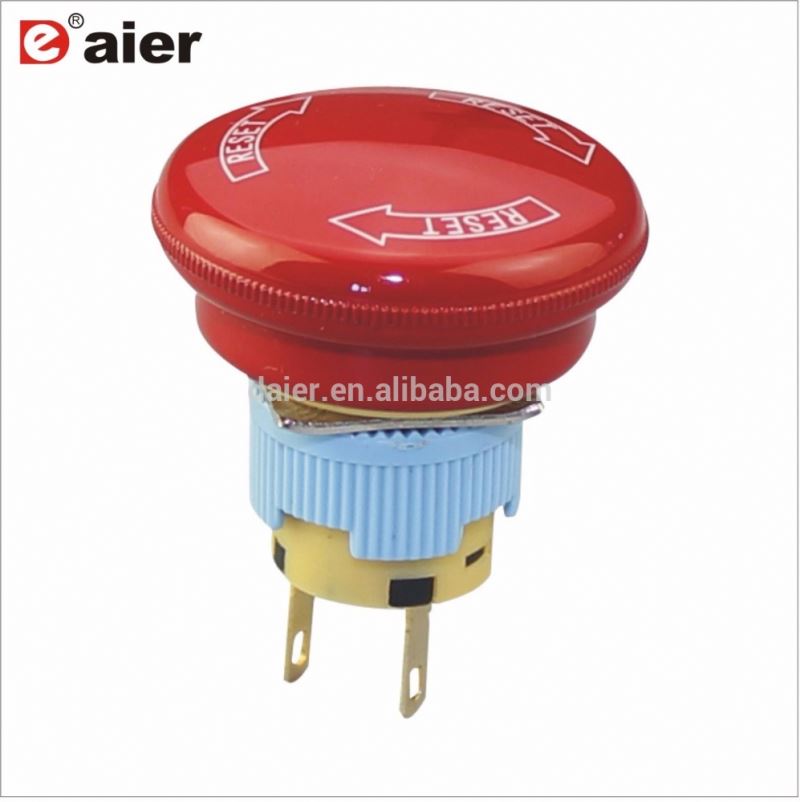

A16-20SR-B
Specifications:
1. Rating: 5A 250VAC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Function: 1NO 1NC/2NO 2NC
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
