Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- PBS-105
- Protection Level:
- IP40
- Max. Current:
- 0.5A
- Max. Voltage:
- 250
- Item:
- Push button switch
- Standard:
- IEC standard
- Panel size:
- 7mm
- Rating:
- 0.5A 250VAC
- Function:
- SPSTMomentaryPush Button Wwitch
- Button Color:
- Red, Green, Yellow, Blue, White, Black
- Material:
- Plastic
- Contact method:
- Soldering
- Package:
- 500pcs/bag
- Certificate:
- CE, Rohs, CQC
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X20 cm
- Gross weight per batch:
- 2.0 kg
- Package Type:
- PBS-105 push button switchis 500pcs/bag.
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 5000 >5000 Est. Time(days) 7 To be negotiated
Our adventage
Product Description
Products Show

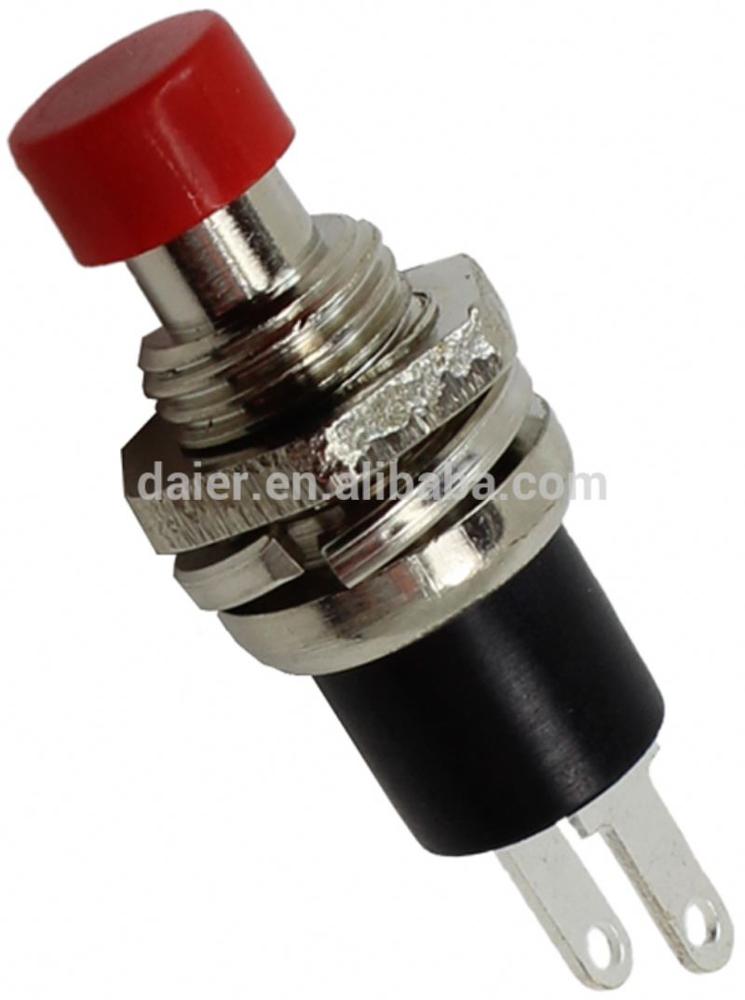

PBS-105
Specifications:
1. Rating: 0.5A 250VAC
2. Function: SPST, NO/NC, Momentary Push Button Switch
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:100Ω min
5. Dielectric Strength:1500V AC for 1 min
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: ≥10,000 Cycles
1. Rating: 0.5A 250VAC
2. Function: SPST, NO/NC, Momentary Push Button Switch
3.Contact Resistance: 50mΩ max
4. Insulation Resistance:100Ω min
5. Dielectric Strength:1500V AC for 1 min
6. Operating Temperature:-25°C~+85°C
7. Electrical Life: ≥10,000 Cycles
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
