ip 67 stainless steel momentary push button

Click on the image to view the original image

Product：	views：3ip 67 stainless steel momentary push button
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:15

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ30F-22EM

Protection Level:: IP67

Max. Current:: 5A

Max. Voltage:: 250VAC

Item number:: Push Button Switch

Function:: DPDT 2NO+2NC

Operational Force:: 5.5N

Operating Temperature:: -20°C ~+55°C

Contact Resistance:: 50 mΩ max

Dielectric Strength:: 2000VAC

Insulation Resistance:: 1000MΩ Min

Led Color:: Red/Green/Blue/Yellow/ White/Orange

IP Class:: IP67

Material:: Stainless Steel

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X15X10 cm

Gross weight per batch:: 1.0 kg

Package Type:: 30mm Push Button Switch is 10pcs/box

Picture Example:

Lead Time:

Quantity(Piece)	1 - 10000	>10000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	ip 67 stainless steel momentary push button
Rating	5A 250VAC
Mounting Size	30mm
IP Class	IP67
Function	DPDT 2NO+2NC
Led Color Avaliable	Red/ Blue/ Yellow/ Green/ White/ Orange

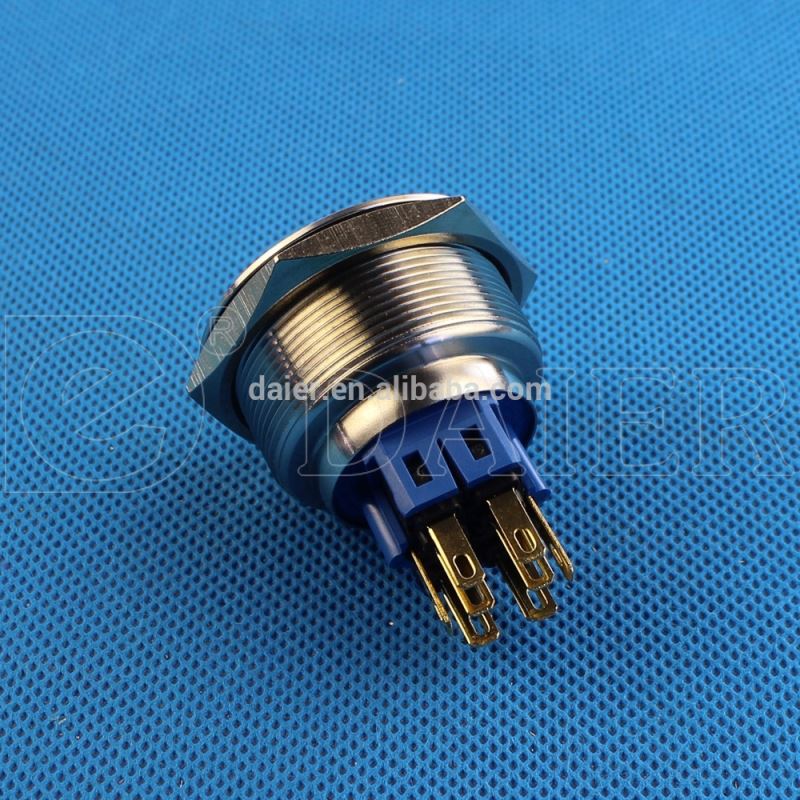

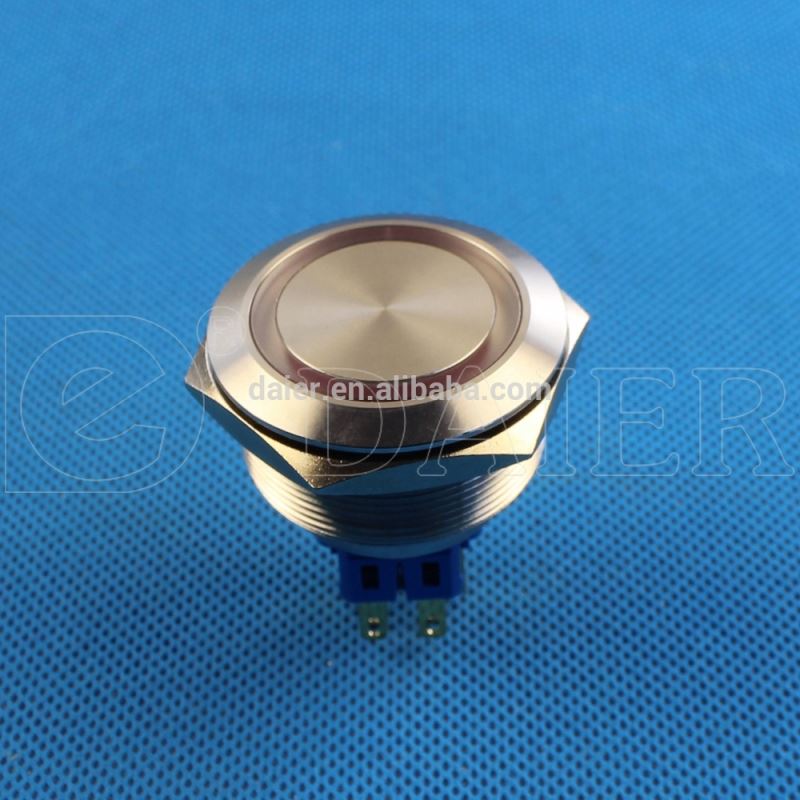

Products Show

GQ30F-22E

Specifications:
1. Rating: 5A 250VAC
2. Function: DPDT 2NO+2NC
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Operating Force: 5.5N

Push button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
