Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- DAIER
- Model Number:
- KAN-9A-L
- Protection Level:
- IP40
- Max. Current:
- 5A
- Max. Voltage:
- 250VAC
- Item number:

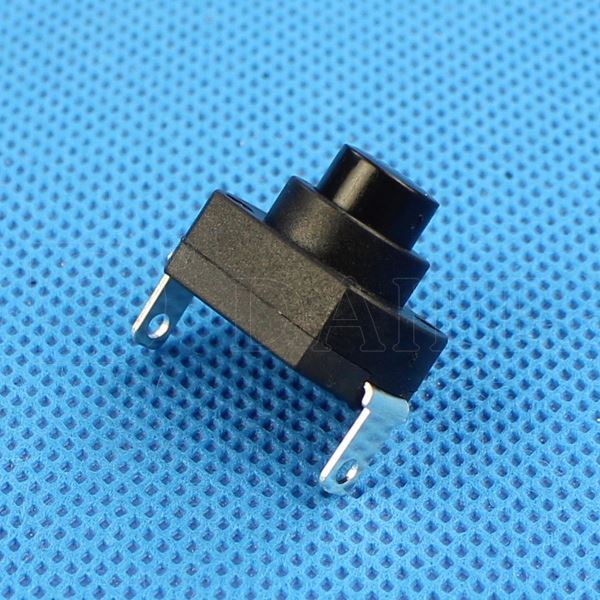

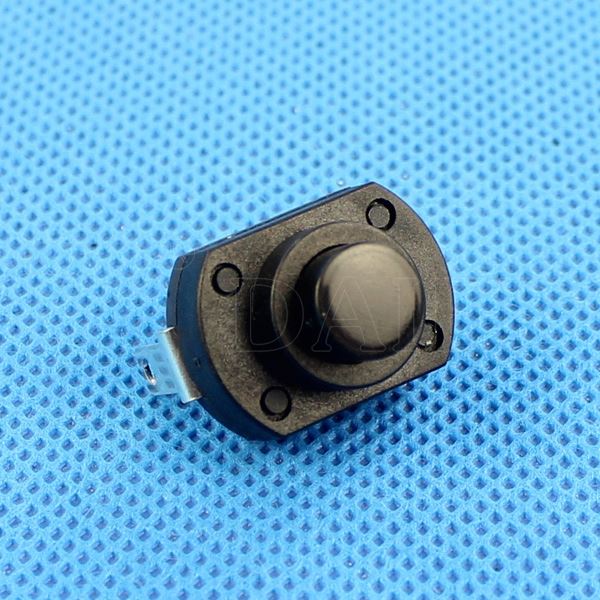

- 2Pin Latching ON OFF Black Flashlight Push Button Switch
- Body Color:
- Black
- Function:
- Latching ON OFFFlashlight Button Switch
- Material:
- Plastic
- Contact Resistance:
- 100 MΩ max
- Insulation Resistance:
- ≥100MΩ
- Dielectric Strength:
- AC 1500V 1Minute
- Electric life:
- >20,000 cycles
- Operating Force:
- 700gf±100gf
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 20X20X20 cm
- Gross weight per batch:
- 2.5 kg
- Package Type:
- KAN-9A-L2Pin Latching ON OFF Black Flashlight Push Button Switch is 1000pcs/bag
- Picture Example:
- Lead Time:
Quantity(Piece) 1 - 1000000 >1000000 Est. Time(days) 10 To be negotiated
