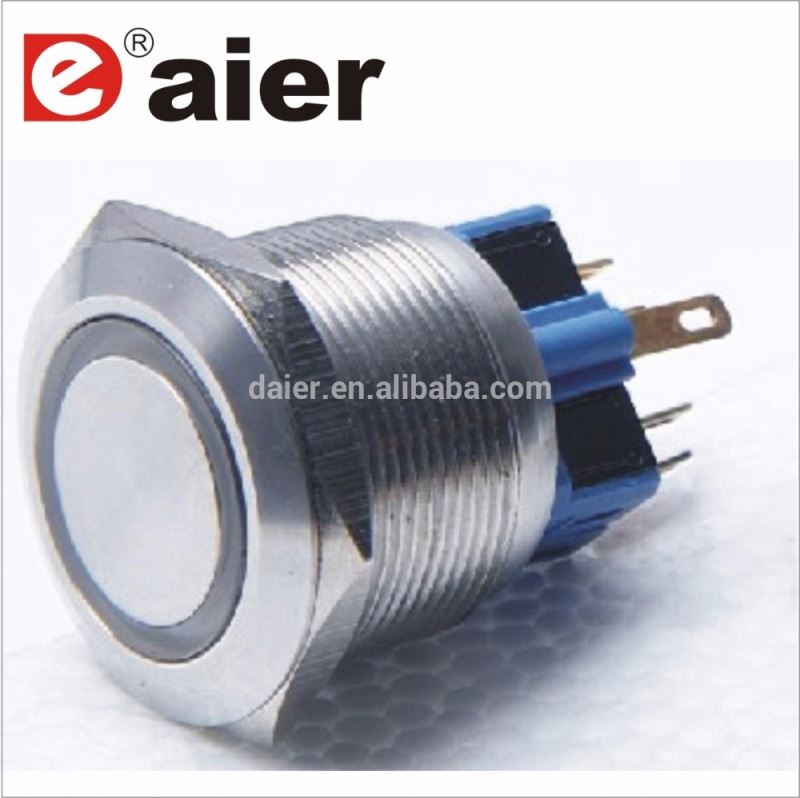

25mm Flat Stainless Steel 16A Arcade Push Button Water Value

Click on the image to view the original image

Product：	views：325mm Flat Stainless Steel 16A Arcade Push Button Water Value
Branch：	DAIER
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 20:15

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: GQ25F-11E

Protection Level:: IP67

Max. Current:: 5A

Max. Voltage:: 250VAC

Item number:: Metal Push Button Switch

Function:: SPDT 1NO+1NC

Operational Force:: 5.5~7N

Contact Resistance:: 50 mΩ max

Insulation Resistance:: 500V DC1000MΩ Min

Dielectric Strength:: 2000VAC

Electric life:: 50,000 cycles

Operating Temperature:: -20°C ~+55°C

Material:: Stainless Steel

Led Lamp Color:: Red/Green/Blue/White/Yellow/Orange

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 22X13X6 cm

Gross weight per batch:: 1.7 kg

Package Type:: GQ25F-11E Momentary Metal Pushbutton is 20pcs/box

Lead Time:

Quantity(Piece)	1 - 20000	>20000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	25mm Flat Stainless Steel 16A Arcade Push Button Water Value
Rating	5A 250VAC
Mounting Size	25mm
IP Class	IP67
Function	SPST 1NO 1NC
Led Lamp Color	Red/Green/Blue/White/Yellow/Orange

Products Show

GQ25F-11E

Specifications:
1. Rating: 5A 250VaC
2. Function: SPST 1NO 1NC
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:1000Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 50,000 Cycles

8. Operating Force: 5.5~7N

Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
